4-inch LF driver · CXE series · 25 mm voice coil · 50 W

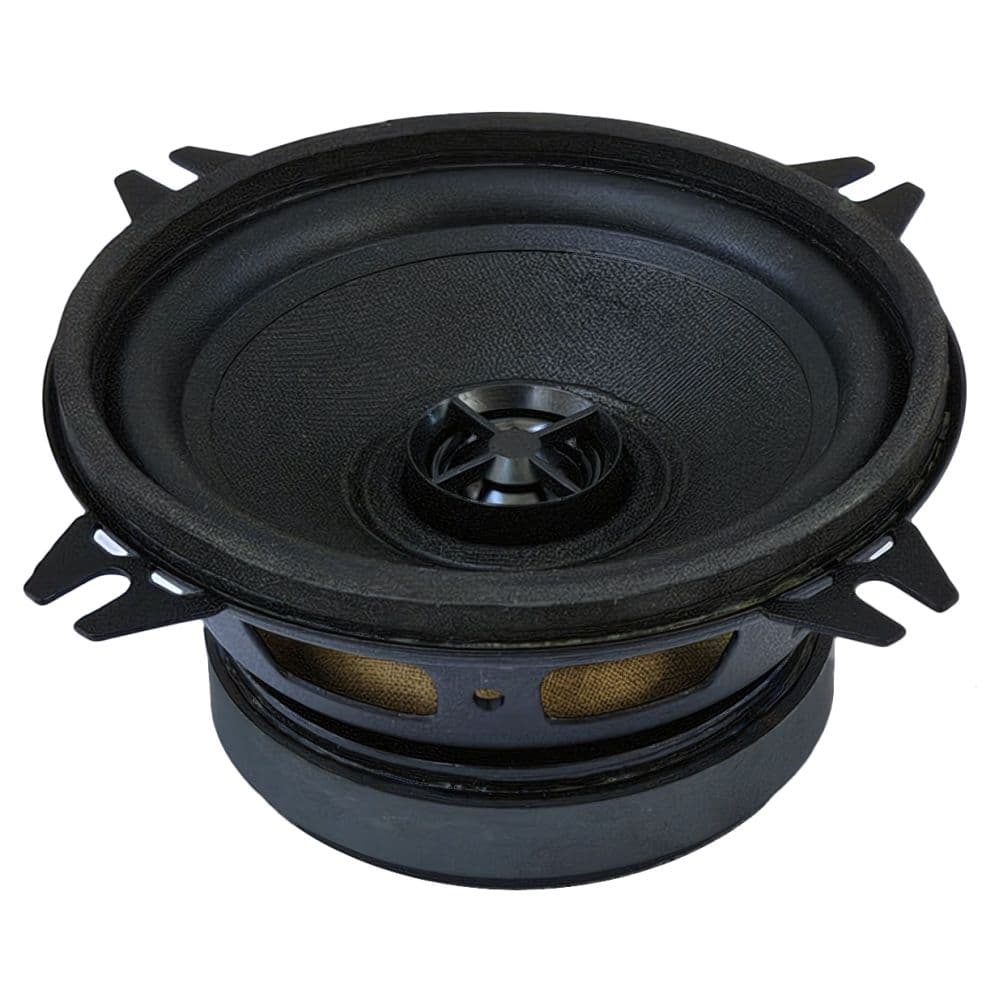

CIARE CXE104 4Ω

Name: CIARE CXE104 4 Ohm
Brand: CIARE
SKU: CXE104

4 Ω

No current price

View offers

Open in 00 Simulator

Fs: 119Hz
Xmax: 2.1mm
SPL: 87dB
Pe: 50W
BL: 3.0T·m
Vd: 11cm³
Qts: 0.93
Vas: 2L

See all 25 specs

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 ec4d992c4b5f…Medium confidence1,439 selected pixels of 1,439
Manufacturer datasheet, page 1
free air impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 ec4d992c4b5f…Medium confidence1,445 selected pixels of 1,445
Manufacturer datasheet, page 1

Specifications

Published by CIARE

Manufacturer page

Datasheet PDF

CIARE CXE104 is a 4-inch 4 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 119 Hz, Qts 0.93, Vas 2.4 L, Xmax 2.1 mm, sensitivity 87.2 dB, plus 11 cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 119Hz
Qts: 0.93
Qes: 1.21
Qms: 4.0
Vas: 2.4L
Re: 3.4Ω

Motor and cone

BL: 3.0T·m
Sd: 50cm²
Mms: 4g
Xmax: 2.1mm
Vd †: 11cm³
Voice coil: 25mm

Power and response

Sensitivity †: 87.2dB
Manufacturer sensitivity: 91dB
Power: 50W
Nominal power: 50W
Impedance: 4Ω
EBP †: 98 · Sealed or vented

Size and mounting

Diameter: 100.5mm
Cutout: 91mm
Bolt circle: 116mm
Depth: 47mm
Weight: 0.46kg

Other published values

Cms: 0.42mm/N
Power Program: 100

Sensitivity shows 87.2 dB, calculated from the T/S values. CIARE publishes 91.0 dB, 3.8 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 4″

BL: 3.0T·m
Fs: 119Hz
Re: 3.4Ω
Sd: 50cm²
Cms: 0.42mm/N
Mms: 4g
Qes: 1.21
Qms: 4.0
Qts: 0.93
SPL: 87.2dB
Vas: 2.4L
Xmax: 2.1mm
Power: 50W
Impedance: 4Ω
Sensitivity: 91dB
Nominal power: 50W
Power Program: 100
Calculated sensitivity †: 87.2dB
Manufacturer sensitivity: 91dB
Voice coil: 25mm
Weight: 0.46kg
Diameter: 100.5mm
Depth: 47mm
Cutout: 91mm
Bolt circle: 116mm

Compare

Same-size drivers, compared with the CXE104. Clear differences are green when better and red when worse.

This driverCXE104

Best price

–

119 Hz

Qts

0.93

Vas

2.4 L

3.0 T·m

Xmax

2.1 mm

Sensitivity

87.2 dB

Power

50 W

VisatonFR 10 HM

£8.42

Fs120 Hz –

Qts1.13 +22%

Vas2.1 L −12%

BL2.1 T·m −29%

Xmax2 mm −5%

Sensitivity86 dB −1.2

Dayton AudioPC83-4

£13.25

Fs80 Hz −33%

Qts0.54 −42%

Vas2.0 L −17%

BL2.9 T·m –

Xmax2 mm −5%

Sensitivity84 dB −3.2

PeerlessPLS-P830987

£14.81

Fs110 Hz −8%

Qts1 +8%

Vas1.0 L −58%

BL3.0 T·m –

Xmax3.4 mm +61%

Sensitivity82.4 dB −4.8

HiViB3S

£15.62

Fs80 Hz −33%

Qts0.93 –

Vas1.6 L −33%

BL2.9 T·m –

Xmax3 mm +43%

Sensitivity80.4 dB −6.8

HiViB3N

£15.62

Fs77 Hz −35%

Qts0.86 −8%

Vas1.7 L −29%

BL3.1 T·m +5%

Xmax3 mm +43%

Sensitivity80.6 dB −6.6

Sica4 D 0.8 CS

£16.08

Fs140 Hz +18%

Qts0.92 –

Vas1.2 L −50%

BL2.6 T·m −10%

Xmax1.3 mm −38%

Sensitivity86.5 dB −0.7

FaitalPRO4FE35

£16.09

Fs100 Hz −16%

Qts0.73 −22%

Vas2.4 L –

BL3 T·m –

Xmax1.7 mm −18%

Sensitivity86.3 dB −0.9

FaitalPRO3FE26

£19.04

Fs150 Hz +26%

Qts0.79 −15%

Vas0.9 L −62%

BL3.3 T·m +11%

Xmax2 mm −5%

Sensitivity86.4 dB −0.8

VisatonBG 13 P

£19.47

Fs168 Hz +41%

Qts1.04 +12%

Vas2 L −16%

BL3.2 T·m +8%

Xmax2 mm −5%

Sensitivity89.8 dB +2.6

LavoceFSF041.00

£20.45

Fs132 Hz +11%

Qts0.85 −9%

Vas1.6 L −34%

BL4.3 T·m +44%

Xmax2.2 mm +5%

Sensitivity87.3 dB –

VisatonSC 8 N

£21.87

Fs110 Hz −8%

Qts0.97 +4%

Vas1.5 L −37%

BL2.4 T·m −19%

Xmax3 mm +43%

Sensitivity83.9 dB −3.3

WavecorFR070WA04

£33.82

Fs114 Hz −4%

Qts0.87 −6%

Vas0.6 L −74%

BL2.9 T·m –

Xmax2 mm −5%

Sensitivity81.9 dB −5.3

WavecorFR070WA03

£33.82

Fs121 Hz –

Qts0.92 –

Vas0.54 L −77%

BL2.3 T·m −22%

Xmax2 mm −5%

Sensitivity81.9 dB −5.3

PRV Audio4MR60-NDY-4

£42.28

Fs96 Hz −20%

Qts0.85 −9%

Vas2.9 L +20%

BL2.8 T·m −5%

Xmax1.4 mm −33%

Sensitivity85.8 dB −1.4

WavecorFR090WA01

£61.79

Fs113 Hz −5%

Qts0.88 −5%

Vas1.1 L −55%

BL2.8 T·m −7%

Xmax2.3 mm +7%

Sensitivity83.8 dB −3.4

WavecorFR090WA02

£61.79

Fs109 Hz −8%

Qts0.85 −9%

Vas1.1 L −52%

BL3.4 T·m +15%

Xmax2.3 mm +7%

Sensitivity83.7 dB −3.5

WavecorFR084WA01

£62.38

Fs113 Hz −5%

Qts0.82 −12%

Vas1.1 L −55%

BL2.9 T·m –

Xmax2 mm −5%

Sensitivity84.1 dB −3.1

SEASH1658-04 MU10RB-SL

£74.42

Fs100 Hz −16%

Qts0.67 −28%

Vas1.1 L −54%

BL2.9 T·m –

Xmax2 mm −5%

Sensitivity81.8 dB −5.4

SEASH1600-04 FU10RB

£84.60

Fs102 Hz −14%

Qts0.91 –

Vas1 L −58%

BL2.7 T·m −8%

Xmax2 mm −5%

Sensitivity81.2 dB −6

SEASH1600-08 FU10RB

£84.60

Fs102 Hz −14%

Qts0.96 +3%

Vas1 L −58%

BL3.6 T·m +20%

Xmax2 mm −5%

Sensitivity81 dB −6.2

B&C5NSM38

£110.89

Fs320 Hz +169%

Qts0.94 –

Vas0.4 L −83%

BL11.7 T·m +295%

Xmax2.2 mm +5%

Sensitivity92.5 dB +5.3

CIARECW100Z

No current price

Fs107 Hz −10%

Qts0.78 −16%

Vas1.9 L −20%

BL3.0 T·m –

Xmax2.1 mm –

Sensitivity85.3 dB −1.9

CIARECW130Z

No current price

Fs75 Hz −37%

Qts0.81 −13%

Vas6.5 L +173%

BL3.0 T·m –

Xmax2.1 mm –

Sensitivity85.8 dB −1.4

WavecorFR084OM01

No current price

Fs115 Hz −3%

Qts0.92 –

Vas1.1 L −55%

BL2.8 T·m −7%

Xmax2.3 mm +7%

Sensitivity84.1 dB −3.1

VisatonBG 13 P - 8 Ohm

No current price

Fs168 Hz +41%

Qts1.04 +12%

Vas2 L −16%

BL3.2 T·m +8%

Xmax2 mm −5%

Sensitivity89.8 dB +2.6

WavecorFR084OM02

No current price

Fs117 Hz –

Qts1.06 +14%

Vas1.1 L −55%

BL3.4 T·m +15%

Xmax2.3 mm +7%

Sensitivity83.6 dB −3.6

WavecorFR070OM02

No current price

Fs120 Hz –

Qts1 +8%

Vas0.6 L −75%

BL2.9 T·m –

Xmax2.5 mm +19%

Sensitivity81.9 dB −5.3

PeerlessTC8FD00-08

No current price

Fs130 Hz +9%

Qts0.96 +3%

Vas1.0 L −57%

BL3.1 T·m +6%

Xmax3.4 mm +62%

Sensitivity84.4 dB −2.8

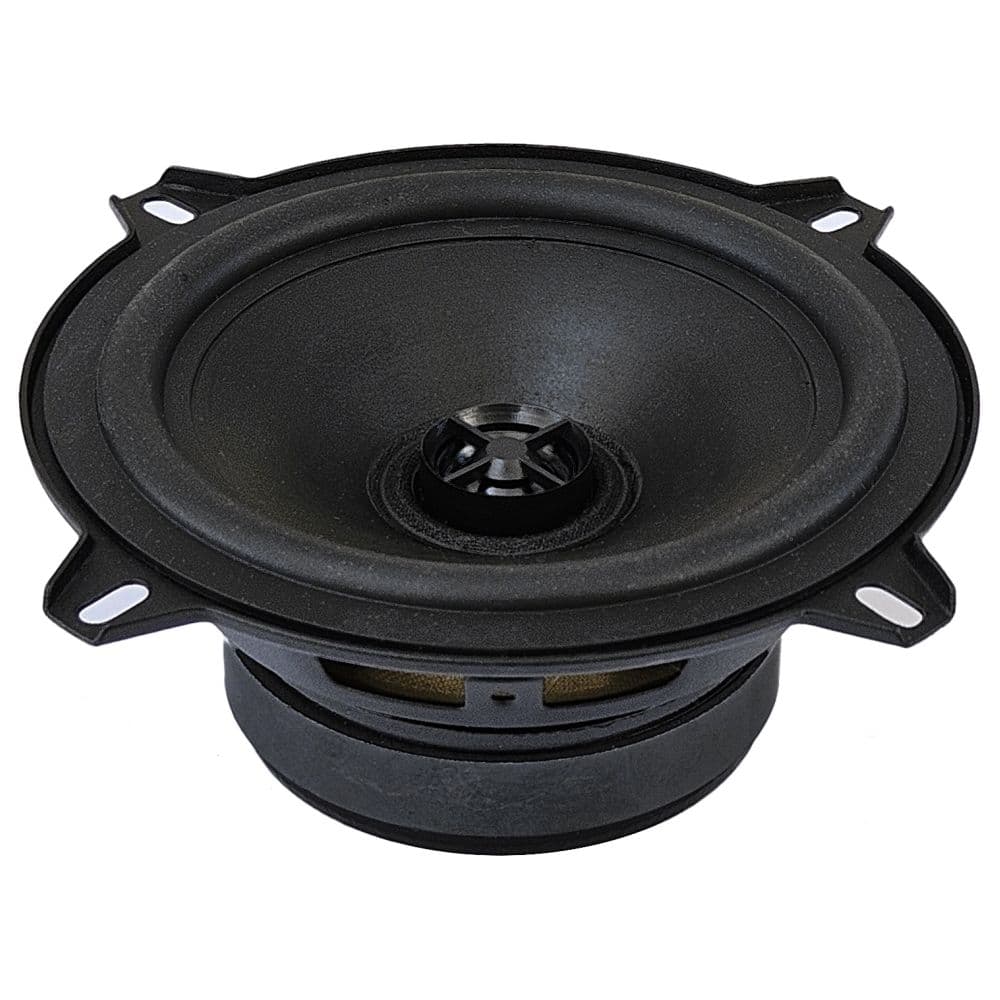

CIARECXE134
