CIARE CW130Z 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE

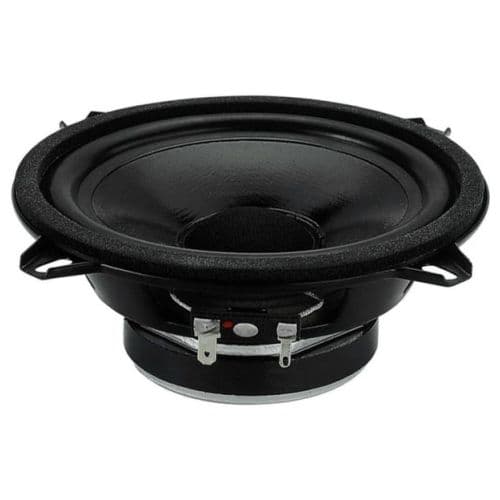

CIARE CW130Z
CIARE CW130Z is a 5" 4 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 75Hz, Qts 0.81, Vas 6.5L, Xmax 2.1mm, sensitivity 85.8dB, plus 17cm³ Vd and 65 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
100W
Sensitivity
85.8dB
88.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
65
Either alignment
Vd
17cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,650 selected pixels of 1,899
T/S Parameters
Valid
Fs75Hz
Qts0.81
Qes1.15
Qms2.7
Vas6.5L
Re3.5Ω
BL3.0Tm
Sd82cm²
Mms6g
Xmax2.1mm
SPL86dB
Power100W
Power Nominal50W
Impedance4Ω
F Low55Hz
F High55Hz
Voice Coil25mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£15.47
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter129.5mm
Overall Depth55.0mm
Cutout Diameter112.0mm
Bolt Circle Diameter140.0mm
