4-inch LF driver · SB12 series · 25 mm voice coil · 50 W
SB Acoustics SB12MNRX25-4 4Ω
4 Ω
£52.93
SteadySoundImports · 2 in stock · Ships from Netherlands · All 3 offers
- Fs
- 58Hz
- Xmax
- 2.3mm
- SPL
- 86dB
- Pe
- 50W
- BL
- 3.7T·m
- Vd
- 11cm³
- Qts
- 0.37
- Vas
- 6L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
30 degrees
Frequency response
240 plotted pointsSource file SHA-256 4397cb5fb0c7…Medium confidence2,687 selected pixels of 4,149 - Trace datasheet-response-trace-poc/v2
60 degrees
Frequency response
240 plotted pointsSource file SHA-256 4397cb5fb0c7…Medium confidence1,782 selected pixels of 2,992 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 4397cb5fb0c7…Medium confidence2,789 selected pixels of 8,408

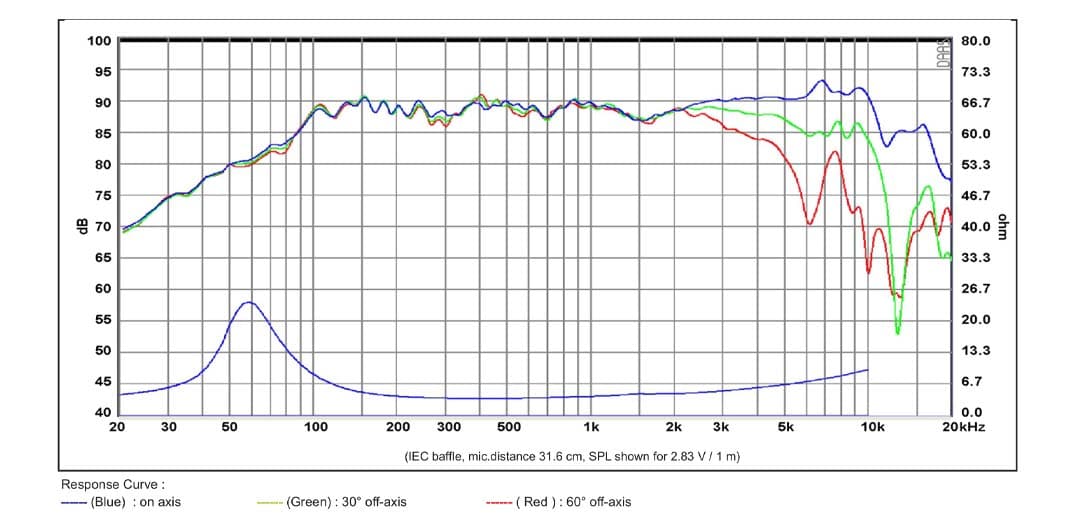

Published graphs
SB Acoustics SB12MNRX25-4 is a 4-inch 4 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.37, Vas 5.5 L, Xmax 2.3 mm, sensitivity 86.1 dB, plus 11 cm³ Vd and 138 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £52.93.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.37
- Qes
- 0.42
- Qms
- 3.6
- Vas
- 5.5L
- Re
- 3.2Ω
- Le
- 0.14mH
Motor and cone
- BL
- 3.7T·m
- Sd
- 50cm²
- Mms
- 5g
- Xmax
- 2.3mm
- Vd †
- 11cm³
- Voice coil
- 25mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 86.1dB
- Manufacturer sensitivity
- 88.5dB
- Power
- 50W
- Impedance
- 4Ω
- EBP †
- 138 · Leans vented
Size and mounting
- Weight
- 0.85kg
Other published values
- Cms
- 1.55mm/N
Sensitivity shows 86.1 dB, calculated from the T/S values. SB Acoustics publishes 88.5 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 4″
- BL
- 3.7T·m
- Fs
- 58Hz
- Le
- 0.14mH
- Re
- 3.2Ω
- Sd
- 50cm²
- Cms
- 1.55mm/N
- Mms
- 5g
- Qes
- 0.42
- Qms
- 3.6
- Qts
- 0.37
- SPL
- 86.1dB
- Vas
- 5.5L
- Xmax
- 2.3mm
- Power
- 50W
- Impedance
- 4Ω
- Flux density
- 0.90T
- Sensitivity
- 88.5dB
- Calculated sensitivity †
- 86.1dB
- Manufacturer sensitivity
- 88.5dB
- Voice coil
- 25mm
- Weight
- 0.85kg
