4-inch LF driver · SB12 series · 25 mm voice coil · 30 W
SB Acoustics SB12PFCR25-4-COAX 4Ω
4 Ω
£41.40
SteadyLean Audio · 2 in stock · All 4 offers
- Fs
- 58Hz
- Xmax
- 5mm
- SPL
- 86dB
- Pe
- 30W
- BL
- 3.8T·m
- Vd
- 23cm³
- Qts
- 0.33
- Vas
- 5L

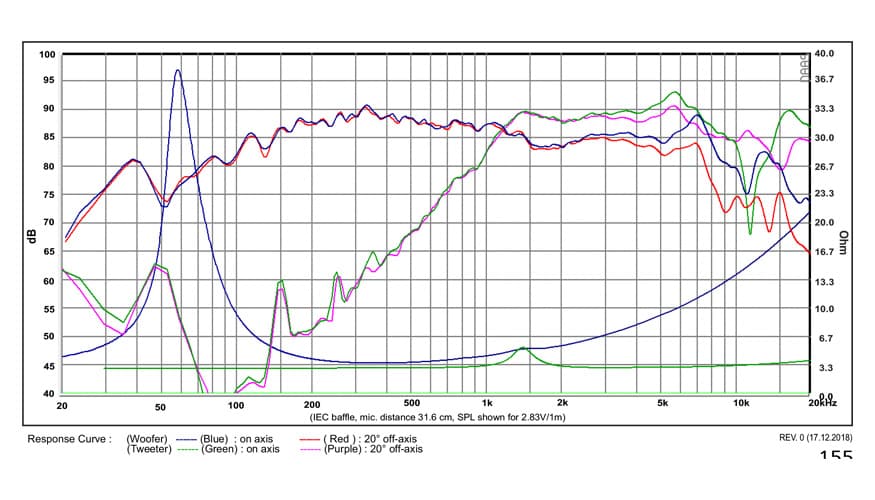

Published graphs
SB Acoustics SB12PFCR25-4-COAX is a 4-inch 4 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.33, Vas 4.8 L, Xmax 5 mm, sensitivity 86.2 dB, plus 23 cm³ Vd and 161 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £41.40.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.33
- Qes
- 0.36
- Qms
- 4.1
- Vas
- 4.8L
- Re
- 3.1Ω
- Le
- 0.26mH
Motor and cone
- BL
- 3.8T·m
- Sd
- 45cm²
- Mms
- 5g
- Xmax
- 5mm
- Vd †
- 23cm³
- Voice coil
- 25mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 86.2dB
- Manufacturer sensitivity
- 87dB
- Power
- 30W
- Impedance
- 4Ω
- EBP †
- 161 · Leans vented
Size and mounting
- Weight
- 0.9kg
Other published values
- Cms
- 1.66mm/N
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 4″
- BL
- 3.8T·m
- Fs
- 58Hz
- Le
- 0.26mH
- Re
- 3.1Ω
- Sd
- 45cm²
- Cms
- 1.66mm/N
- Mms
- 5g
- Qes
- 0.36
- Qms
- 4.1
- Qts
- 0.33
- SPL
- 86.2dB
- Vas
- 4.8L
- Xmax
- 5mm
- Power
- 30W
- Impedance
- 4Ω
- Flux density
- 1T
- Sensitivity
- 87dB
- Calculated sensitivity †
- 86.2dB
- Manufacturer sensitivity
- 87dB
- Voice coil
- 25mm
- Weight
- 0.9kg
