Overview
LF DriverMW13 series
SB Acoustics
SB Acoustics MW13TX-8
SB Acoustics MW13TX-8 is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 40Hz, Qts 0.32, Vas 14.8L, Xmax 10mm, sensitivity 86.5dB, plus 70cm³ Vd and 118 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £233.59.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
86.5dB
EBP
118
Vented alignment
Vd
70cm³

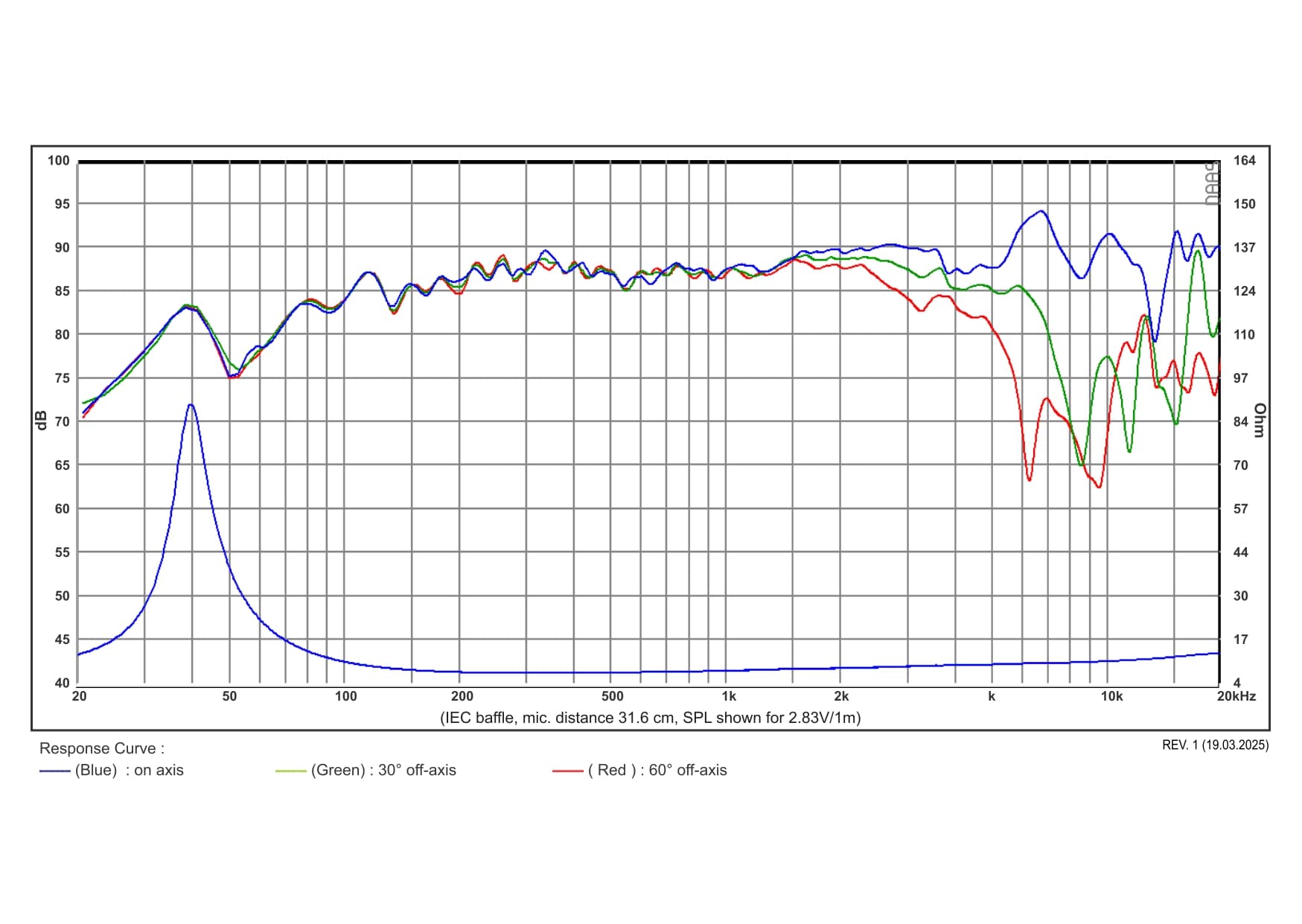

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,407 selected pixels of 3,216 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,015 selected pixels of 2,638
T/S Parameters
Valid
Fs40Hz
Qts0.32
Qes0.34
Qms5.0
Vas14.8L
Re6.0Ω
Le0.18mH
BL5.7Tm
Sd70cm²
Mms7g
Xmax10.0mm
SPL87dB
Power40W
Impedance8Ω
Voice Coil31mm
Flux Density1.08T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorssoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£236.23
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£266.95
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£233.59
Avg £250.27£16.68 below avg (-6.7%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
