SB Acoustics MW13PNW-4 4Ω
4 Ω
£139.69
SteadyLean Audio · 2 in stock · All 6 offers
- Fs
- 41Hz
- Xmax
- 5mm
- SPL
- 87dB
- Pe
- 40W
- BL
- 4.9T·m
- Vd
- 35cm³
- Qts
- 0.27
- Vas
- 15L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,082 selected pixels of 6,763 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence971 selected pixels of 1,918

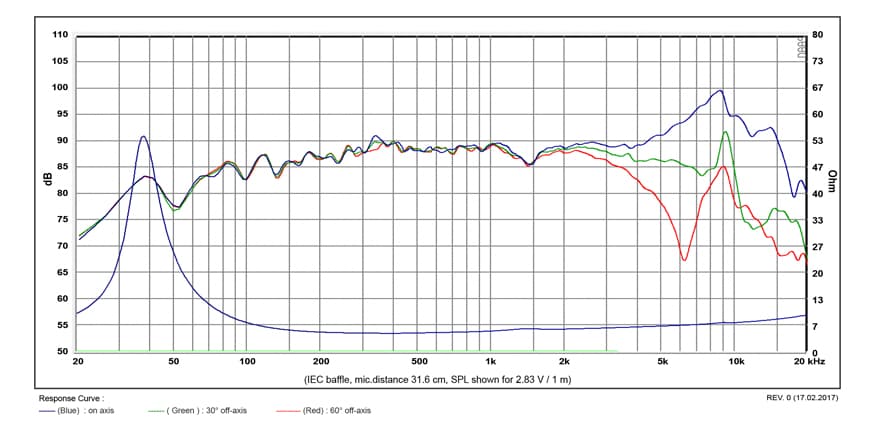

Published graphs
SB Acoustics MW13PNW-4 is a 5-inch 4 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 41 Hz, Qts 0.27, Vas 14.6 L, Xmax 5 mm, sensitivity 87.4 dB, plus 35 cm³ Vd and 141 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £139.69.
The published T/S values agree with each other
Thiele/Small
- Fs
- 41Hz
- Qts
- 0.27
- Qes
- 0.29
- Qms
- 3.7
- Vas
- 14.6L
- Re
- 3.8Ω
- Le
- 0.13mH
Motor and cone
- BL
- 4.9T·m
- Sd
- 70cm²
- Mms
- 7g
- Xmax
- 5mm
- Vd †
- 35cm³
- Voice coil
- 31mm
- Flux density
- 1.08T
Power and response
- Sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 89dB
- Power
- 40W
- Impedance
- 4Ω
- EBP †
- 141 · Leans vented
Size and mounting
- Weight
- 0.8kg
Other published values
- Cms
- 2.09mm/N
Sensitivity shows 87.4 dB, calculated from the T/S values. SB Acoustics publishes 89.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 5″
- BL
- 4.9T·m
- Fs
- 41Hz
- Le
- 0.13mH
- Re
- 3.8Ω
- Sd
- 70cm²
- Cms
- 2.09mm/N
- Mms
- 7g
- Qes
- 0.29
- Qms
- 3.7
- Qts
- 0.27
- SPL
- 87.4dB
- Vas
- 14.6L
- Xmax
- 5mm
- Power
- 40W
- Impedance
- 4Ω
- Flux density
- 1.08T
- Sensitivity
- 89dB
- Calculated sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 89dB
- Voice coil
- 31mm
- Weight
- 0.8kg
