LF Driver
Eighteen Sound
Eighteen Sound 5W430
Eighteen Sound 5W430 is a 5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 52Hz, Qts 0.32, Vas 15L, Xmax 6mm, sensitivity 89.7dB, plus 54cm³ Vd and 144 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £44.95.
Size
5"
Impedance
8Ω
RMS Power
80W
Sensitivity
89.7dB
EBP
144
Vented alignment
Vd
54cm³

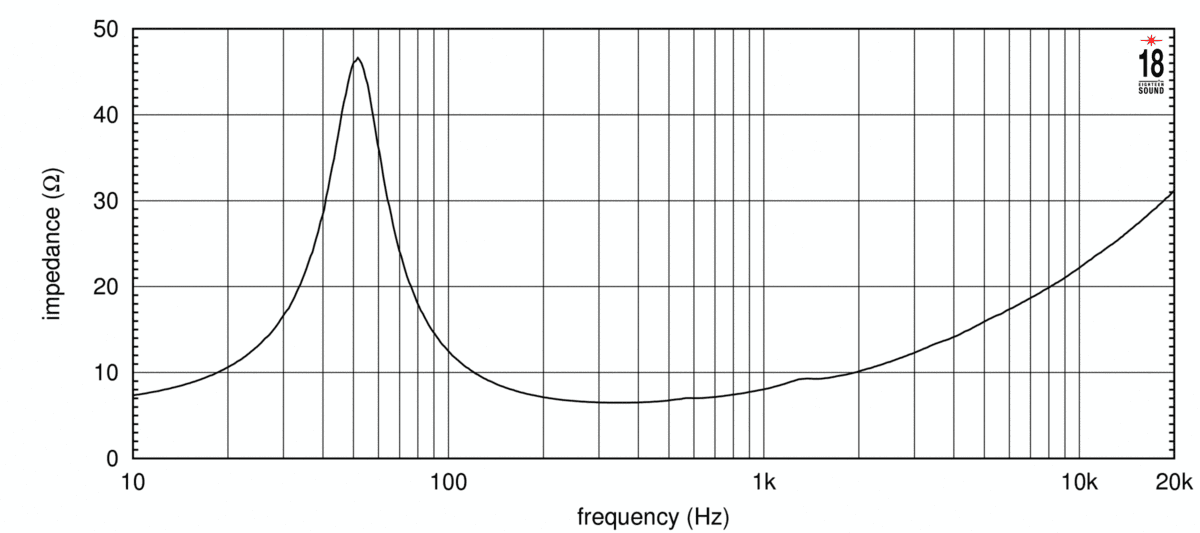

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

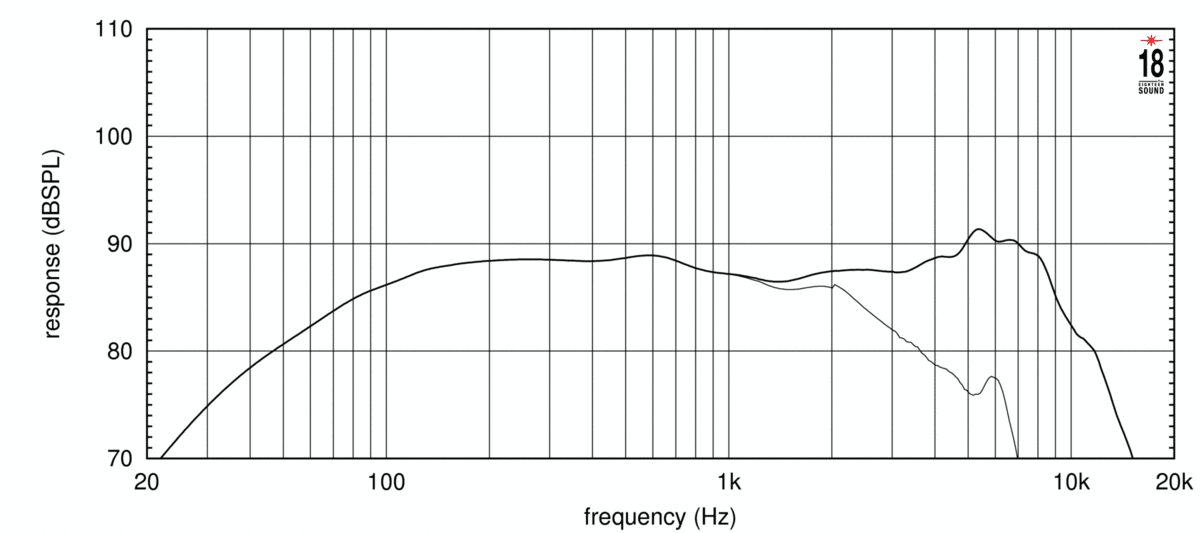

frequency response
Frequency response
240 plotted pointsMedium confidence8,414 selected pixels of 8,414
T/S Parameters
Valid
Fs52Hz
Qts0.32
Qes0.36
Qms2.8
Vas15.0L
Re5.4Ω
Le0.49mH
BL6.3Tm
Sd90cm²
Mms8g
Xmax6.0mm
SPL90dB
Power80W
Power Nominal80W
Impedance8Ω
F Low60Hz
F High8000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£44.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Diameter134.0mm
Overall Depth72.0mm
Cutout Diameter124.0mm
Bolt Circle Diameter140.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
5W430
5"
Best current price
£44.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
38% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm-18%
Qts0.38+19%
BL6.2Tm-1%
Vas7.9L-47%
Qes0.47+31%
46%
Similarity
38% cheaper£27.70
Dayton Audio
DS135-8
5"
Lower price
Xmax4.8mm-19%
Qts0.39+22%
BL6.2Tm-1%
Vas7.3L-52%
Qes0.48+33%
30%
Similarity
49% more£66.95
Scanspeak
15W/8434G00
6"
Higher price
Xmax4.2mm-30%
Qts0.25-22%
BL7.3Tm+16%
Vas12.8L-15%
Qes0.27-25%
77%
Similarity
73% more£77.96
CIARE
HWG130
5"
Higher price
Xmax6.5mm+8%
Qts0.34+6%
BL5Tm-21%
Vas12.5L-17%
Qes0.360%
Image unavailable
54%
Similarity
118% more£98.11
Wavecor
WF152BD13
6"
Higher price
Xmax4.5mm-25%
Qts0.33+3%
BL6.3Tm+1%
Vas9.2L-39%
Qes0.34-6%
64%
Similarity
129% more£103.00
CIARE
HWG130
5"
Higher price
Xmax6.5mm+8%
Qts0.28-12%
BL7.8Tm+24%
Vas12.5L-17%
Qes0.3-17%
Image unavailable
48%
Similarity
145% more£110.10
Wavecor
WF152BD09
6"
Higher price
Xmax4.5mm-25%
Qts0.34+6%
BL5.8Tm-8%
Vas8.6L-43%
Qes0.35-3%
86%
Similarity
156% more£115.00
SB Acoustics
MR13PNW-8
5"
Higher price
Xmax6mm0%
Qts0.3-6%
BL6.2Tm-2%
Vas12.9L-14%
Qes0.32-11%
88%
Similarity
202% more£135.77
SB Acoustics
MR13P-8
5"
Higher price
Xmax6mm0%
Qts0.31-3%
BL6.1Tm-3%
Vas12.5L-17%
Qes0.33-8%
54%
Similarity
314% more£185.95
Scanspeak
15W/8531K00
6"
Higher price
Xmax6.5mm+8%
Qts0.38+19%
BL6.6Tm+5%
Vas16.7L+11%
Qes0.42+17%
52%
Similarity
320% more£188.95
Scanspeak
15W/8530K00
6"
Higher price
Xmax6.5mm+8%
Qts0.39+22%
BL6.6Tm+5%
Vas16L+7%
Qes0.43+19%
70%
Similarity
329% more£192.95
Scanspeak
15W/4531G00
6"
Higher price
Xmax6.5mm+8%
Qts0.320%
BL5.7Tm-10%
Vas15.8L+5%
Qes0.34-6%
