LF DriverMR13 series
SB Acoustics
SB Acoustics MR13PNW-8
SB Acoustics MR13PNW-8 is a 5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 47Hz, Qts 0.30, Vas 12.9L, Xmax 6mm, sensitivity 88.2dB, plus 42cm³ Vd and 147 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £115.00.
Size
5"
Impedance
8Ω
RMS Power
30W
Sensitivity
88.2dB
EBP
147
Vented alignment
Vd
42cm³

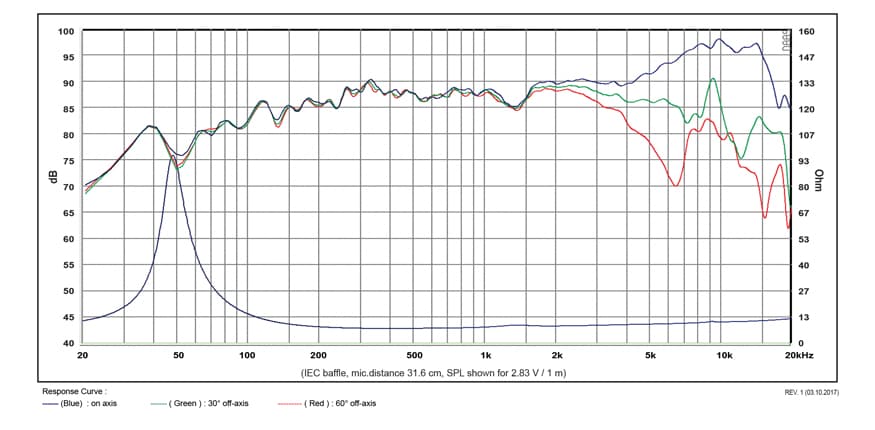

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,326 selected pixels of 7,163 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence880 selected pixels of 2,275
T/S Parameters
Valid
Fs47Hz
Qts0.30
Qes0.32
Qms4.6
Vas12.9L
Re6.8Ω
Le0.11mH
BL6.2Tm
Sd70cm²
Mms6g
Xmax6.0mm
SPL88dB
Power30W
Impedance8Ω
Voice Coil31mm
Flux Density1.08T
Pricing & availability
Price definitionsPrice movement
Best current price
£115.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
