4-inch LF driver · PTT series · 30 mm voice coil

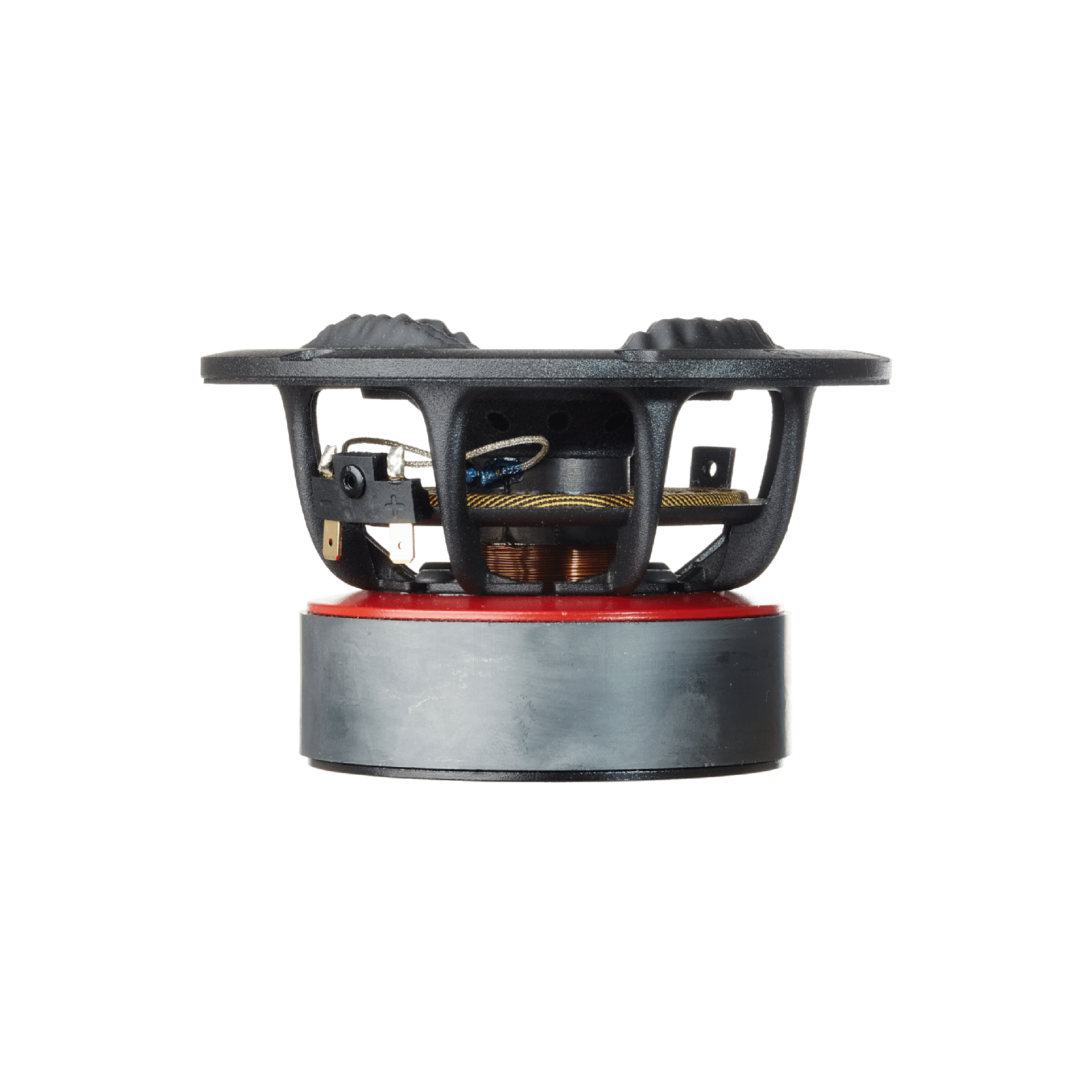

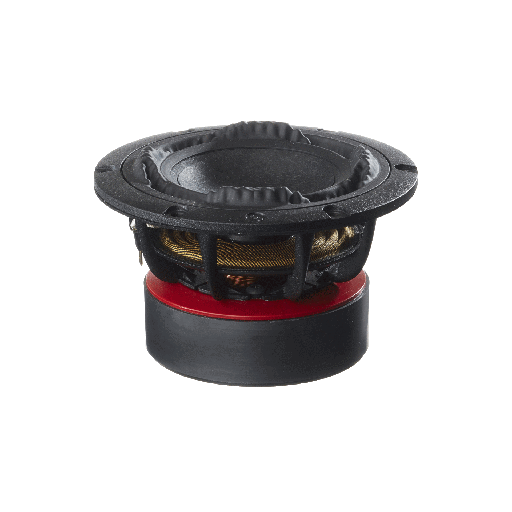

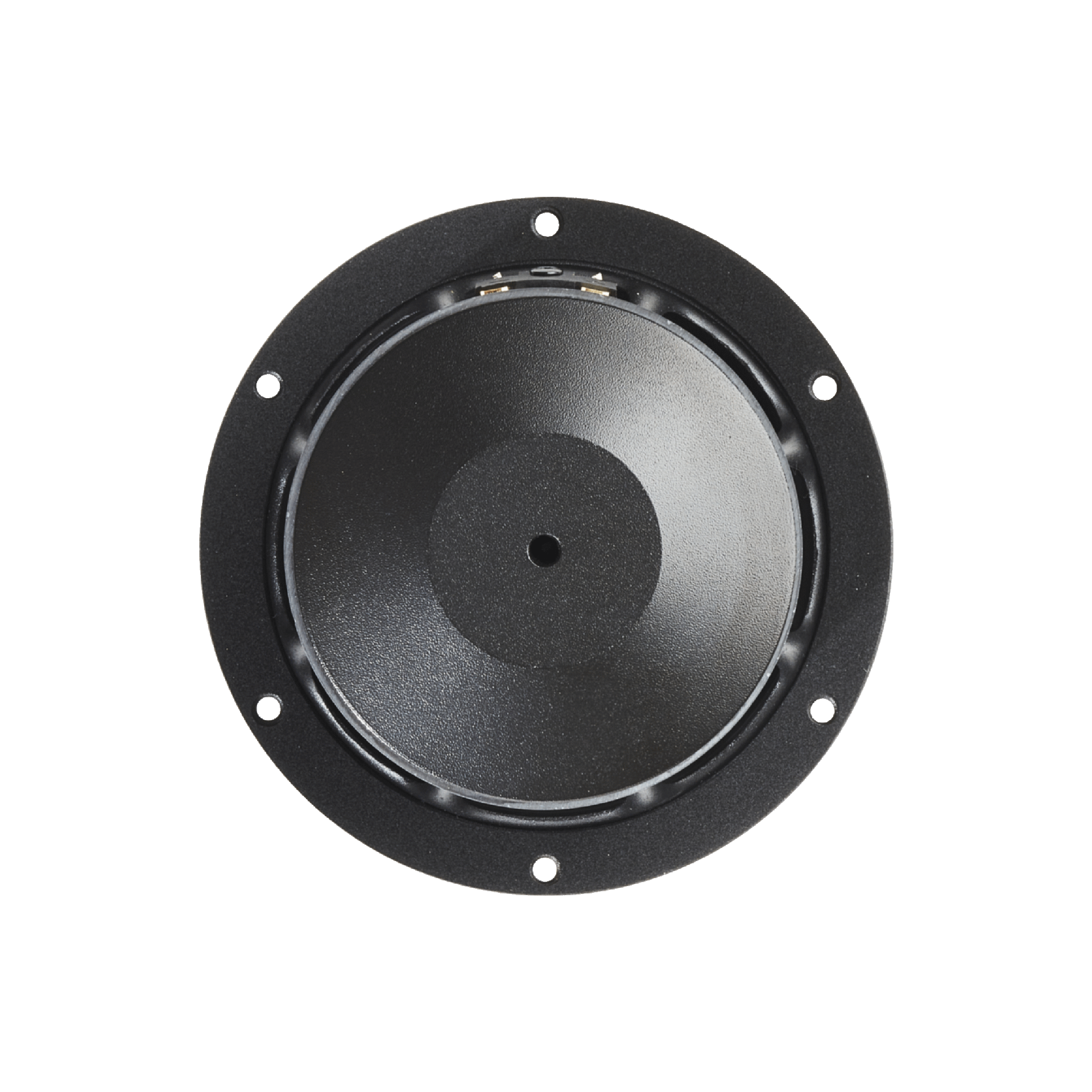

Purifi PTT4.0M08-NFC-01 8Ω
8 Ω
No current price
- Fs
- 48Hz
- Xmax
- 2.9mm
- SPL
- 85dB
- Pe
- –
- BL
- 7T·m
- Vd
- 16cm³
- Qts
- 0.31
- Vas
- 5L
Purifi PTT4.0M08-NFC-01 is a 4-inch 8 ohm LF driver. The validated T/S data includes Fs 48 Hz, Qts 0.31, Vas 5.3 L, Xmax 2.9 mm, sensitivity 84.5 dB, plus 16 cm³ Vd and 145 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 5
- Vas
- 5.3L
- Re
- 5.8Ω
- Le
- 0.37mH
Motor and cone
- BL
- 7T·m
- Sd
- 57cm²
- Mms
- 9g
- Xmax
- 2.9mm
- Vd †
- 16cm³
- Voice coil
- 30mm
Power and response
- Sensitivity †
- 84.5dB
- Manufacturer sensitivity
- 85.4dB
- Impedance
- 8Ω
- Min. impedance
- 6Ω
- EBP †
- 145 · Leans vented
Size and mounting
- Diameter
- 125mm
- Cutout
- 101mm
- Bolt circle
- 115mm
- Weight
- 1.3kg
Other published values
- Cms
- 1.17mm/N
- Rms
- 0.57kg/s
- Xmech
- 13.7
Other dimensions
- Mounting Depth
- 73.5
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
MF · Primary · 4″
- BL
- 7T·m
- Fs
- 48Hz
- Le
- 0.37mH
- Re
- 5.8Ω
- Sd
- 57cm²
- Cms
- 1.17mm/N
- Mms
- 9g
- Qes
- 0.33
- Qms
- 5
- Qts
- 0.31
- Rms
- 0.57kg/s
- SPL
- 84.5dB
- Vas
- 5.3L
- Xmax
- 2.9mm
- Xmech
- 13.7
- Impedance
- 8Ω
- Sensitivity
- 85.4dB
- Calculated sensitivity †
- 84.5dB
- Manufacturer sensitivity
- 85.4dB
- Min. impedance
- 6Ω
- Voice coil
- 30mm
- Weight
- 1.3kg
- Diameter
- 125mm
- Mounting Depth
- 73.5
- Cutout
- 101mm
- Bolt circle
- 115mm
