LF DriverPTT series
Purifi

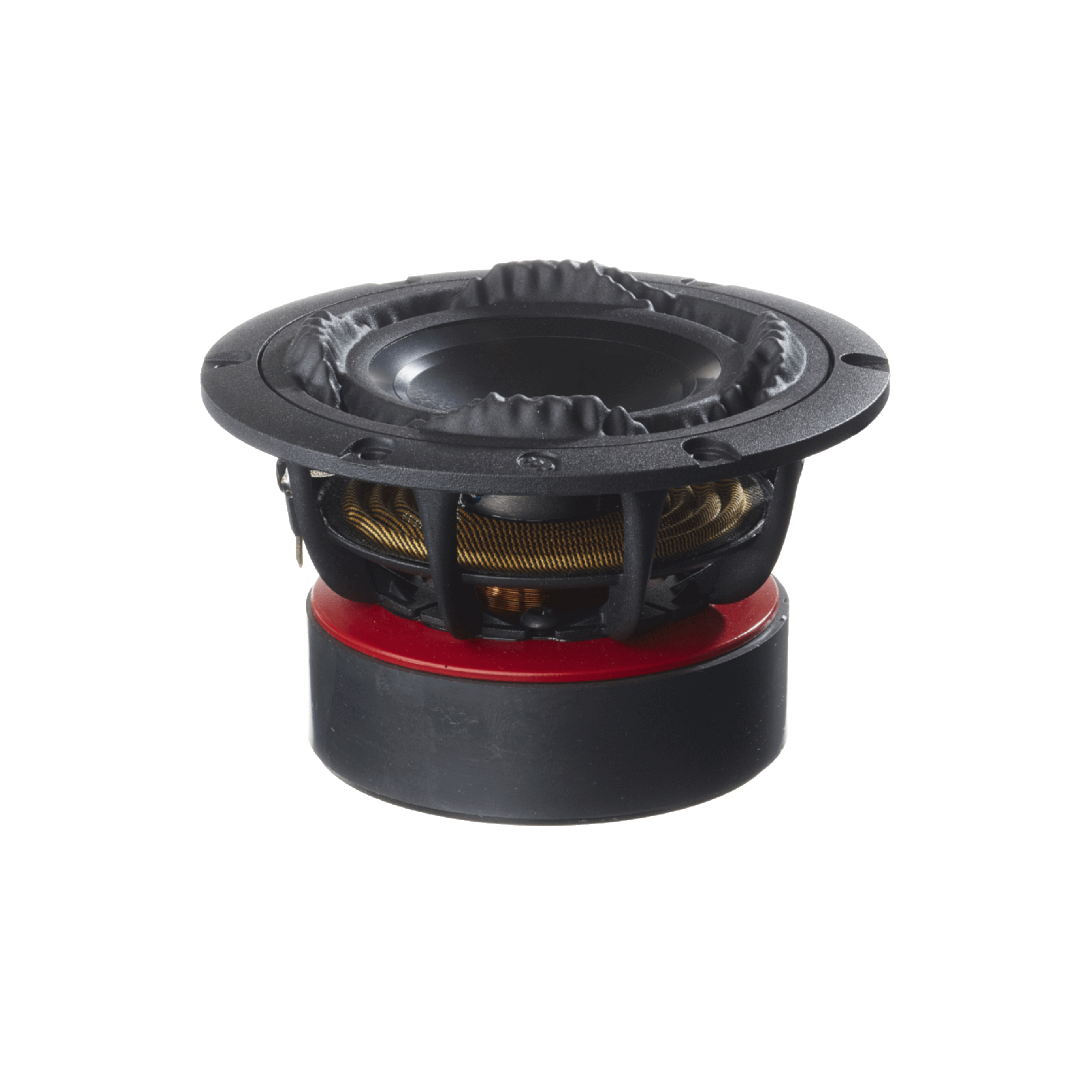

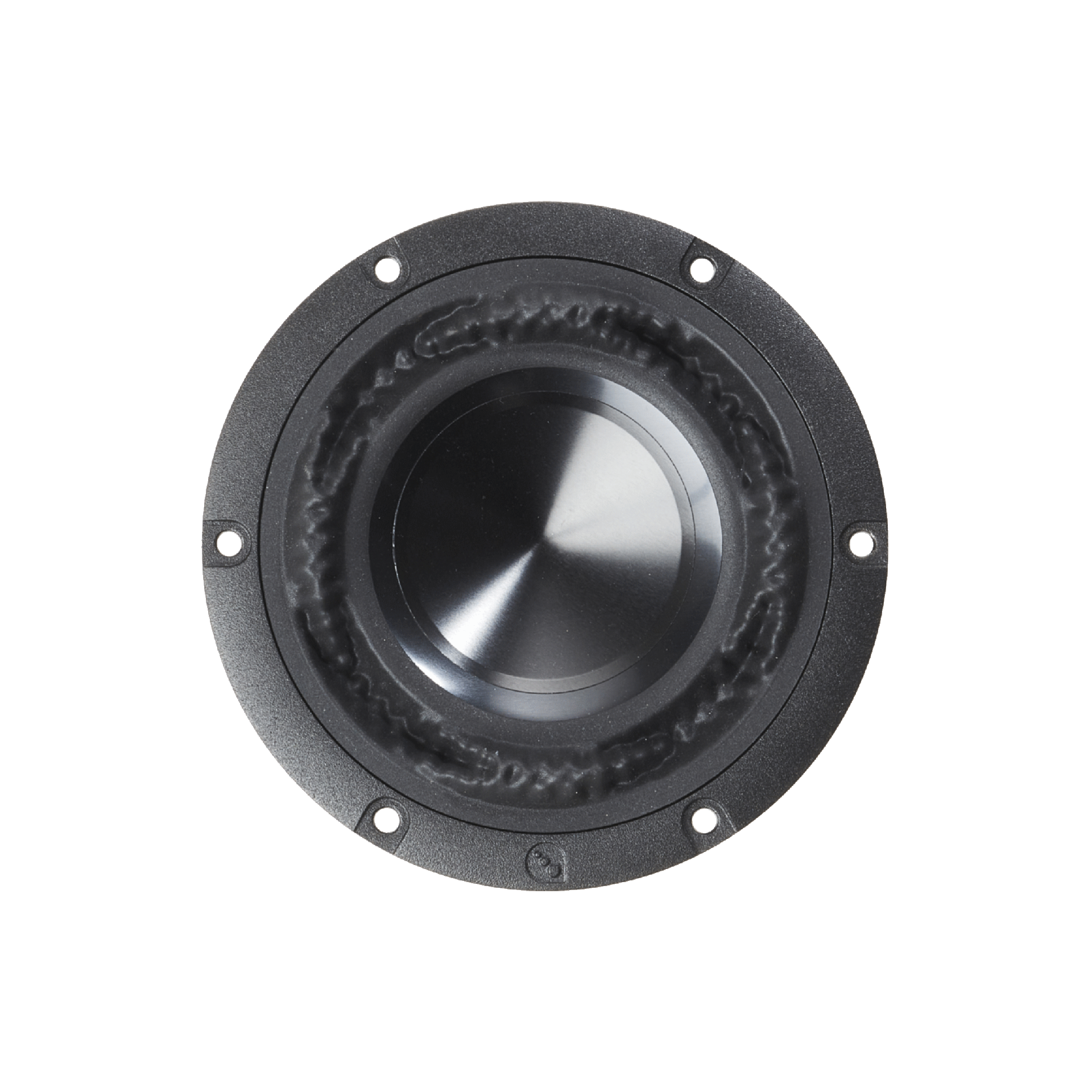

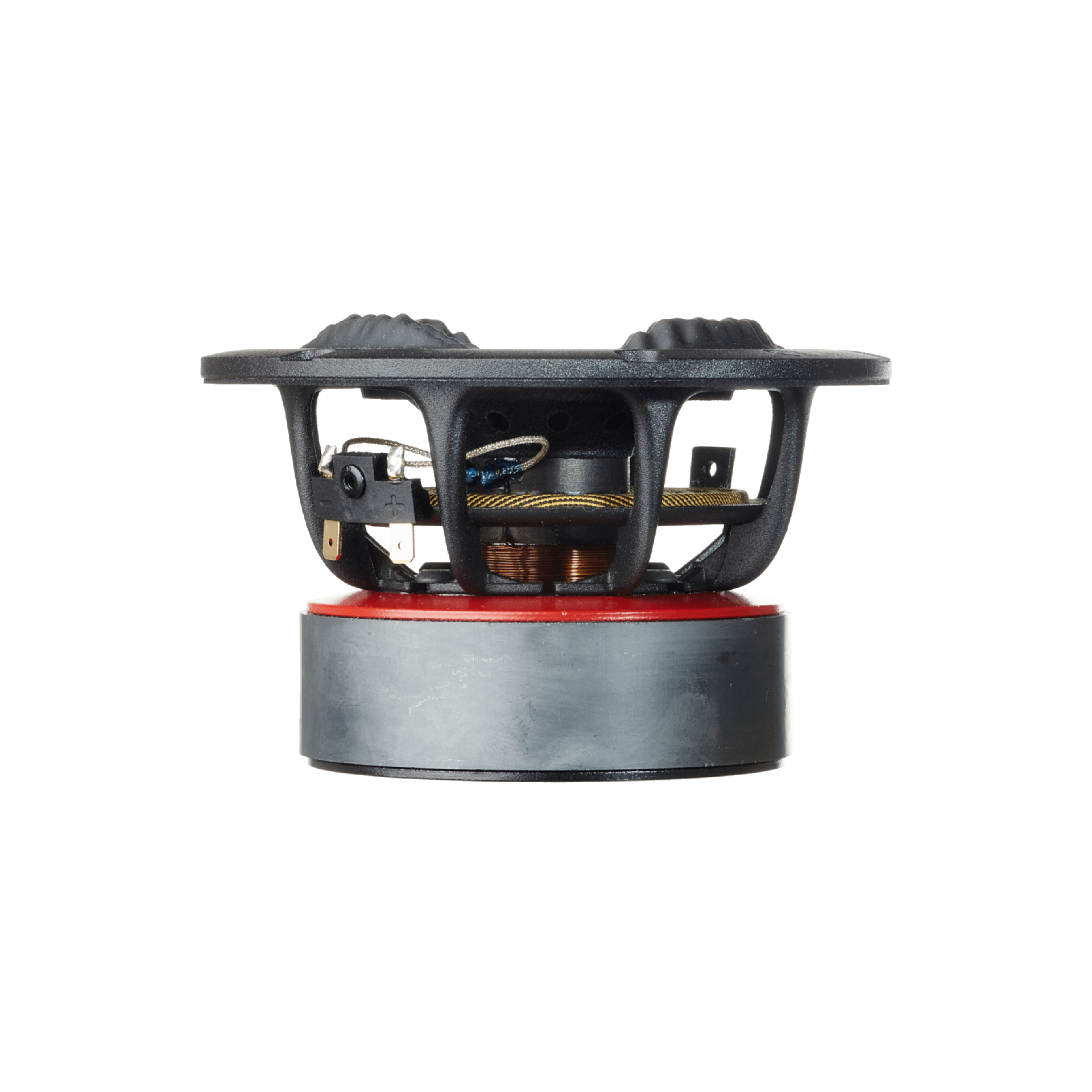

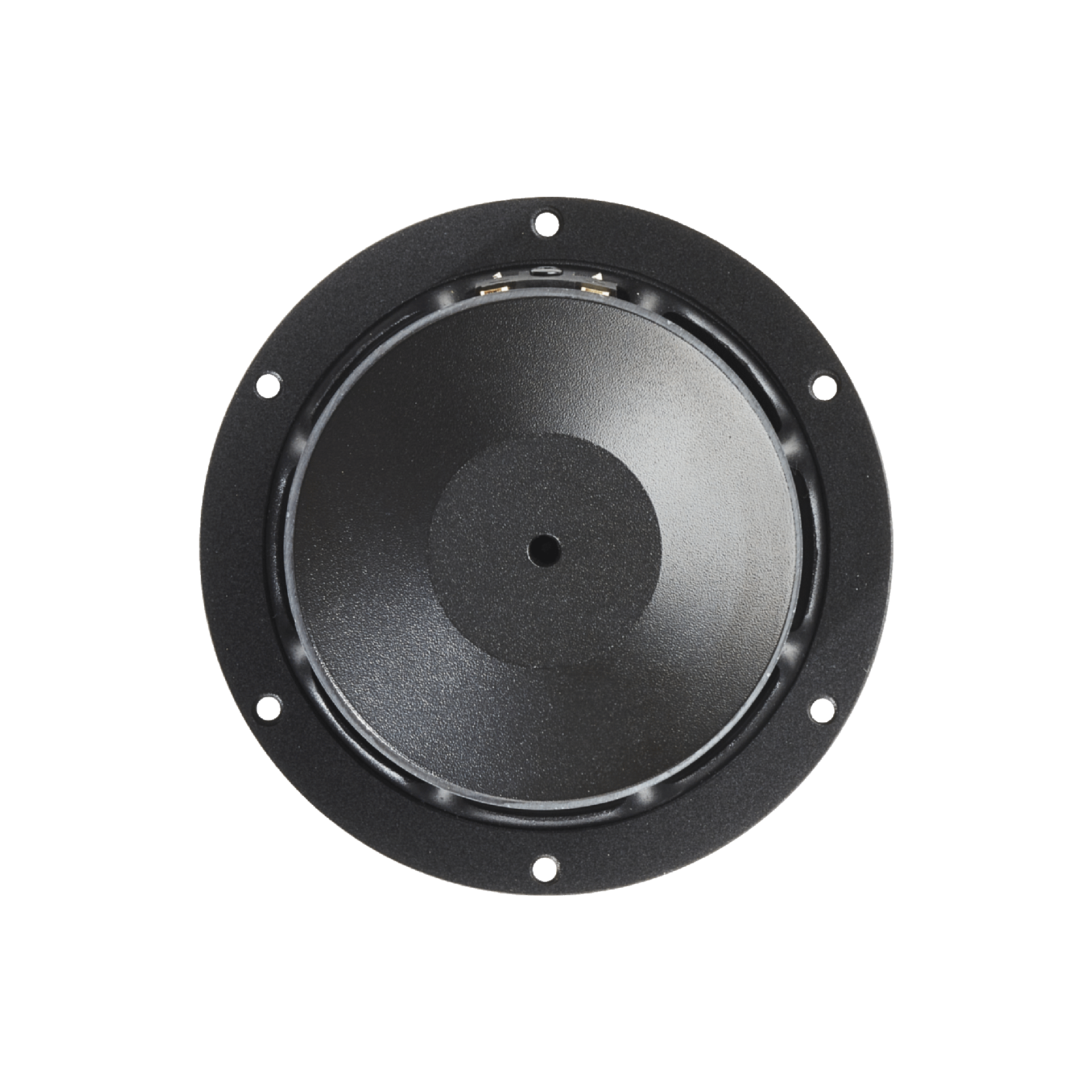

Purifi PTT4.0X04-NAC-03
Purifi PTT4.0X04-NAC-03 is a 4" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 40Hz, Qts 0.31, Vas 5.5L, Xmax 8.8mm, sensitivity 82.2dB, plus 50cm³ Vd and 118 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
60W
Sensitivity
82.2dB
83.9dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
118
Vented alignment
Vd
50cm³
T/S Parameters
Valid
Fs40Hz
Qts0.31
Qes0.34
Qms3.8
Vas5.5L
Re3.8Ω
Le0.38mH
BL6.1Tm
Sd57cm²
Mms13g
Xmax8.8mm
SPL82dB
Power60W
Impedance4Ω
Min Impedance4.4Ω
Voice Coil30mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter125.0mm
Cutout Diameter101.0mm
Bolt Circle Diameter115.0mm
