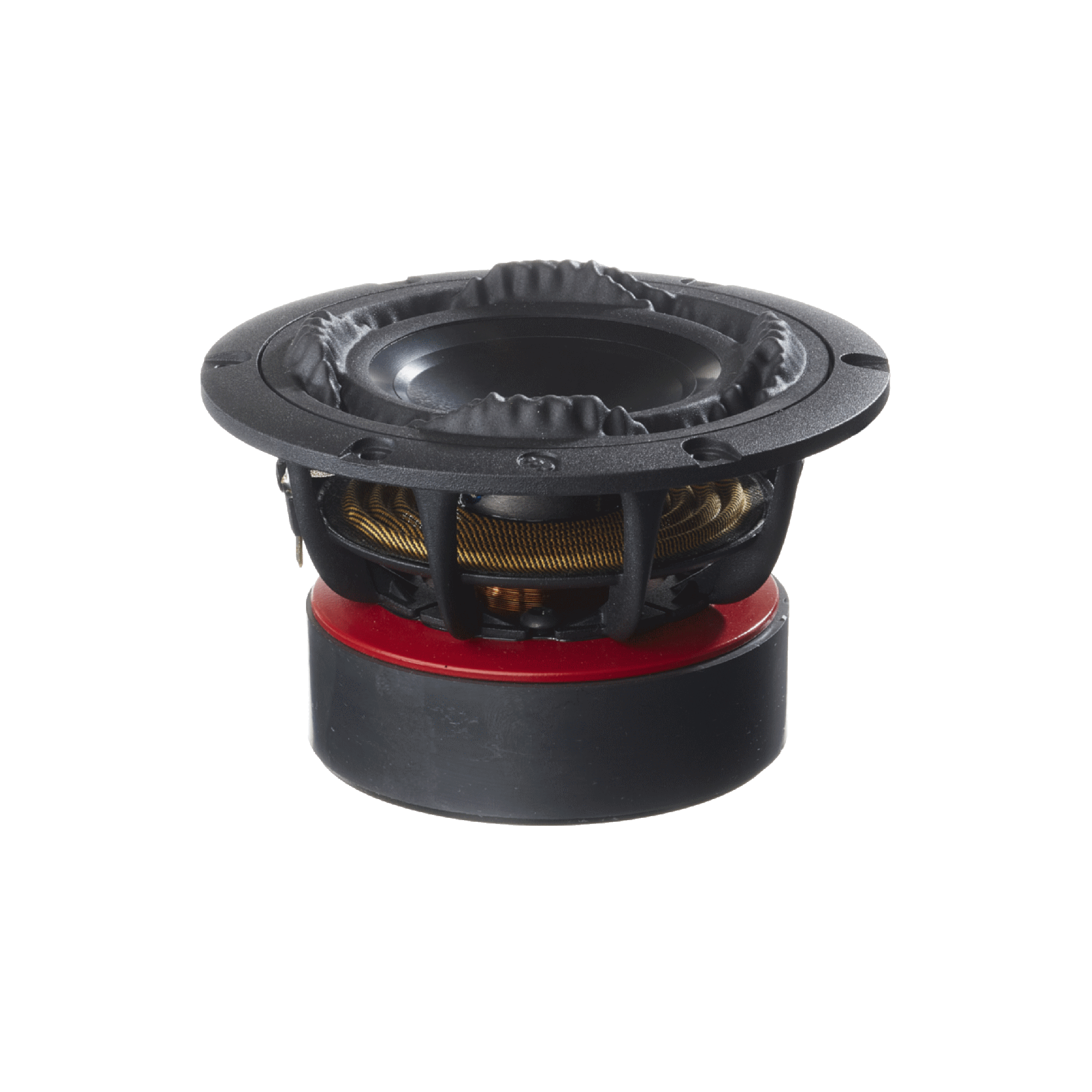

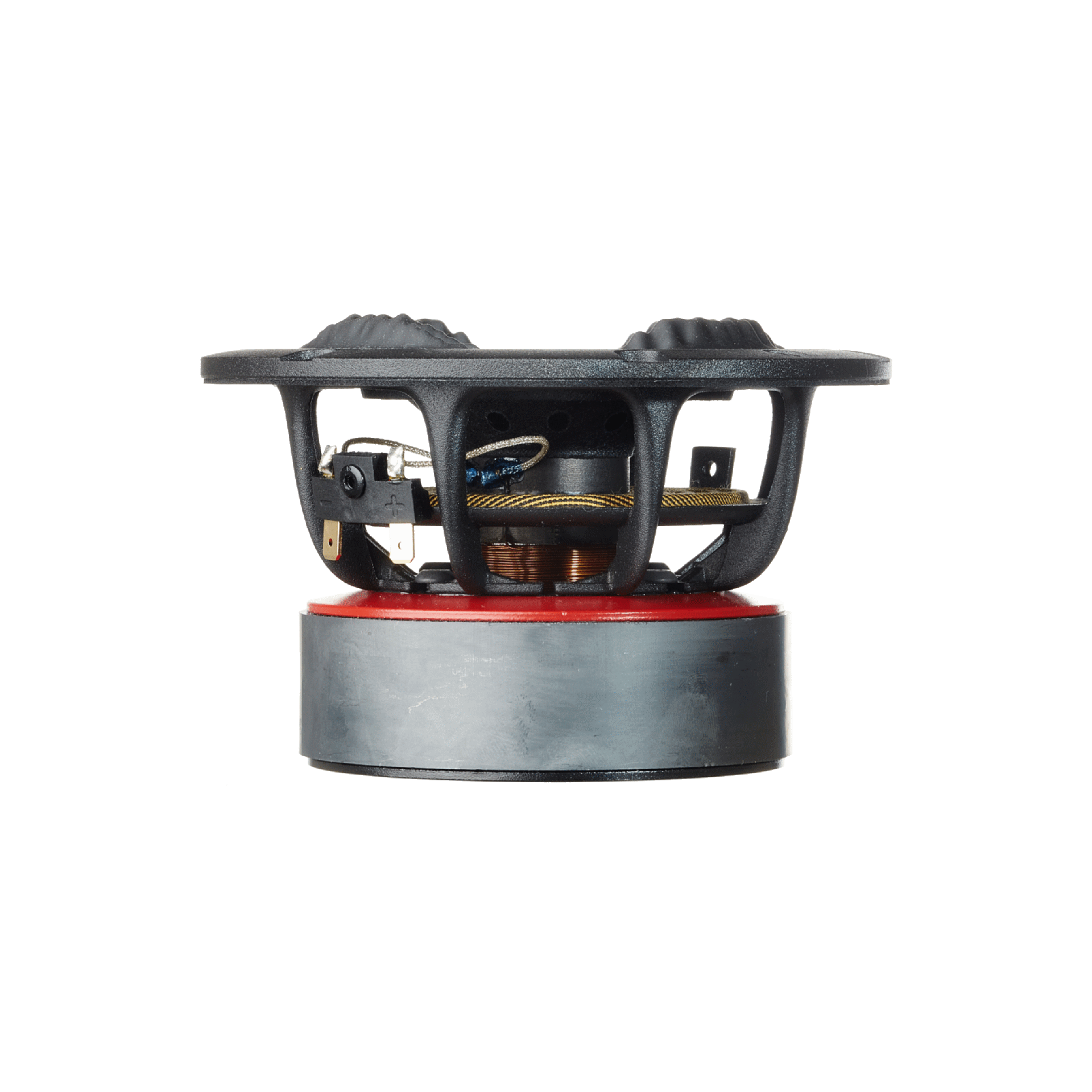

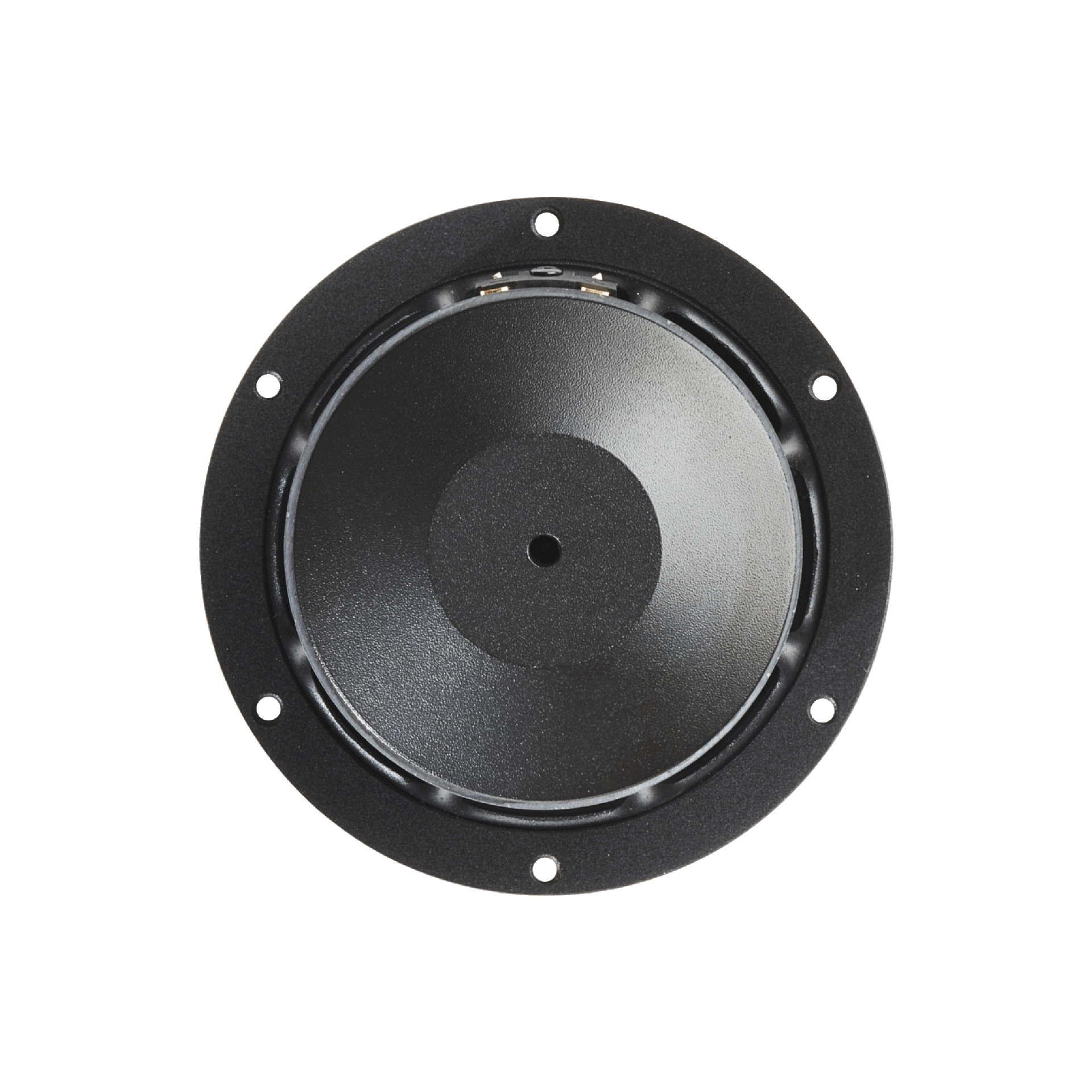

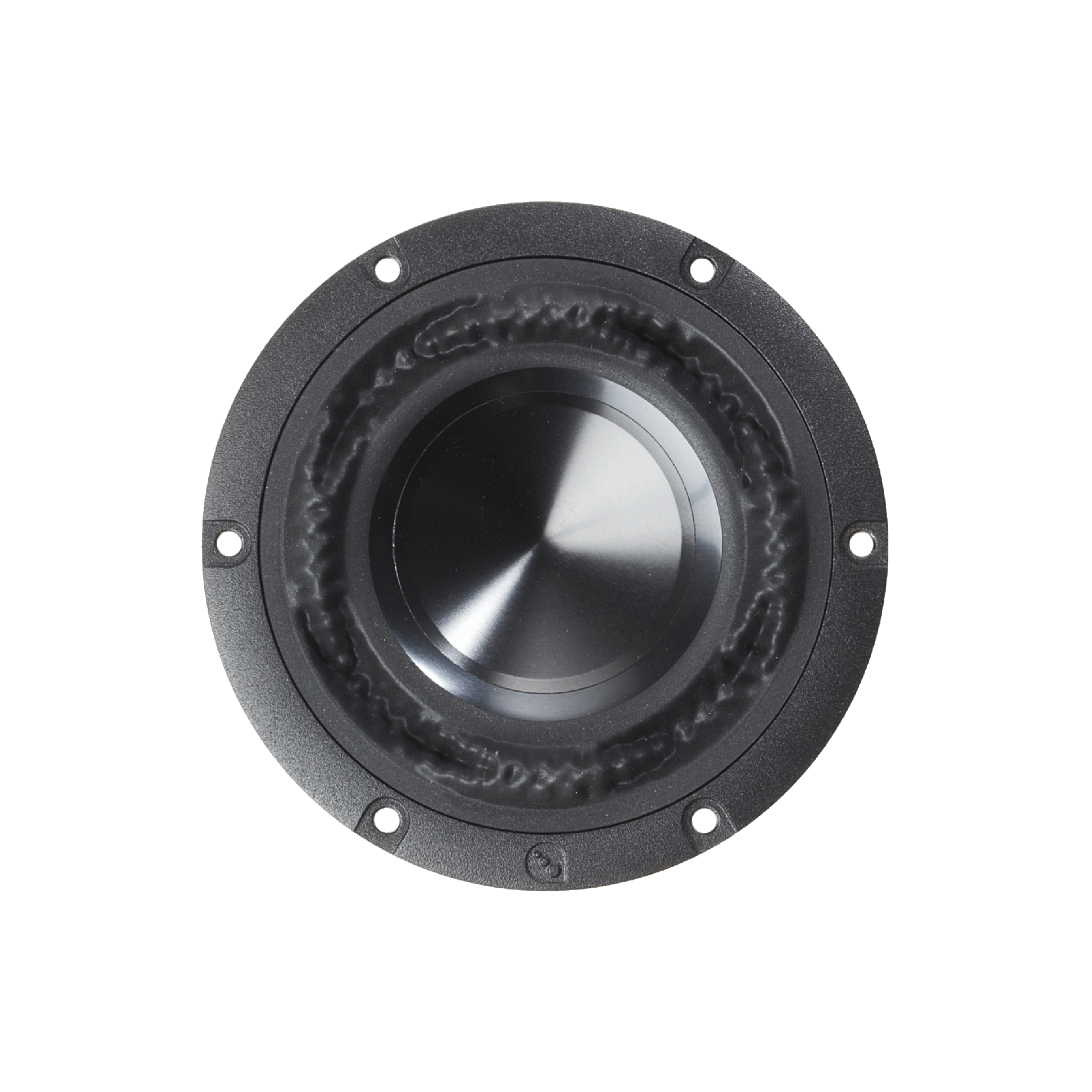

Purifi PTT4.0X08-NAC-03 8Ω
8 Ω
£251.15
SteadySoundImports · 5 in stock · Ships from Netherlands · All 1 offer
- Fs
- 43Hz
- Xmax
- 8.8mm
- SPL
- 82dB
- Pe
- 60W
- BL
- 7T·m
- Vd
- 50cm³
- Qts
- 0.39
- Vas
- 5L
Purifi PTT4.0X08-NAC-03 is a 4-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.39, Vas 5.3 L, Xmax 8.8 mm, sensitivity 81.9 dB, plus 50 cm³ Vd and 100 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £251.15.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.39
- Qes
- 0.43
- Qms
- 4.1
- Vas
- 5.3L
- Re
- 6.5Ω
- Le
- 0.56mH
Motor and cone
- BL
- 7T·m
- Sd
- 57cm²
- Mms
- 12g
- Xmax
- 8.8mm
- Vd †
- 50cm³
- Voice coil
- 30mm
Power and response
- Sensitivity †
- 81.9dB
- Manufacturer sensitivity
- 81.8dB
- Power
- 60W
- Impedance
- 8Ω
- Min. impedance
- 7.3Ω
- EBP †
- 100 · Sealed or vented
Size and mounting
- Diameter
- 125mm
- Cutout
- 101mm
- Bolt circle
- 115mm
- Weight
- 1.3kg
Other published values
- Cms
- 1.16mm/N
- Rms
- 0.79kg/s
- Xmech
- 13.7
- Power Peak
- 200
Other dimensions
- Mounting Depth
- 73.5
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
LF · Primary · 4″
- BL
- 7T·m
- Fs
- 43Hz
- Le
- 0.56mH
- Re
- 6.5Ω
- Sd
- 57cm²
- Cms
- 1.16mm/N
- Mms
- 12g
- Qes
- 0.43
- Qms
- 4.1
- Qts
- 0.39
- Rms
- 0.79kg/s
- SPL
- 81.9dB
- Vas
- 5.3L
- Xmax
- 8.8mm
- Xmech
- 13.7
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 200
- Sensitivity
- 81.8dB
- Calculated sensitivity †
- 81.9dB
- Manufacturer sensitivity
- 81.8dB
- Min. impedance
- 7.3Ω
- Voice coil
- 30mm
- Weight
- 1.3kg
- Diameter
- 125mm
- Mounting Depth
- 73.5
- Cutout
- 101mm
- Bolt circle
- 115mm
