Overview
LF Driver
Tang Band

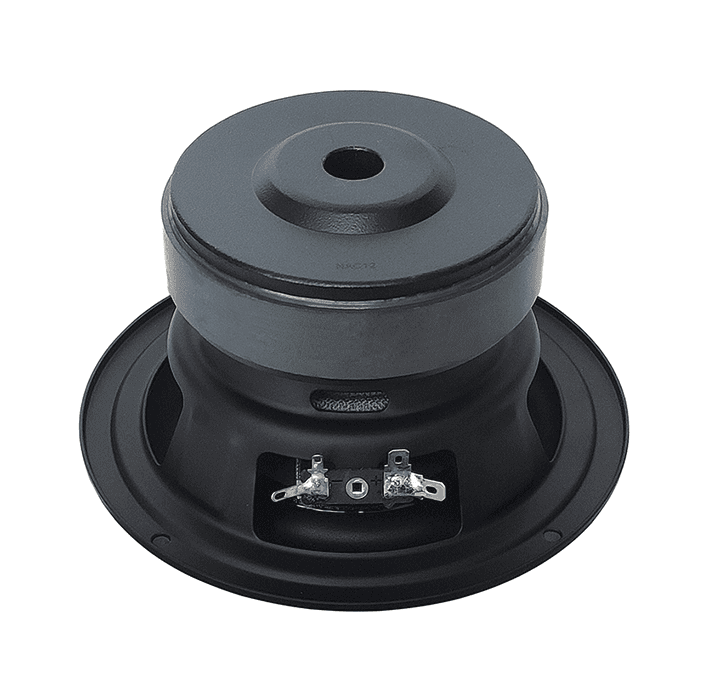

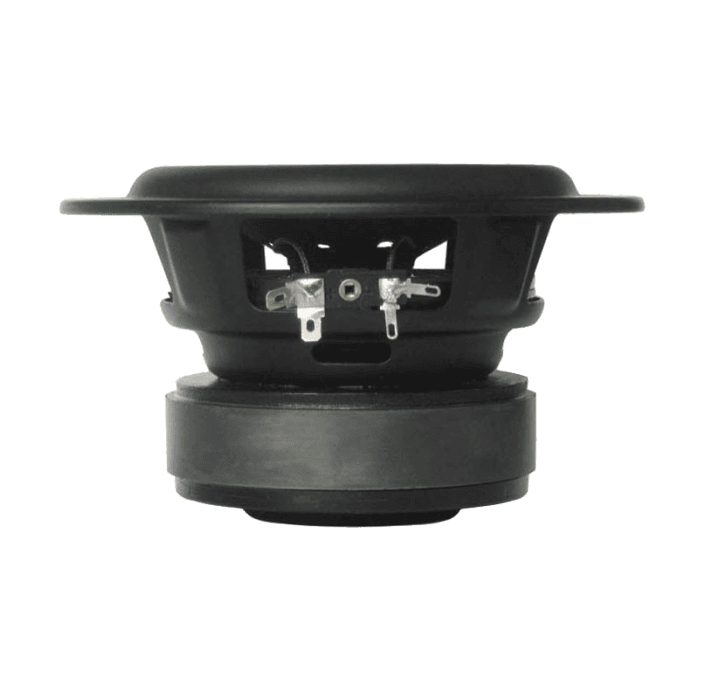

Tang Band W5-1138SMF
Tang Band W5-1138SMF is a 5" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 45Hz, Qts 0.49, Vas 4.8L, Xmax 9.3mm, sensitivity 80.9dB, plus 87cm³ Vd and 79 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
40W
Sensitivity
80.9dB
82.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
79
Either alignment
Vd
87cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,312 selected pixels of 1,744 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,270 selected pixels of 2,381
T/S Parameters
Valid
Fs45Hz
Qts0.49
Qes0.57
Qms3.6
Vas4.8L
Re3.4Ω
Le0.34mH
BL7.2Tm
Sd94cm²
Mms29g
Xmax9.3mm
SPL81dB
Power40W
Impedance4Ω
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£47.21
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
