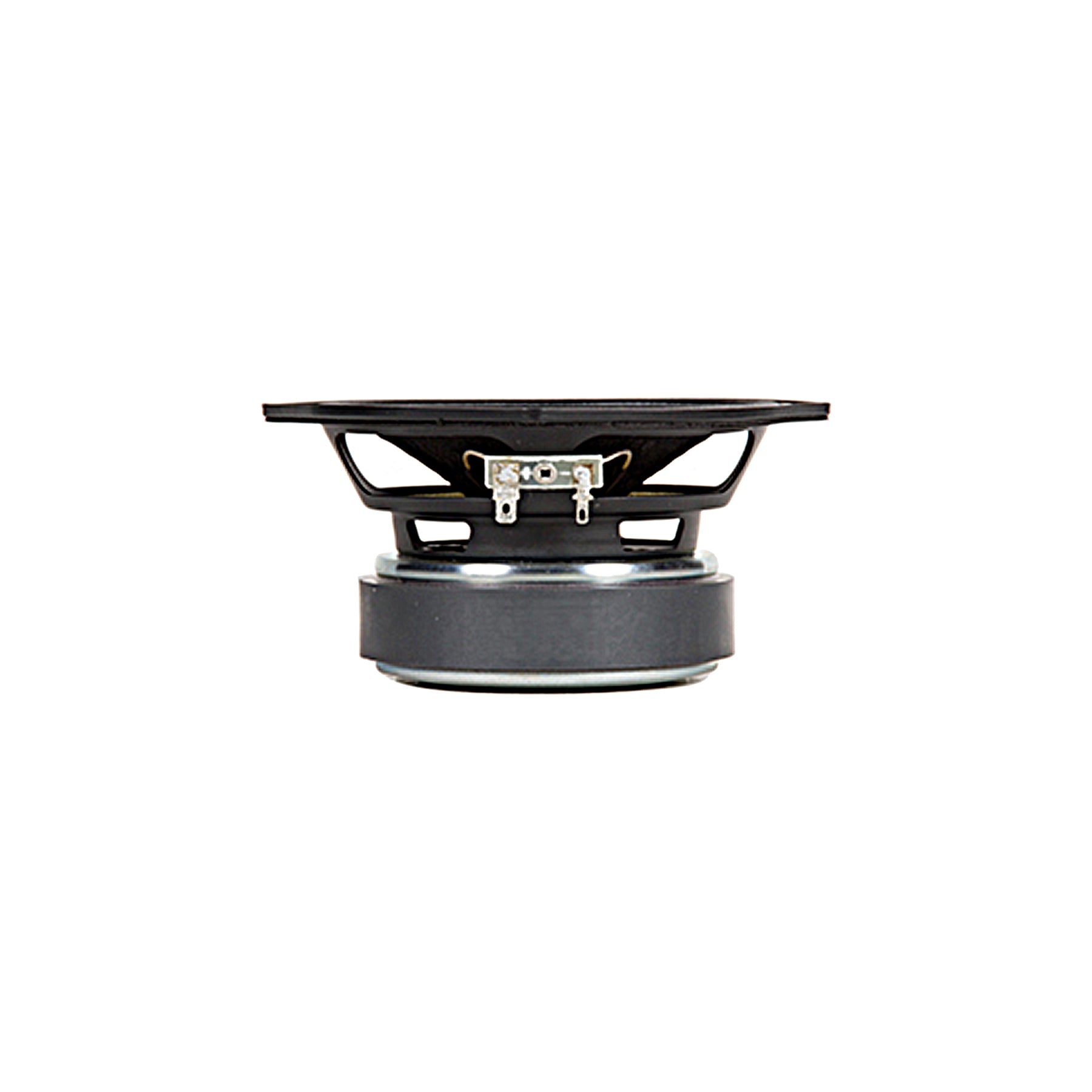

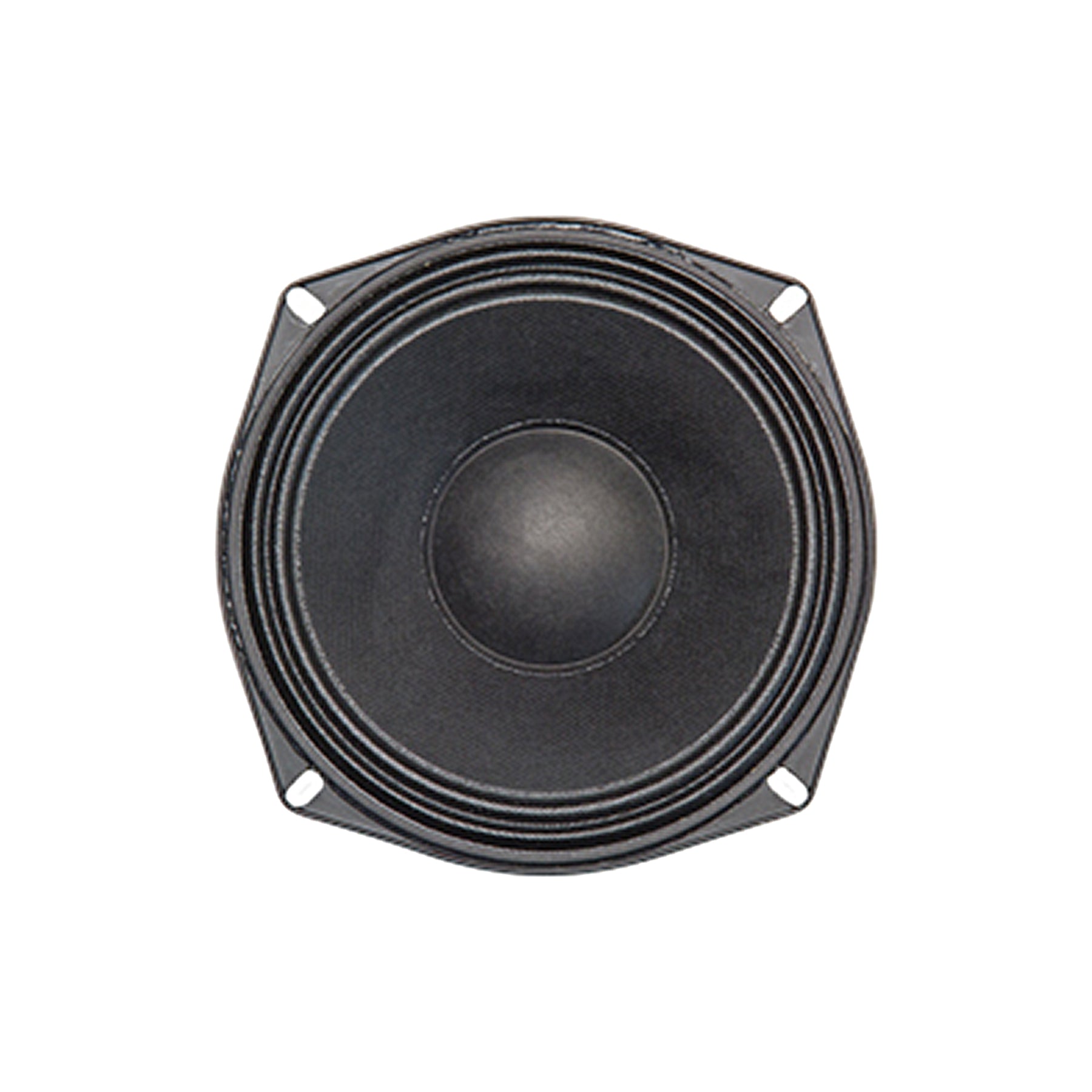

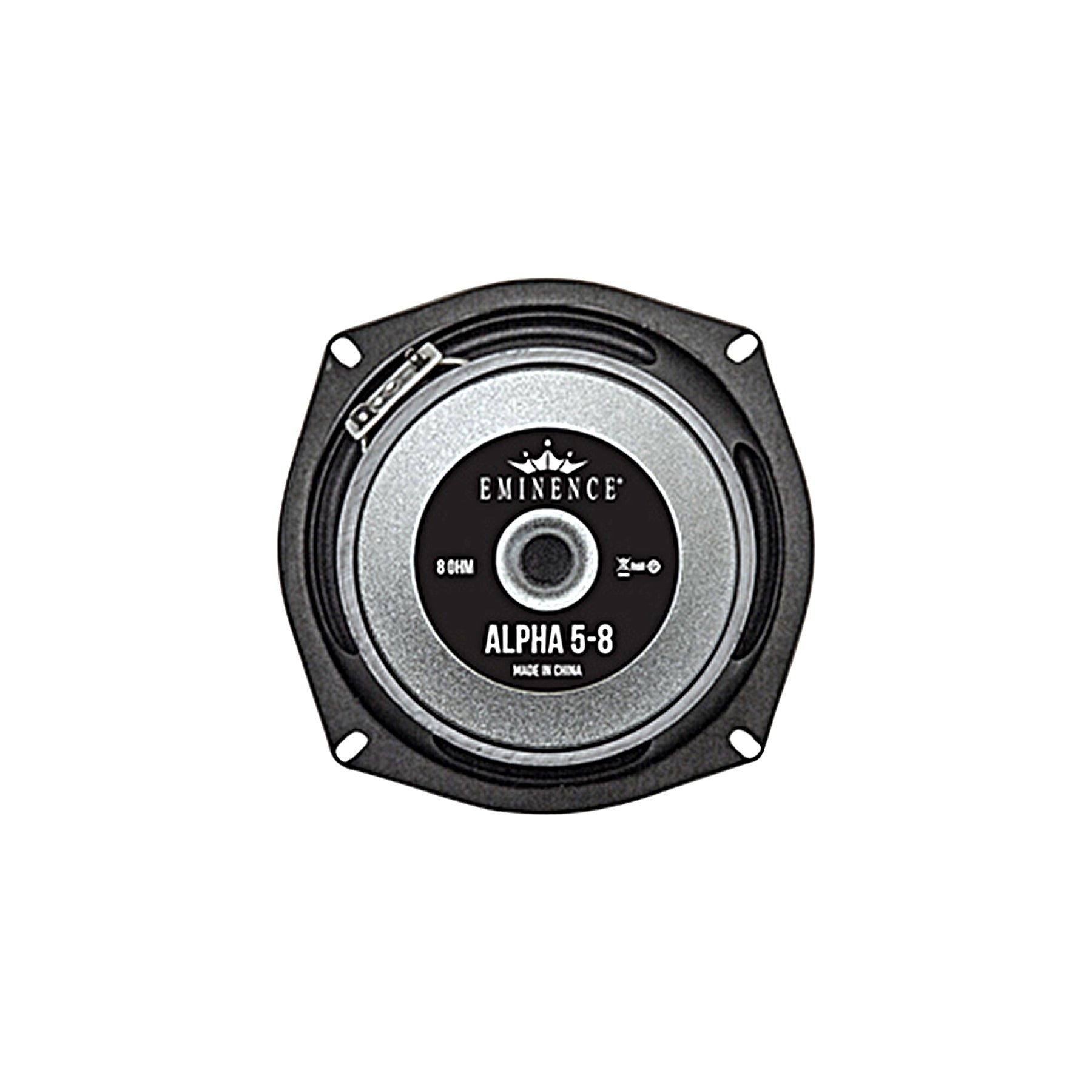

5-inch LF driver · ALPHA series · 125 W

Eminence ALPHA 5-8 8Ω

Name: Eminence ALPHA 5-8 8 Ohm
Brand: Eminence
SKU: ALPHA 5-8

8 Ω · 87–3500 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 87Hz
Xmax: 5.9mm
SPL: 91dB
Pe: 125W
BL: 6.2T·m
Vd: 61cm³
Qts: 0.54
Vas: 6L

See all 24 specs

Specifications

Published by Eminence

Manufacturer page

Datasheet PDF

Eminence ALPHA 5-8 is a 5-inch 8 ohm LF driver rated at 125 W RMS. The validated T/S data includes Fs 87 Hz, Qts 0.54, Vas 6.1 L, Xmax 5.9 mm, sensitivity 90.6 dB, plus 61 cm³ Vd and 155 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 87Hz
Qts: 0.54
Qes: 0.56
Qms: 11.8
Vas: 6.1L
Re: 5Ω
Le: 0.29mH

Motor and cone

BL: 6.2T·m
Sd: 103cm²
Mms: 8g
Xmax: 5.9mm
Vd †: 61cm³

Power and response

Sensitivity †: 90.6dB
Manufacturer sensitivity: 89.4dB
Power: 125W
Impedance: 8Ω
Range: 87–3500Hz
EBP †: 155 · Leans vented

Size and mounting

Diameter: 149.1mm
Cutout: 121.9mm
Depth: 73.9mm
Weight: 1.4kg

Other published values

Cms: 0.42mm/N
Power Program: 250

Sensitivity shows 90.6 dB, calculated from the T/S values. Eminence publishes 89.4 dB, 1.2 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Eminence lists

LF · Primary · 5″

BL: 6.2T·m
Fs: 87Hz
Le: 0.29mH
Re: 5Ω
Sd: 103cm²
Cms: 0.42mm/N
Mms: 8g
Qes: 0.56
Qms: 11.8
Qts: 0.54
SPL: 90.6dB
Vas: 6.1L
Xmax: 5.9mm
Power: 125W
Impedance: 8Ω
Sensitivity: 89.4dB
Low limit: 87Hz
Power Program: 250
Calculated sensitivity †: 90.6dB
High limit: 3500Hz
Manufacturer sensitivity: 89.4dB
Weight: 1.4kg
Diameter: 149.1mm
Depth: 73.9mm
Cutout: 121.9mm

Compare

Same-size drivers, compared with the ALPHA 5-8. Clear differences are green when better and red when worse.

This driverALPHA 5-8

Best price

–

87 Hz

Qts

0.54

Vas

6.1 L

6.2 T·m

Xmax

5.9 mm

Sensitivity

90.6 dB

Power

125 W

Dayton AudioPA130-8

£17.94

Fs83 Hz −4%

Qts0.51 −6%

Vas4.0 L −36%

BL6.4 T·m +4%

Xmax2 mm −66%

Sensitivity87.8 dB −2.8

Sica5 D 1 CS

£19.68

Fs79 Hz −9%

Qts0.52 −4%

Vas5.5 L −10%

BL5.7 T·m −8%

Xmax3 mm −49%

Sensitivity88.7 dB −1.9

FaitalPRO5FE100

£21.52

Fs65 Hz −25%

Qts0.45 −17%

Vas5.7 L −7%

BL6.9 T·m +11%

Xmax5.3 mm −11%

Sensitivity87.2 dB −3.4

FaitalPRO5FE105

£21.90

Fs65 Hz −25%

Qts0.45 −17%

Vas5.7 L −7%

BL6.9 T·m +11%

Xmax5.3 mm −11%

Sensitivity87.2 dB −3.4

SB AcousticsSB12PFCR25-8

£21.98

Fs59 Hz −32%

Qts0.48 −11%

Vas5.3 L −14%

BL4.6 T·m −26%

Xmax5 mm −16%

Sensitivity85 dB −5.6

PeerlessGBS-135F25AL02-04

£22.44

Fs64 Hz −26%

Qts0.59 +9%

Vas5.3 L −14%

BL4.9 T·m −21%

Xmax5.4 mm −9%

Sensitivity85.1 dB −5.5

FaitalPRO5FE120

£24.49

Fs65 Hz −25%

Qts0.48 −11%

Vas5.4 L −12%

BL6.9 T·m +11%

Xmax5.3 mm −11%

Sensitivity86.7 dB −3.9

PeerlessSDS-P830656

£25.08

Fs65 Hz −25%

Qts0.62 +15%

Vas6.6 L +7%

BL5.5 T·m −11%

Xmax5.5 mm −8%

Sensitivity85.8 dB −4.8

PeerlessHDS-P830860

£26.17

Fs72 Hz −17%

Qts0.54 –

Vas6.1 L –

BL5.7 T·m −8%

Xmax5.5 mm −7%

Sensitivity87 dB −3.6

PeerlessSLS-135F32CP01-04

£26.37

Fs55 Hz −37%

Qts0.54 –

Vas5.7 L −8%

BL5.2 T·m −17%

Xmax7 mm +18%

Sensitivity84 dB −6.6

FaitalPRO6FE125

£26.87

Fs61 Hz −30%

Qts0.55 –

Vas15.1 L +146%

BL6.8 T·m +9%

Xmax5.3 mm −11%

Sensitivity89.6 dB −1

FaitalPRO6FE100

£27.18

Fs61 Hz −30%

Qts0.55 –

Vas15.1 L +146%

BL6.8 T·m +9%

Xmax5.3 mm −11%

Sensitivity89.6 dB −1

PeerlessHDS-P830991

£28.05

Fs76 Hz −13%

Qts0.55 –

Vas5.1 L −17%

BL6.3 T·m –

Xmax6.5 mm +11%

Sensitivity87.1 dB −3.5

FaitalPRO5FE125

£28.89

Fs65 Hz −25%

Qts0.48 −11%

Vas5.4 L −12%

BL6.9 T·m +11%

Xmax5.3 mm −11%

Sensitivity86.7 dB −3.9

Tang BandW5-1138SMF

£38.82

Fs45 Hz −48%

Qts0.49 −9%

Vas4.8 L −21%

BL7.2 T·m +15%

Xmax9.3 mm +56%

Sensitivity80.9 dB −9.7

REDCATT61FHM-1

£39.86

Fs37 Hz −57%

Qts0.49 −9%

Vas28.2 L +359%

BL6.6 T·m +6%

Xmax6.3 mm +6%

Sensitivity86.4 dB −4.2

CelestionTFX0515

£47.48

Fs74 Hz −15%

Qts0.47 −12%

Vas6.5 L +6%

BL7.0 T·m +12%

Xmax3.8 mm −37%

Sensitivity89.2 dB −1.4

Beyma5MP60

£52.32

Fs63 Hz −28%

Qts0.46 −15%

Vas5.8 L −6%

BL6.4 T·m –

Xmax5.5 mm −7%

Sensitivity86 dB −4.6

EminenceALPHA-6A

£59.00

Fs103 Hz +18%

Qts0.54 –

Vas5.8 L −6%

BL8 T·m +29%

Xmax3.5 mm −41%

Sensitivity92.3 dB +1.7

WavecorSW146WA02

£94.87

Fs54 Hz −38%

Qts0.53 –

Vas5.5 L −10%

BL7.8 T·m +25%

Xmax6 mm –

Sensitivity83.8 dB −6.8

WavecorSW146WA01

£94.87

Fs51 Hz −41%

Qts0.48 −11%

Vas5.5 L −10%

BL5.9 T·m −5%

Xmax6 mm –

Sensitivity83.7 dB −6.9

SEASH1480 L16RN-SL

£123.54

Fs37 Hz −57%

Qts0.45 −17%

Vas19 L +209%

BL6.1 T·m –

Xmax6 mm –

Sensitivity84.5 dB −6.1

Tang BandW6-2253S

£142.30

Fs40 Hz −54%

Qts0.51 −6%

Vas6.3 L +3%

BL7.9 T·m +27%

Xmax5 mm −16%

Sensitivity80.3 dB −10.3

Scanspeak15W/8530K01

£157.04

Fs38 Hz −56%

Qts0.50 −7%

Vas17 L +177%

BL5.8 T·m −7%

Xmax6.5 mm +10%

Sensitivity84.3 dB −6.3

PRV Audio6MB400-4

No current price

Fs125 Hz +43%

Qts0.52 −4%

Vas5.3 L −14%

BL6.6 T·m +6%

Xmax3 mm −49%

Sensitivity94.7 dB +4.1

CelestionTF0512HE

No current price

Fs85 Hz –

Qts0.54 –

Vas3.5 L −44%

BL6.7 T·m +8%

Xmax4.8 mm −20%

Sensitivity87.7 dB −2.9

EminenceFS6.15A8

No current price

Fs74 Hz −15%

Qts0.52 −4%

Vas6 L –

BL8.9 T·m +43%

Xmax5 mm −16%

Sensitivity88.4 dB −2.2

WavecorWF120BD09

No current price

Fs54 Hz −38%

Qts0.50 −7%

Vas5.3 L −14%

BL5.2 T·m −16%

Xmax4 mm −32%

Sensitivity83.9 dB −6.7

Tang BandW5-1138SM

No current price

Fs45 Hz −48%

Qts0.50 −7%

Vas4.9 L −20%

BL6.6 T·m +7%

Xmax9.3 mm +56%

Sensitivity80.6 dB −10

CelestionTFX0512

No current price

Fs69 Hz −21%

Qts0.46 −15%

Vas5.4 L −12%

BL6.4 T·m +3%

Xmax3.3 mm −45%

Sensitivity87.6 dB −3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax
