5.75-inch LF driver · SW146WA series · 32 mm voice coil
Wavecor SW146WA02 8Ω
8 Ω
£94.87
Lautsprechershop · Ships from Germany · All 1 offer
- Fs
- 54Hz
- Xmax
- 6mm
- SPL
- 84dB
- Pe
- –
- BL
- 7.8T·m
- Vd
- 51cm³
- Qts
- 0.53
- Vas
- 6L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA02 on-axis
Frequency response
147 plotted pointsMedium confidence986 selected pixels of 986
Wavecor SW146WA02 is a 5.75-inch 8 ohm LF driver. The validated T/S data includes Fs 54 Hz, Qts 0.53, Vas 5.5 L, Xmax 6 mm, sensitivity 83.8 dB, plus 51 cm³ Vd and 95 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £94.87.
The published T/S values agree with each other
Thiele/Small
- Fs
- 54Hz
- Qts
- 0.53
- Qes
- 0.57
- Qms
- 9
- Vas
- 5.5L
- Re
- 6.3Ω
Motor and cone
- BL
- 7.8T·m
- Sd
- 85cm²
- Mms
- 16g
- Xmax
- 6mm
- Vd †
- 51cm³
- Voice coil
- 32mm
Power and response
- Sensitivity †
- 83.8dB
- Impedance
- 8Ω
- EBP †
- 95 · Sealed or vented
Size and mounting
- Diameter
- 146.1mm
Other published values
- Cms
- 0.54mm/N
- Rms
- 0.61kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 5.75″
- BL
- 7.8T·m
- Fs
- 54Hz
- Re
- 6.3Ω
- Sd
- 85cm²
- Cms
- 0.54mm/N
- Mms
- 16g
- Qes
- 0.57
- Qms
- 9
- Qts
- 0.53
- Rms
- 0.61kg/s
- SPL
- 83.8dB
- Vas
- 5.5L
- Xmax
- 6mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 83.8dB
- Voice coil
- 32mm
- Diameter
- 146.1mm
02
Compare
Same-size drivers, compared with the SW146WA02. Clear differences are green when better and red when worse.
This driverSW146WA02
Best price
£94.87
Fs
54 Hz
Qts
0.53
Vas
5.5 L
BL
7.8 T·m
Xmax
6 mm
Sensitivity
83.8 dB
Power
–
FaitalPRO5FE100
£21.52 · 77% less, betterFs65 Hz +20%, worse
Qts0.45 −15%, better
Vas5.7 L +4%
BL6.9 T·m −12%, worse
Xmax5.3 mm −13%, worse
Sensitivity87.2 dB +3.4, better
FaitalPRO5FE105
£21.90 · 77% less, betterFs65 Hz +20%, worse
Qts0.45 −15%, better
Vas5.7 L +4%
BL6.9 T·m −12%, worse
Xmax5.3 mm −13%, worse
Sensitivity87.2 dB +3.4, better
FaitalPRO5FE120
£24.49 · 74% less, betterFs65 Hz +20%, worse
Qts0.48 −9%
Vas5.4 L –
BL6.9 T·m −12%, worse
Xmax5.3 mm −13%, worse
Sensitivity86.7 dB +2.9, better
PeerlessHDS-P830860
£26.17 · 72% less, betterFs72 Hz +33%, worse
Qts0.54 –
Vas6.1 L +11%, worse
BL5.7 T·m −26%, worse
Xmax5.5 mm −8%
Sensitivity87 dB +3.2, better
PeerlessSLS-135F32CP01-04
£26.37 · 72% less, betterFs55 Hz –
Qts0.54 –
Vas5.7 L –
BL5.2 T·m −34%, worse
Xmax7 mm +17%, better
Sensitivity84 dB –
FaitalPRO6FE125
£26.87 · 72% less, betterFs61 Hz +13%, worse
Qts0.55 +4%
Vas15.1 L +175%, worse
BL6.8 T·m −13%, worse
Xmax5.3 mm −13%, worse
Sensitivity89.6 dB +5.8, better
FaitalPRO6FE100
£27.18 · 71% less, betterFs61 Hz +13%, worse
Qts0.55 +4%
Vas15.1 L +175%, worse
BL6.8 T·m −13%, worse
Xmax5.3 mm −13%, worse
Sensitivity89.6 dB +5.8, better
PeerlessHDS-P830991
£28.05 · 70% less, betterFs76 Hz +41%, worse
Qts0.55 +4%
Vas5.1 L −7%
BL6.3 T·m −19%, worse
Xmax6.5 mm +9%
Sensitivity87.1 dB +3.3, better
FaitalPRO5FE125
£28.89 · 70% less, betterFs65 Hz +20%, worse
Qts0.48 −9%
Vas5.4 L –
BL6.9 T·m −12%, worse
Xmax5.3 mm −13%, worse
Sensitivity86.7 dB +2.9, better
Tang BandW5-1138SMF
£38.82 · 59% less, betterFs45 Hz −17%, better
Qts0.49 −8%
Vas4.8 L −12%, better
BL7.2 T·m −8%
Xmax9.3 mm +54%, better
Sensitivity80.9 dB −2.9, worse
Beyma6B30
£50.20 · 47% less, betterFs56 Hz +4%
Qts0.50 −6%
Vas15.6 L +184%, worse
BL6.8 T·m −13%, worse
Xmax5.5 mm −8%
Sensitivity88.6 dB +4.8, better
Beyma5MP60
£52.32 · 45% less, betterFs63 Hz +17%, worse
Qts0.46 −13%, better
Vas5.8 L +5%
BL6.4 T·m −18%, worse
Xmax5.5 mm −8%
Sensitivity86 dB +2.2, better
EminenceALPHA-6A
£59.00 · 38% less, betterFs103 Hz +91%, worse
Qts0.54 –
Vas5.8 L +5%
BL8 T·m –
Xmax3.5 mm −42%, worse
Sensitivity92.3 dB +8.5, better
FaitalPRO6PR110
£62.80 · 34% less, betterFs100 Hz +85%, worse
Qts0.53 –
Vas5.6 L –
BL8.5 T·m +9%
Xmax2.8 mm −54%, worse
Sensitivity91.7 dB +7.9, better
WavecorSW146WA01
£94.87 · Same priceFs51 Hz −6%
Qts0.48 −9%
Vas5.5 L –
BL5.9 T·m −24%, worse
Xmax6 mm –
Sensitivity83.7 dB –
PRV Audio6MR500-NDY
£136.44 · 44% more, worseFs105 Hz +94%, worse
Qts0.53 –
Vas5.1 L −7%
BL9.8 T·m +26%, better
Xmax4.2 mm −30%, worse
Sensitivity92.4 dB +8.6, better
Tang BandW6-2253S
£142.30 · 50% more, worseFs40 Hz −26%, better
Qts0.51 −4%
Vas6.3 L +15%, worse
BL7.9 T·m –
Xmax5 mm −17%, worse
Sensitivity80.3 dB −3.5, worse

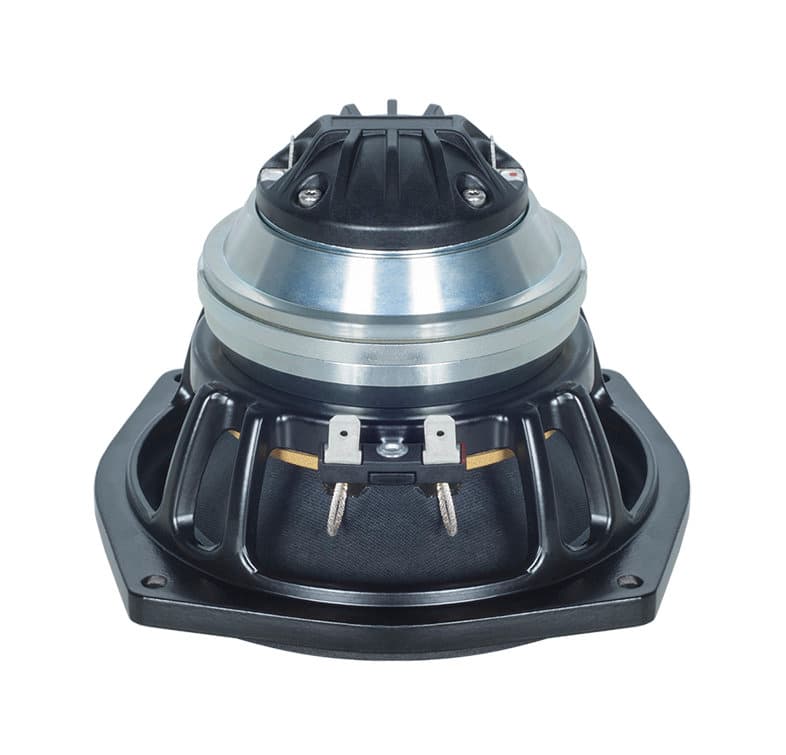

B&C5CXN44
£145.32 · 53% more, worseFs70 Hz +30%, worse
Qts0.45 −15%, better
Vas4.3 L −22%, better
BL8.1 T·m +4%
Xmax6 mm –
Sensitivity87 dB +3.2, better
EminenceALPHA 5-8
No current priceFs87 Hz +61%, worse
Qts0.54 –
Vas6.1 L +12%, worse
BL6.2 T·m −20%, worse
Xmax5.9 mm –
Sensitivity90.6 dB +6.8, better
EminenceFS6.15A8
No current priceFs74 Hz +37%, worse
Qts0.52 –
Vas6 L +9%
BL8.9 T·m +14%, better
Xmax5 mm −17%, worse
Sensitivity88.4 dB +4.6, better
PeerlessFSL-0615R01-08
No current priceFs84 Hz +56%, worse
Qts0.45 −15%, better
Vas6.7 L +22%, worse
BL8.5 T·m +9%
Xmax6 mm –
Sensitivity91 dB +7.2, better
PRV Audio6MB400-4
No current priceFs125 Hz +131%, worse
Qts0.52 –
Vas5.3 L −4%
BL6.6 T·m −16%, worse
Xmax3 mm −50%, worse
Sensitivity94.7 dB +10.9, better
CelestionTF0512HE
No current priceFs85 Hz +57%, worse
Qts0.54 –
Vas3.5 L −37%, better
BL6.7 T·m −14%, worse
Xmax4.8 mm −21%, worse
Sensitivity87.7 dB +3.9, better
CIAREPWA6.38
No current priceFs77 Hz +43%, worse
Qts0.56 +6%
Vas5.6 L –
BL8.7 T·m +12%, better
Xmax4 mm −33%, worse
Sensitivity88.2 dB +4.4, better
Beyma5CX200FE
No current priceFs82 Hz +52%, worse
Qts0.41 −23%, better
Vas5.3 L −4%
BL7.4 T·m −5%
Xmax5.7 mm −5%
Sensitivity90.4 dB +6.6, better
CIARECXI160
No current priceFs91 Hz +69%, worse
Qts0.51 −4%
Vas7.8 L +42%, worse
BL6.8 T·m −13%, worse
Xmax4.5 mm −25%, worse
Sensitivity92.2 dB +8.4, better
Tang BandW5-1138SM
No current priceFs45 Hz −17%, better
Qts0.50 −6%
Vas4.9 L −11%, better
BL6.6 T·m −15%, worse
Xmax9.3 mm +54%, better
Sensitivity80.6 dB −3.2, worse
PRV Audio6MB400
No current priceFs117 Hz +117%, worse
Qts0.60 +13%, worse
Vas5.7 L +3%
BL8.3 T·m +6%
Xmax4 mm −33%, worse
Sensitivity93.6 dB +9.8, better
No photo
PHL Audio1120
No current priceFs135 Hz +150%, worse
Qts0.56 +6%
Vas4.4 L −20%, better
BL8.5 T·m +9%
Xmax2 mm −67%, worse
Sensitivity94.4 dB +10.6, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lautsprechershop Import VAT and duty may apply | £94.87, the lowest price | Stock not listed | Visit shop at Lautsprechershop |
Best price over time
Tracked since 28 Sep
