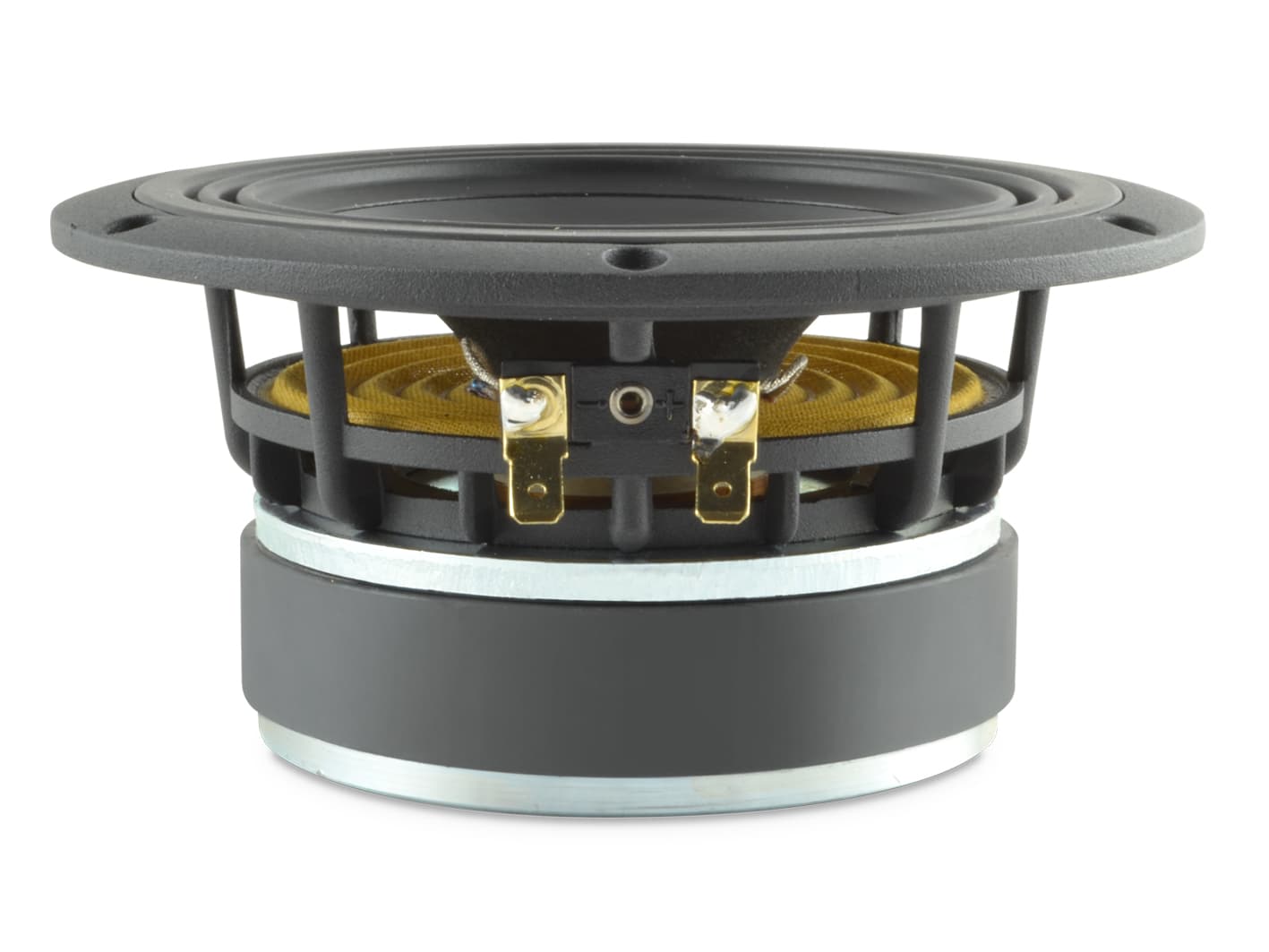

6.5-inch LF driver · CXI series · 51 mm voice coil · 220 W
CIARE CXI160 4Ω
4 Ω · 70–4000 Hz
No current price
- Fs
- 91Hz
- Xmax
- 4.5mm
- SPL
- 92dB
- Pe
- 220W
- BL
- 6.8T·m
- Vd
- 54cm³
- Qts
- 0.51
- Vas
- 8L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 aebbdbe801d6…Medium confidence1,073 selected pixels of 1,093 - Trace datasheet-response-trace-poc/v2
free air impedance
Impedance response
240 plotted pointsSource file SHA-256 aebbdbe801d6…Medium confidence825 selected pixels of 825
CIARE CXI160 is a 6.5-inch 4 ohm LF driver rated at 220 W RMS. The validated T/S data includes Fs 91 Hz, Qts 0.51, Vas 7.8 L, Xmax 4.5 mm, sensitivity 92.2 dB, plus 54 cm³ Vd and 160 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 91Hz
- Qts
- 0.51
- Qes
- 0.57
- Qms
- 5.0
- Vas
- 7.8L
- Re
- 2.8Ω
- Le
- 0.42mH
Motor and cone
- BL
- 6.8T·m
- Sd
- 120cm²
- Mms
- 15g
- Xmax
- 4.5mm
- Vd †
- 54cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 92.2dB
- Manufacturer sensitivity
- 94dB
- Power
- 220W
- Nominal power
- 220W
- Impedance
- 4Ω
- Range
- 70–4000Hz
- EBP †
- 160 · Leans vented
Size and mounting
- Diameter
- 165mm
- Cutout
- 145mm
- Bolt circle
- 154.5mm
- Depth
- 108mm
- Weight
- 2.9kg
Other published values
- Power Program
- 450
Sensitivity shows 92.2 dB, calculated from the T/S values. CIARE publishes 94.0 dB, 1.8 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 6.5″
- BL
- 6.8T·m
- Fs
- 91Hz
- Le
- 0.42mH
- Re
- 2.8Ω
- Sd
- 120cm²
- Mms
- 15g
- Qes
- 0.57
- Qms
- 5.0
- Qts
- 0.51
- SPL
- 92.2dB
- Vas
- 7.8L
- Xmax
- 4.5mm
- Power
- 220W
- Impedance
- 4Ω
- Sensitivity
- 94dB
- Low limit
- 70Hz
- Nominal power
- 220W
- Power Program
- 450
- Calculated sensitivity †
- 92.2dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 51mm
- Weight
- 2.9kg
- Diameter
- 165mm
- Depth
- 108mm
- Cutout
- 145mm
- Bolt circle
- 154.5mm
02
Compare
Same-size drivers, compared with the CXI160. Clear differences are green when better and red when worse.
This driverCXI160
Best price
–
Fs
91 Hz
Qts
0.51
Vas
7.8 L
BL
6.8 T·m
Xmax
4.5 mm
Sensitivity
92.2 dB
Power
220 W
Dayton AudioPA165-8
£24.98Fs81 Hz −11%, better
Qts0.47 −8%
Vas9.2 L +18%, worse
BL6.3 T·m −7%
Xmax–
Sensitivity91.1 dB −1.1
PeerlessSDS-P830657
£25.35Fs48 Hz −47%, better
Qts0.47 −8%
Vas20.1 L +158%, worse
BL6.9 T·m –
Xmax5.5 mm +21%, better
Sensitivity88 dB −4.2, worse
FaitalPRO6FE125
£26.87Fs61 Hz −33%, better
Qts0.55 +8%
Vas15.1 L +94%, worse
BL6.8 T·m –
Xmax5.3 mm +17%, better
Sensitivity89.6 dB −2.6, worse
FaitalPRO6FE100
£27.18Fs61 Hz −33%, better
Qts0.55 +8%
Vas15.1 L +94%, worse
BL6.8 T·m –
Xmax5.3 mm +17%, better
Sensitivity89.6 dB −2.6, worse
FaitalPRO6FE200
£29.40Fs120 Hz +32%, worse
Qts0.42 −18%, better
Vas4.3 L −45%, better
BL7 T·m –
Xmax4.6 mm –
Sensitivity94.2 dB +2, better
Dayton AudioSIG150-4
£32.08Fs62 Hz −32%, better
Qts0.49 −4%
Vas8.7 L +12%, worse
BL5.2 T·m −24%, worse
Xmax4 mm −11%, worse
Sensitivity87.8 dB −4.4, worse
CelestionTRUVOX 0615
£32.65Fs90 Hz –
Qts0.47 −7%
Vas7.4 L −5%
BL8.0 T·m +18%, better
Xmax3.5 mm −22%, worse
Sensitivity92.2 dB –
Beyma6B30
£50.74Fs56 Hz −38%, better
Qts0.50 –
Vas15.6 L +100%, worse
BL6.8 T·m –
Xmax5.5 mm +22%, better
Sensitivity88.6 dB −3.6, worse
EminenceALPHA-6A
£57.54Fs103 Hz +13%, worse
Qts0.54 +6%
Vas5.8 L −26%, better
BL8 T·m +18%, better
Xmax3.5 mm −22%, worse
Sensitivity92.3 dB –
EminenceALPHA 6C
£57.54Fs107 Hz +18%, worse
Qts0.45 −12%, better
Vas5.7 L −27%, better
BL6.4 T·m −6%
Xmax3.5 mm −22%, worse
Sensitivity93.6 dB +1.4
WavecorWF146WA02
£58.31Fs58 Hz −36%, better
Qts0.51 –
Vas10 L +28%, worse
BL6.4 T·m −6%
Xmax3 mm −33%, worse
Sensitivity87.6 dB −4.6, worse
SEASH1217-08 CA18RLY
£91.61Fs42 Hz −54%, better
Qts0.47 −8%
Vas32 L +310%, worse
BL5.6 T·m −18%, worse
Xmax5 mm +11%, better
Sensitivity88.3 dB −3.9, worse
WavecorSW146WA02
£95.90Fs54 Hz −41%, better
Qts0.53 +4%
Vas5.5 L −29%, better
BL7.8 T·m +15%, better
Xmax6 mm +33%, better
Sensitivity83.8 dB −8.4, worse
FaitalPRO6PR130
£122.69Fs175 Hz +92%, worse
Qts0.48 −6%
Vas4.2 L −46%, better
BL11.4 T·m +68%, better
Xmax4.6 mm –
Sensitivity98 dB +5.8, better
CIARECMI160ND
£130.63Fs73 Hz −20%, better
Qts0.41 −20%, better
Vas6 L −23%, better
BL7.8 T·m +15%, better
Xmax4.5 mm –
Sensitivity89.2 dB −3, worse
PRV Audio6MR500-NDY
£137.93Fs105 Hz +15%, worse
Qts0.53 +4%
Vas5.1 L −34%, better
BL9.8 T·m +45%, better
Xmax4.2 mm −6%
Sensitivity92.4 dB –
Tang BandW6-2253S
£143.85Fs40 Hz −56%, better
Qts0.51 –
Vas6.3 L −19%, better
BL7.9 T·m +16%, better
Xmax5 mm +11%, better
Sensitivity80.3 dB −11.9, worse
CIAREHMB165
No current priceFs86 Hz −5%
Qts0.53 +4%
Vas8.6 L +10%, worse
BL7 T·m –
Xmax3.5 mm −22%, worse
Sensitivity91.4 dB −0.8
CIARECMI160
No current priceFs70 Hz −23%, better
Qts0.41 −20%, better
Vas7.8 L –
BL7.2 T·m +6%
Xmax4.5 mm –
Sensitivity89.8 dB −2.4, worse
HiViW6
No current priceFs40 Hz −56%, better
Qts0.52 –
Vas25.1 L +222%, worse
BL6.7 T·m –
Xmax4.3 mm −4%
Sensitivity86 dB −6.2, worse
Audio Technology15 H 52 06 13 SDKAM-LR
No current priceFs65 Hz −29%, better
Qts0.45 −12%, better
Vas9.2 L +18%, worse
BL6.4 T·m −6%
Xmax4 mm −11%, worse
Sensitivity89.1 dB −3.1, worse
PRV Audio6MB400-4
No current priceFs125 Hz +37%, worse
Qts0.52 –
Vas5.3 L −32%, better
BL6.6 T·m −3%
Xmax3 mm −33%, worse
Sensitivity94.7 dB +2.5, better
BMS6N160
No current priceFs89 Hz –
Qts0.47 −8%
Vas7.7 L –
BL11.3 T·m +66%, better
Xmax5 mm +11%, better
Sensitivity91.7 dB −0.5
WavecorWF168OM02
No current priceFs40 Hz −56%, better
Qts0.54 +6%
Vas29.5 L +278%, worse
BL6 T·m −12%, worse
Xmax4.2 mm −7%
Sensitivity87.2 dB −5, worse

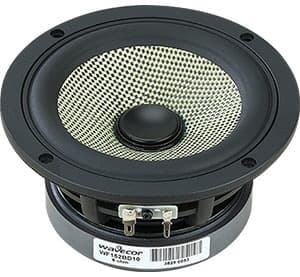

WavecorWF152BD11
