Overview
LF DriverFE series
FaitalPRO
FaitalPRO 6FE100

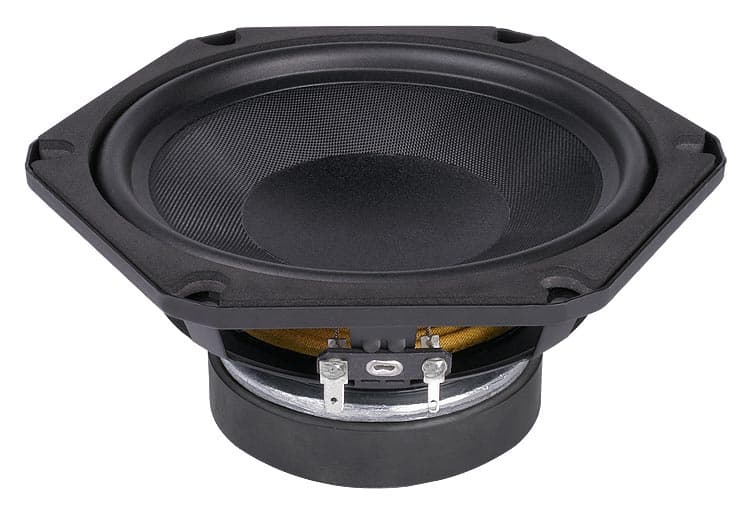

FaitalPRO 6FE100 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 61Hz, Qts 0.55, Vas 15.1L, Xmax 5.3mm, sensitivity 89.6dB, plus 78cm³ Vd and 102 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £27.18.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
89.6dB
91.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
102
Vented alignment
Vd
78cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence823 selected pixels of 971 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,193 selected pixels of 1,193 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,347 selected pixels of 1,347
T/S Parameters
Valid
Fs61Hz
Qts0.55
Qes0.60
Qms6.0
Vas15.1L
Re5.4Ω
Le0.50mH
BL6.8Tm
Sd149cm²
Mms14g
Xmax5.3mm
SPL90dB
Power100W
Impedance8Ω
F Low63Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£27.18
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Diameter181.2mm
Overall Depth84.5mm
Cutout Diameter147.0mm
Bolt Circle Diameter167.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
6FE100
6"
Best current price
£27.18
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
41%
Similarity
31% cheaper£18.66
Peerless
SDS-P830656
5.25"
Lower price
Xmax5.5mm+4%
Qts0.62+13%
BL5.5Tm-19%
Vas6.6L-56%
Qes0.76+27%
100%
Similarity
1% cheaper£26.87
FaitalPRO
6FE125
6"
Lower price
Xmax5.3mm0%
Qts0.550%
BL6.8Tm0%
Vas15.1L0%
Qes0.60%
52%
Similarity
18% more£32.19
Dayton Audio
SIG150-4
6"
Higher price
Xmax4mm-24%
Qts0.49-11%
BL5.2Tm-24%
Vas8.7L-42%
Qes0.53-12%
35%
Similarity
90% more£51.68
Celestion
TFX0515
5"
Higher price
Xmax3.8mm-29%
Qts0.47-14%
BL7Tm+2%
Vas6.5L-57%
Qes0.5-16%
52%
Similarity
96% more£53.26
Eminence
ALPHA 5-8
5"
Higher price
Xmax5.9mm+13%
Qts0.54-2%
BL6.2Tm-9%
Vas6.1L-59%
Qes0.56-7%
37%
Similarity
220% more£86.95
Scanspeak
18W/8434G00
7"
Higher price
Xmax4.2mm-20%
Qts0.43-22%
BL7.2Tm+6%
Vas19.5L+29%
Qes0.46-23%
61%
Similarity
297% more£107.95
Fountek
FW168K
6.5"
Higher price
Xmax5mm-5%
Qts0.43-22%
BL7.9Tm+16%
Vas15.1L0%
Qes0.52-13%
67%
Similarity
606% more£191.95
Scanspeak
15W/8530K01
6"
Higher price
Xmax6.5mm+24%
Qts0.5-9%
BL5.8Tm-15%
Vas17L+13%
Qes0.55-8%
82%
Similarity
Beyma
206B30P8
6.5"
Xmax5.5mm+5%
Qts0.5-9%
BL6.8Tm0%
Vas15.6L+3%
Qes0.60%
69%
Similarity
Tang Band
W6-2253S
6"
Xmax5mm-5%
Qts0.51-7%
BL7.9Tm+16%
Vas6.3L-58%
Qes0.60%
67%
Similarity
Peerless
SDS-P830657
6.5"
Xmax5.5mm+4%
Qts0.47-15%
BL6.9Tm+2%
Vas20.1L+33%
Qes0.56-6%
67%
Similarity
CIARE
HW159
6.5"
Xmax5.8mm+10%
Qts0.49-11%
BL6.3Tm-7%
Vas19.4L+28%
Qes0.61+2%
