Overview
LF Driver
Tang Band

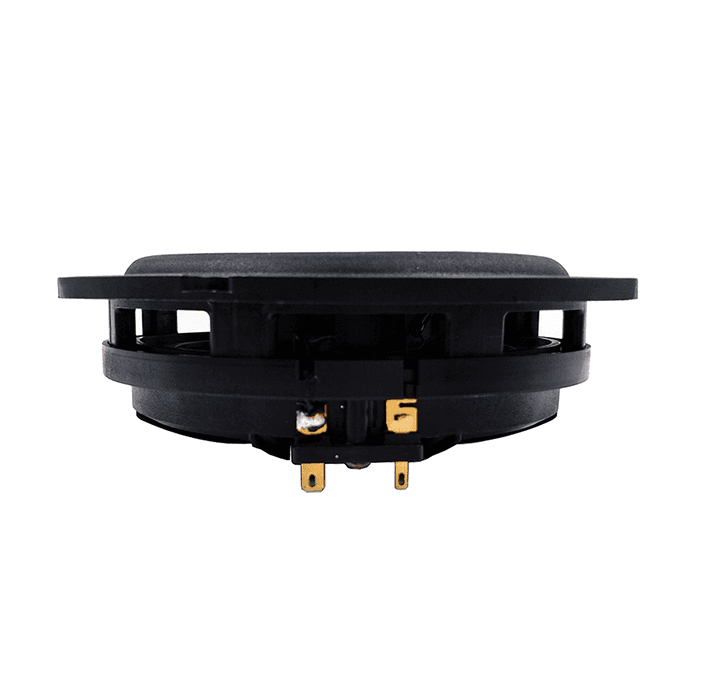

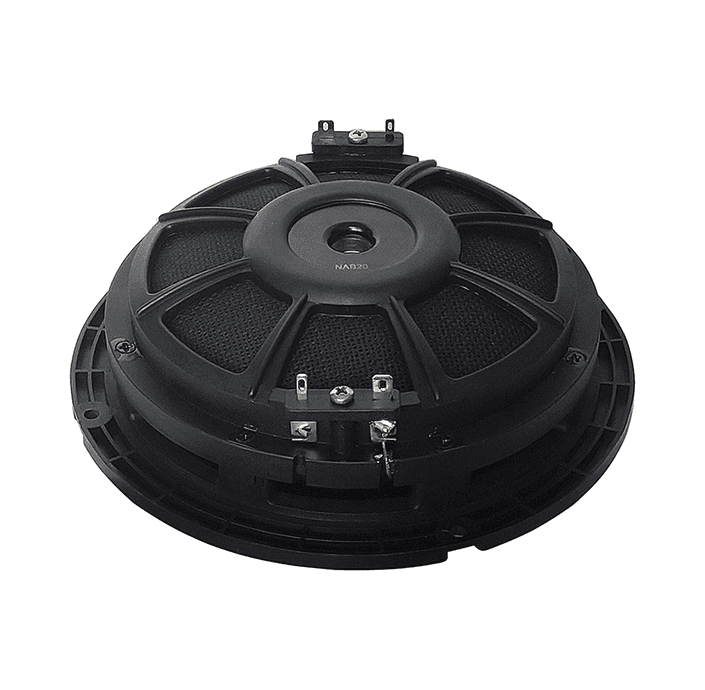

Tang Band W6-2253S
Tang Band W6-2253S is a 6" 4 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 40Hz, Qts 0.51, Vas 6.3L, Xmax 5mm, sensitivity 80.3dB, plus 55cm³ Vd and 67 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
RMS Power
100W
Sensitivity
80.3dB
EBP
67
Either alignment
Vd
55cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,584 selected pixels of 2,587 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,454 selected pixels of 2,454
T/S Parameters
Valid
Fs40Hz
Qts0.51
Qes0.60
Qms3.2
Vas6.3L
Re3.6Ω
Le0.19mH
BL7.9Tm
Sd110cm²
Mms40g
Xmax5.0mm
SPL80dB
Power100W
Impedance4Ω
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£146.02
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W6-2253S
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
£57.54
Eminence
ALPHA-6A
6"
Xmax3.5mm-30%
Qts0.54+6%
BL8Tm+2%
Vas5.8L-9%
Qes0.60%
Image unavailable
76%
Similarity
Wavecor
SW146WA02
5.75"
Xmax6mm+20%
Qts0.53+4%
BL7.8Tm-1%
Vas5.5L-13%
Qes0.57-5%
70%
Similarity
£64.09
Eminence
BETA-6A
6"
Xmax4.5mm-10%
Qts0.56+10%
BL8.1Tm+3%
Vas3.5L-45%
Qes0.66+10%
67%
Similarity
PRV Audio
6MR500-NDY
6"
Xmax4.2mm-16%
Qts0.53+4%
BL9.8Tm+25%
Vas5.1L-19%
Qes0.54-10%
65%
Similarity
CIARE
PWA6.38
6.5"
Xmax4mm-20%
Qts0.56+10%
BL8.7Tm+10%
Vas5.6L-12%
Qes0.62+3%
64%
Similarity
PRV Audio
6MR500-NDY-4
6"
Xmax4.4mm-12%
Qts0.43-16%
BL8.8Tm+11%
Vas5.1L-19%
Qes0.47-22%
61%
Similarity
PRV Audio
6MB400
6.5"
Xmax4mm-20%
Qts0.6+18%
BL8.3Tm+5%
Vas5.7L-10%
Qes0.64+7%
61%
Similarity
Peerless
FSL-0615R01-08
6.5"
Xmax6mm+20%
Qts0.45-12%
BL8.5Tm+8%
Vas6.7L+6%
Qes0.51-15%
61%
Similarity
£127.59
CIARE
CMI160ND
6.5"
Xmax4.5mm-10%
Qts0.41-20%
BL7.8Tm-1%
Vas6L-5%
Qes0.45-25%
61%
Similarity
£24.49
FaitalPRO
5FE120
5"
Xmax5.3mm+5%
Qts0.48-6%
BL6.9Tm-12%
Vas5.4L-15%
Qes0.51-15%
61%
Similarity
£43.27
FaitalPRO
5FE125
5"
Xmax5.3mm+5%
Qts0.48-6%
BL6.9Tm-12%
Vas5.4L-15%
Qes0.51-15%
59%
Similarity
Beyma
205MP6N8
5"
Xmax5.5mm+10%
Qts0.46-10%
BL6.4Tm-19%
Vas5.8L-9%
Qes0.58-3%
