Overview
LF DriverBETA series
Eminence
Eminence BETA-6A

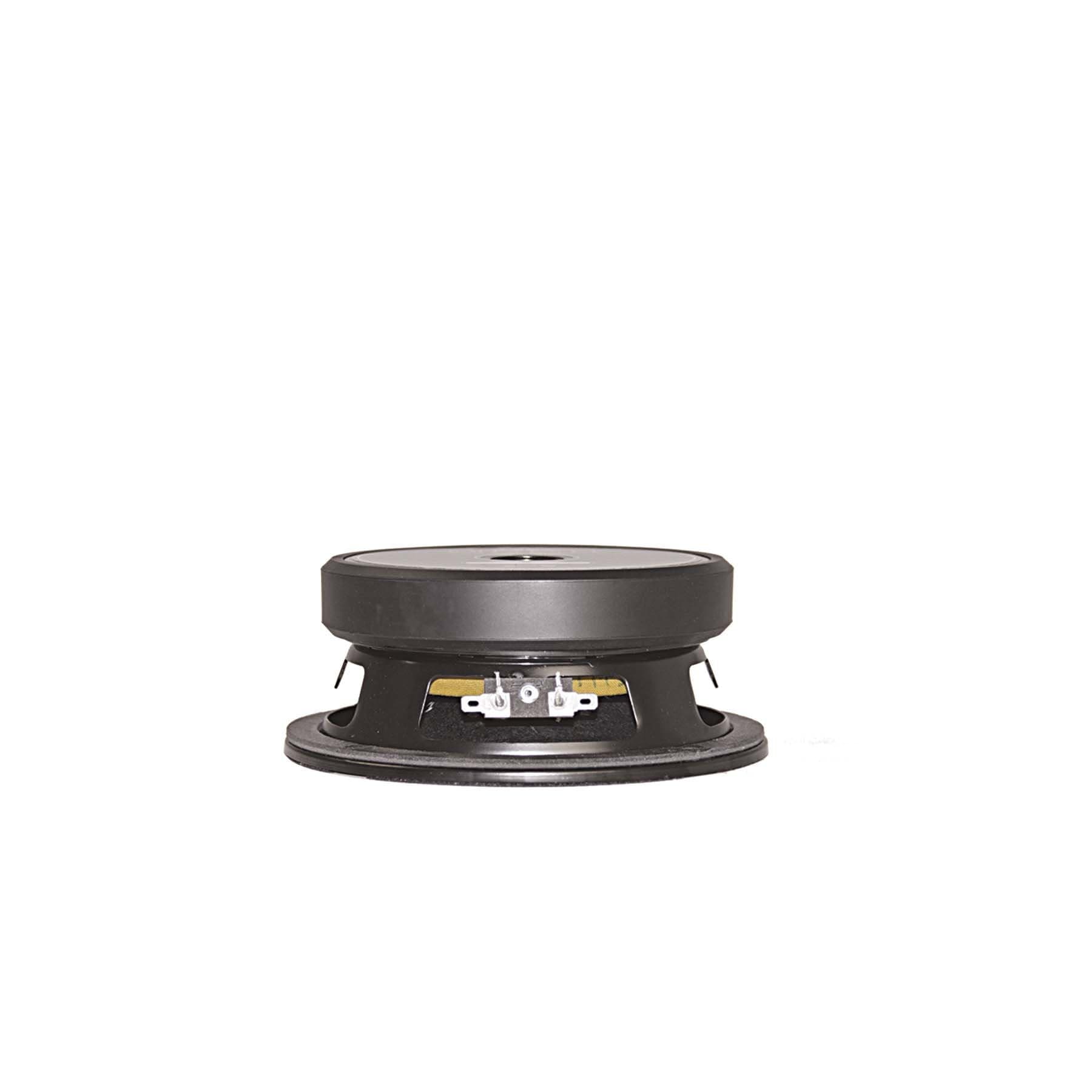

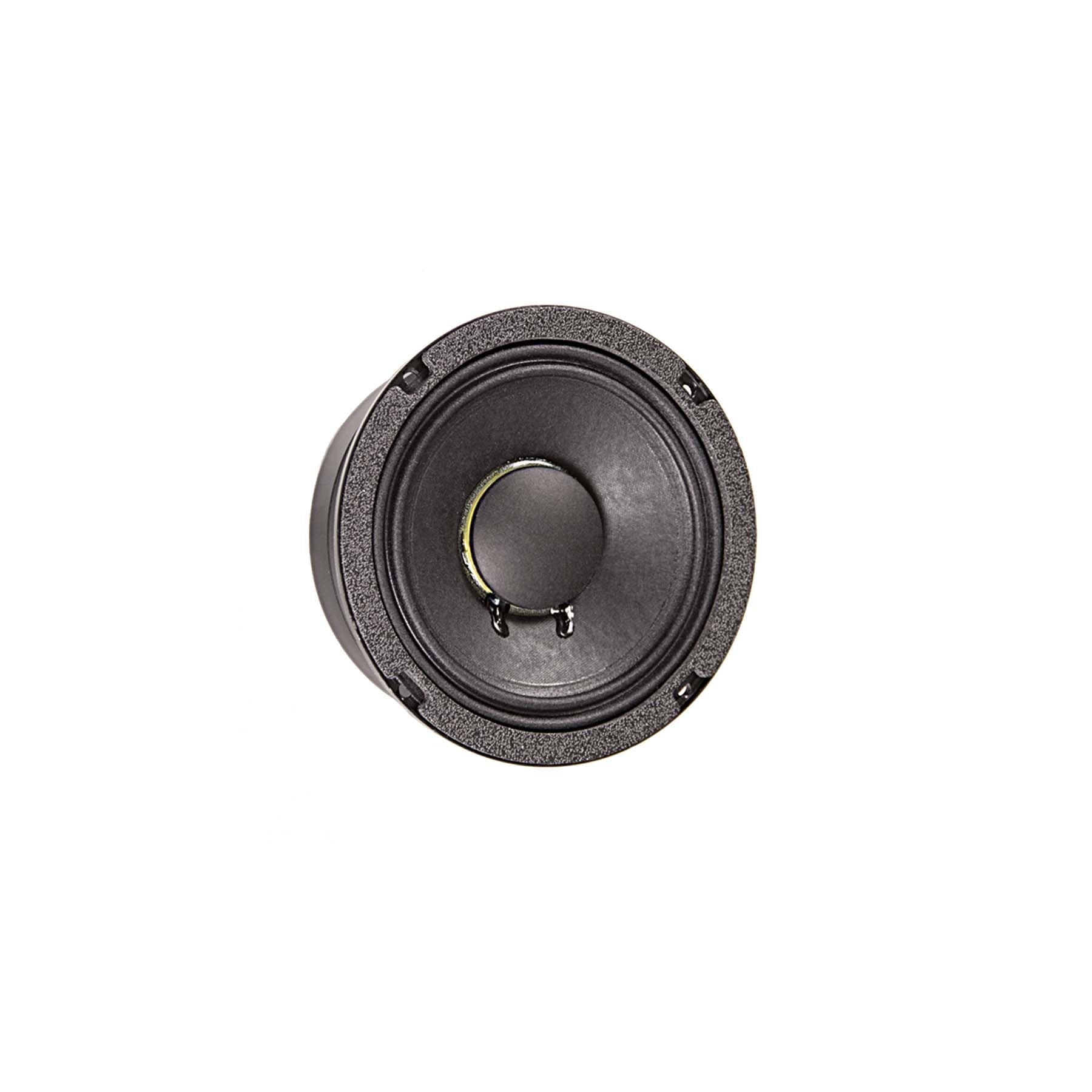

Eminence BETA-6A is a 6" 8 ohm LF driver rated at 175W RMS. The validated T/S data includes Fs 123Hz, Qts 0.56, Vas 3.5L, Xmax 4.5mm, sensitivity 92dB, plus 58cm³ Vd and 186 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £64.09.
Size
6"
Impedance
8Ω
RMS Power
175W
Sensitivity
92.0dB
94.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
186
Vented alignment
Vd
58cm³
T/S Parameters
Valid
Fs123Hz
Qts0.56
Qes0.66
Qms3.5
Vas3.5L
Re5.2Ω
Le0.43mH
BL8.1Tm
Sd130cm²
Mms11g
Xmax4.5mm
SPL92dB
Power175W
Impedance8Ω
F Low95Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£64.09
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.5kg
Diameter167.4mm
Overall Depth67.6mm
Cutout Diameter143.5mm
Bolt Circle Diameter153.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
BETA-6A
6"
Best current price
£64.09
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
33%
Similarity
62% cheaper£24.49
FaitalPRO
5FE120
5"
Lower price
Xmax5.3mm+17%
Qts0.48-14%
BL6.9Tm-15%
Vas5.4L+54%
Qes0.51-23%
78%
Similarity
54% cheaper£29.50
FaitalPRO
6FE200
6"
Lower price
Xmax4.7mm+4%
Qts0.67+20%
BL8.2Tm+1%
Vas3.6L+3%
Qes0.75+14%
63%
Similarity
39% cheaper£39.24
CIARE
PWA6.38
6.5"
Lower price
Xmax4mm-11%
Qts0.560%
BL8.7Tm+7%
Vas5.6L+60%
Qes0.62-6%
71%
Similarity
36% cheaper£41.18
Dayton Audio
LW150-4
6"
Lower price
Xmax4mm-11%
Qts0.64+14%
BL6.5Tm-20%
Vas3.5L-1%
Qes0.72+9%
44%
Similarity
33% cheaper£42.73
Lavoce
MAF061.50
6.5"
Lower price
Xmax3.6mm-20%
Qts0.52-7%
BL10.5Tm+30%
Vas1.9L-46%
Qes0.57-14%
49%
Similarity
30% cheaper£44.66
FaitalPRO
6FE300
6"
Lower price
Xmax3.9mm-13%
Qts0.46-18%
BL10Tm+23%
Vas4.7L+34%
Qes0.48-27%
50%
Similarity
72% more£110.00
Celestion
NTR06-1705B
6.5"
Higher price
Xmax4mm-11%
Qts0.44-21%
BL10.7Tm+31%
Vas3.6L+3%
Qes0.58-13%
68%
Similarity
FaitalPRO
5HX220
5"
Xmax4.6mm+2%
Qts0.560%
BL7.7Tm-5%
Vas2.5L-29%
Qes0.6-9%
66%
Similarity

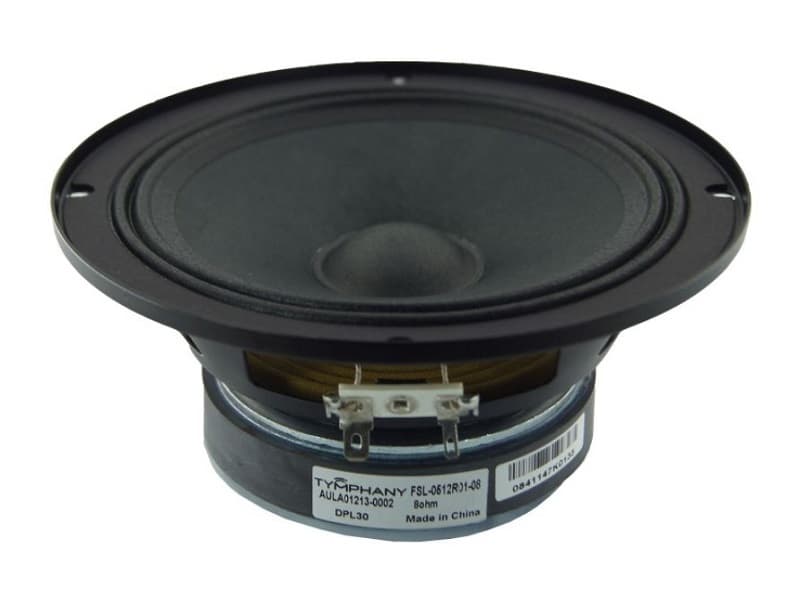

Peerless
FSL-0512R01-08
5.25"
Xmax4.3mm-4%
Qts0.58+4%
BL6.4Tm-21%
Vas3.5L-1%
Qes0.76+15%
63%
Similarity
Celestion
TF0512HE
5"
Xmax4.8mm+6%
Qts0.54-4%
BL6.7Tm-17%
Vas3.5L-1%
Qes0.57-14%
63%
Similarity
PRV Audio
6MR500-NDY
6"
Xmax4.2mm-6%
Qts0.53-5%
BL9.8Tm+21%
Vas5.1L+46%
Qes0.54-18%
55%
Similarity
PRV Audio
6MR500-NDY-4
6"
Xmax4.4mm-2%
Qts0.43-23%
BL8.8Tm+8%
Vas5.1L+46%
Qes0.47-29%
