Dayton AudioGF180-8
£18.87Fs53 Hz −63%, better
Qts0.50 −12%, better
Vas15.5 L +311%, worse
BL7.9 T·m +18%, better
Xmax4 mm –
Sensitivity87.9 dB −6.8, worse
6.5-inch LF driver · 37 mm voice coil

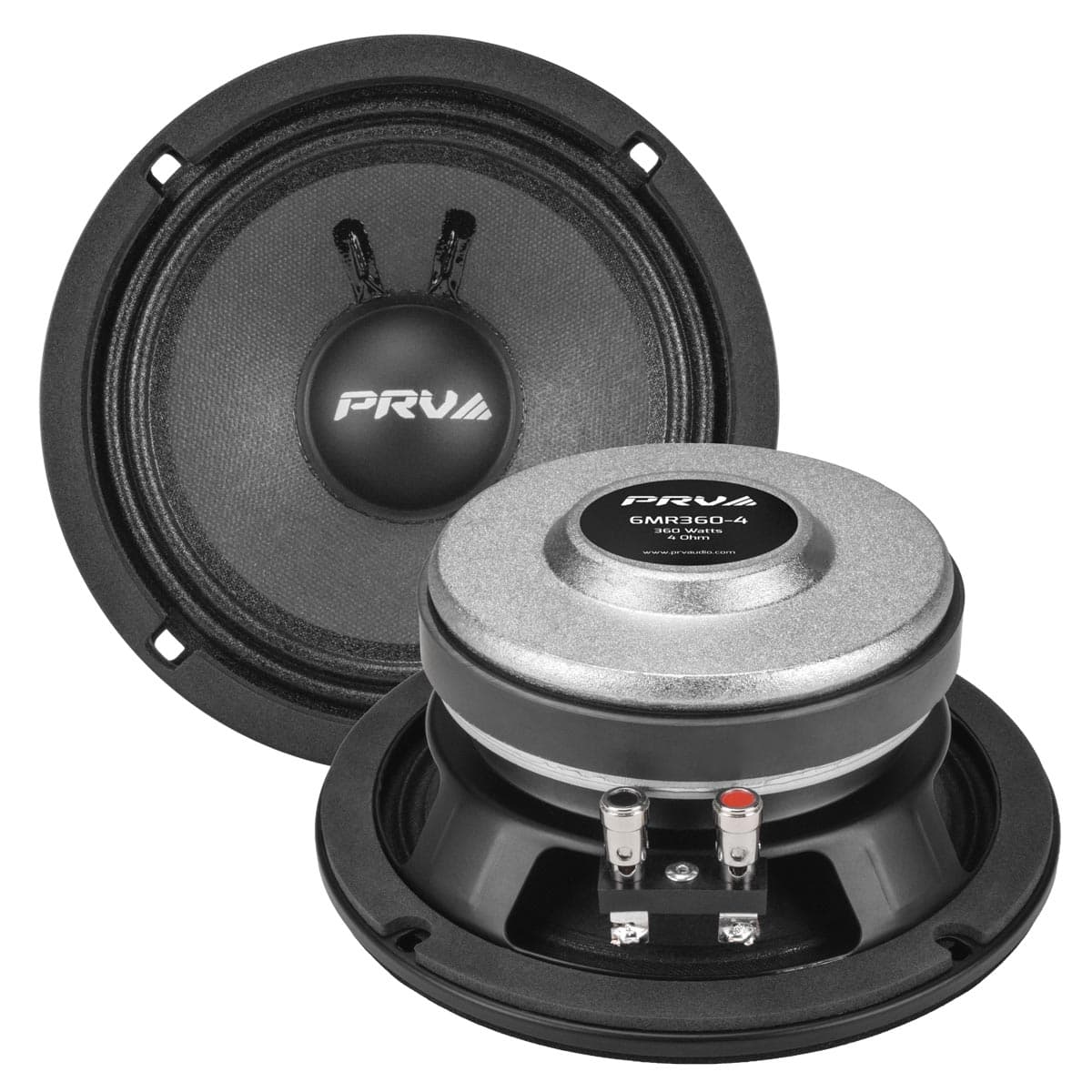

PRV Audio 6MR360-4 4Ω
4 Ω · 100–7500 Hz
No current price
- Fs
- 143Hz
- Xmax
- 4mm
- SPL
- 95dB
- Pe
- –
- BL
- 6.7T·m
- Vd
- 58cm³
- Qts
- 0.57
- Vas
- 4L
PRV Audio 6MR360-4 is a 6.5-inch 4 ohm LF driver. The validated T/S data includes Fs 143 Hz, Qts 0.57, Vas 3.8 L, Xmax 4 mm, sensitivity 94.7 dB, plus 58 cm³ Vd and 238 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 143Hz
- Qts
- 0.57
- Qes
- 0.60
- Qms
- 13.2
- Vas
- 3.8L
- Re
- 3.1Ω
- Le
- 0.34mH
Motor and cone
- BL
- 6.7T·m
- Sd
- 145cm²
- Mms
- 10g
- Xmax
- 4mm
- Vd †
- 58cm³
- Voice coil
- 37mm
Power and response
- Sensitivity †
- 94.7dB
- Manufacturer sensitivity
- 94dB
- Impedance
- 4Ω
- Range
- 100–7500Hz
- EBP †
- 238 · Leans vented
Size and mounting
- Cutout
- 142mm
- Depth
- 77.5mm
- Weight
- 2kg
Other published values
- Cms
- 0.13mm/N
Other dimensions
- Mounting Depth
- 69.5
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
MF · Primary · 6.5″
- BL
- 6.7T·m
- Fs
- 143Hz
- Le
- 0.34mH
- Re
- 3.1Ω
- Sd
- 145cm²
- Cms
- 0.13mm/N
- Mms
- 10g
- Qes
- 0.60
- Qms
- 13.2
- Qts
- 0.57
- SPL
- 94.7dB
- Vas
- 3.8L
- Xmax
- 4mm
- Impedance
- 4Ω
- Sensitivity
- 94dB
- Low limit
- 100Hz
- Calculated sensitivity †
- 94.7dB
- High limit
- 7500Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 37mm
- Weight
- 2kg
- Depth
- 77.5mm
- Mounting Depth
- 69.5
- Cutout
- 142mm
02
Compare
Same-size drivers, compared with the 6MR360-4. Clear differences are green when better and red when worse.
This driver6MR360-4
Best price
–
Fs
143 Hz
Qts
0.57
Vas
3.8 L
BL
6.7 T·m
Xmax
4 mm
Sensitivity
94.7 dB
Power
–
REDCATT61FHM-2
£20.10Fs44 Hz −69%, better
Qts0.52 −9%
Vas14.4 L +282%, worse
BL6.0 T·m −10%, worse
Xmax3.2 mm −20%, worse
Sensitivity85.3 dB −9.4, worse
FaitalPRO6FE125
£26.87Fs61 Hz −57%, better
Qts0.55 −4%
Vas15.1 L +301%, worse
BL6.8 T·m –
Xmax5.3 mm +31%, better
Sensitivity89.6 dB −5.1, worse
FaitalPRO6FE100
£27.18Fs61 Hz −57%, better
Qts0.55 −4%
Vas15.1 L +301%, worse
BL6.8 T·m –
Xmax5.3 mm +31%, better
Sensitivity89.6 dB −5.1, worse
Dayton AudioDA175-8
£30.18Fs39 Hz −73%, better
Qts0.58 –
Vas16.3 L +332%, worse
BL7.2 T·m +7%
Xmax4.3 mm +6%
Sensitivity83.4 dB −11.3, worse
Dayton AudioSIG150-4
£32.01Fs62 Hz −57%, better
Qts0.49 −14%, better
Vas8.7 L +131%, worse
BL5.2 T·m −22%, worse
Xmax4 mm –
Sensitivity87.8 dB −6.9, worse
Dayton AudioLW150-4
£41.50Fs63 Hz −56%, better
Qts0.64 +12%, worse
Vas3.5 L −7%
BL6.5 T·m –
Xmax4 mm –
Sensitivity82.8 dB −11.9, worse
PRV Audio6MR400-4
£48.94Fs144 Hz –
Qts0.60 +5%
Vas4.4 L +17%, worse
BL6.4 T·m −5%
Xmax3.3 mm −19%, worse
Sensitivity95.2 dB +0.5
EminenceALPHA-6A
£57.54Fs103 Hz −28%, better
Qts0.54 −5%
Vas5.8 L +54%, worse
BL8 T·m +19%, better
Xmax3.5 mm −13%, worse
Sensitivity92.3 dB −2.4, worse
WavecorWF168WA02
£61.15Fs49 Hz −66%, better
Qts0.52 −9%
Vas24.6 L +553%, worse
BL6.4 T·m −4%
Xmax3 mm −25%, worse
Sensitivity89.2 dB −5.5, worse
EminenceBETA-6A
£64.09Fs123 Hz −14%, better
Qts0.56 –
Vas3.5 L −7%
BL8.1 T·m +21%, better
Xmax4.5 mm +13%, better
Sensitivity92 dB −2.7, worse
CIARECX171
£78.29Fs67 Hz −53%, better
Qts0.55 −4%
Vas13.6 L +261%, worse
BL4.6 T·m −31%, worse
Xmax4.3 mm +7%
Sensitivity90 dB −4.7, worse
FaitalPRO6PR130
£122.42Fs175 Hz +22%, worse
Qts0.48 −16%, better
Vas4.2 L +11%, worse
BL11.4 T·m +70%, better
Xmax4.6 mm +15%, better
Sensitivity98 dB +3.3, better
PRV Audio6MR500-NDY
£137.63Fs105 Hz −27%, better
Qts0.53 −7%
Vas5.1 L +36%, worse
BL9.8 T·m +47%, better
Xmax4.2 mm +5%
Sensitivity92.4 dB −2.3, worse
PRV Audio6MR360
No current priceFs128 Hz −10%, better
Qts0.60 +5%
Vas4.9 L +31%, worse
BL8.3 T·m +24%, better
Xmax4 mm –
Sensitivity94.2 dB −0.5
HiViW6
No current priceFs40 Hz −72%, better
Qts0.52 −9%
Vas25.1 L +566%, worse
BL6.7 T·m –
Xmax4.3 mm +7%
Sensitivity86 dB −8.7, worse
WavecorWF168OM02
No current priceFs40 Hz −72%, better
Qts0.54 −5%
Vas29.5 L +682%, worse
BL6 T·m −10%, worse
Xmax4.2 mm +5%
Sensitivity87.2 dB −7.5, worse
CIAREPWA6.38
No current priceFs77 Hz −46%, better
Qts0.56 –
Vas5.6 L +49%, worse
BL8.7 T·m +30%, better
Xmax4 mm –
Sensitivity88.2 dB −6.5, worse
PRV Audio6MB400
No current priceFs117 Hz −18%, better
Qts0.60 +5%
Vas5.7 L +51%, worse
BL8.3 T·m +23%, better
Xmax4 mm –
Sensitivity93.6 dB −1.1
CIAREHMB165
No current priceFs86 Hz −40%, better
Qts0.53 −7%
Vas8.6 L +128%, worse
BL7 T·m +4%
Xmax3.5 mm −13%, worse
Sensitivity91.4 dB −3.3, worse
CIARECXI160
No current priceFs91 Hz −36%, better
Qts0.51 −11%, better
Vas7.8 L +107%, worse
BL6.8 T·m –
Xmax4.5 mm +13%, better
Sensitivity92.2 dB −2.5, worse
CelestionNTR06-1705B
No current priceFs133 Hz −7%
Qts0.44 −22%, better
Vas3.6 L −4%
BL10.7 T·m +60%, better
Xmax4 mm –
Sensitivity93.7 dB −1
PRV Audio6MB400-4
No current priceFs125 Hz −13%, better
Qts0.52 −9%
Vas5.3 L +41%, worse
BL6.6 T·m –
Xmax3 mm −25%, worse
Sensitivity94.7 dB –
No photo
PHL Audio1120
No current priceFs135 Hz −6%
Qts0.56 –
Vas4.4 L +17%, worse
BL8.5 T·m +27%, better
Xmax2 mm −50%, worse
Sensitivity94.4 dB –
No photo
PHL Audio1120NDU
No current priceFs135 Hz −6%
Qts0.56 –
Vas4.4 L +17%, worse
BL8.5 T·m +27%, better
Xmax2 mm −50%, worse
Sensitivity94.4 dB –
Audio Technology15 H 52 06 13 SDKAM-LR
No current priceFs65 Hz −55%, better
Qts0.45 −21%, better
Vas9.2 L +144%, worse
BL6.4 T·m −4%
Xmax4 mm –
Sensitivity89.1 dB −5.6, worse
Dayton AudioCFC180-4
No current priceFs52 Hz −64%, better
Qts0.43 −25%, better
Vas11.5 L +205%, worse
BL6.8 T·m –
Xmax4 mm –
Sensitivity87.1 dB −7.6, worse
Dayton AudioCFC180-8
No current priceFs51 Hz −64%, better
Qts0.51 −11%, better
Vas12.4 L +230%, worse
BL9 T·m +34%, better
Xmax4 mm –
Sensitivity86.5 dB −8.2, worse
PeerlessSDS-160F25PR01-08
No current priceFs48 Hz −66%, better
Qts0.58 –
Vas21.8 L +478%, worse
BL6.6 T·m –
Xmax8.1 mm +101%, better
Sensitivity87.5 dB −7.2, worse
PRV Audio6MR400CF-4
No current priceFs131 Hz −8%
Qts0.76 +33%, worse
Vas4.1 L +9%
BL6.3 T·m −6%
Xmax3.5 mm −13%, worse
Sensitivity92.8 dB −1.9
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
