Overview
LF DriverNTR06 series
Celestion

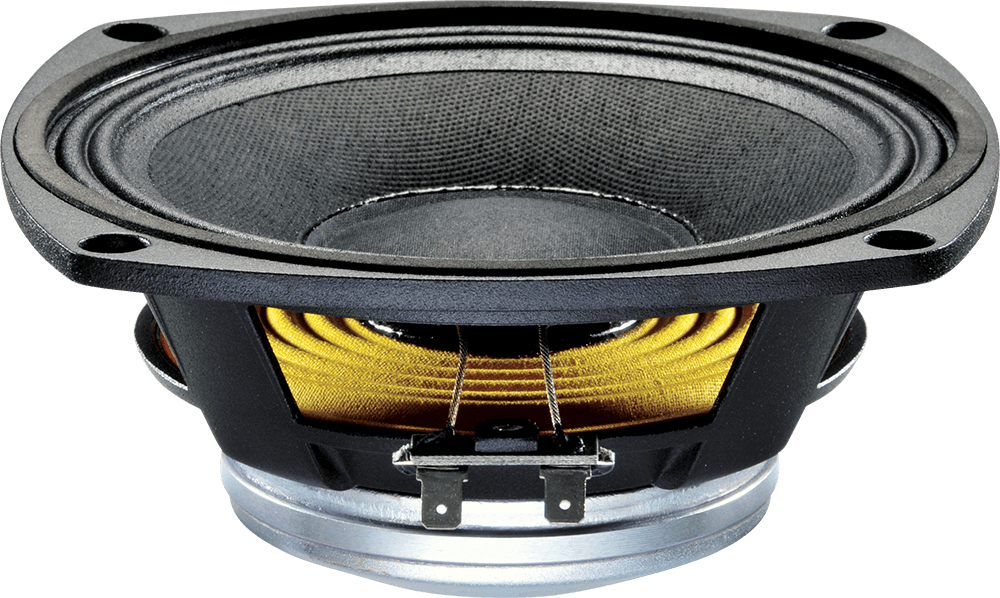

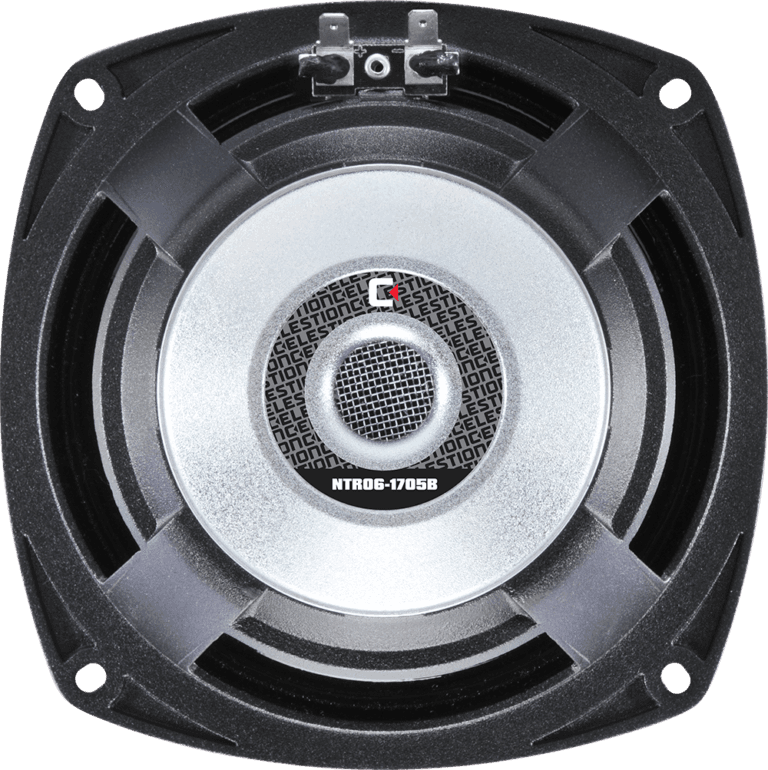

Celestion NTR06-1705B
Celestion NTR06-1705B is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 133Hz, Qts 0.44, Vas 3.6L, Xmax 4mm, sensitivity 93.7dB, plus 62cm³ Vd and 231 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £110.00.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
93.7dB
95.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
231
Vented alignment
Vd
62cm³

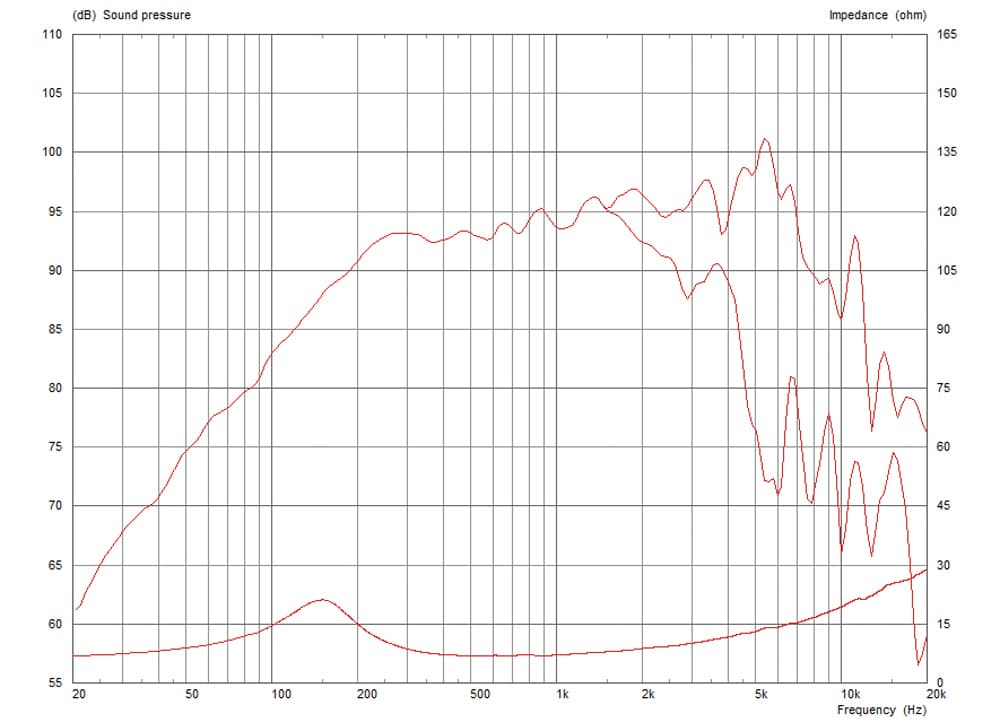

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence179 selected pixels of 356
T/S Parameters
Valid
Fs133Hz
Qts0.44
Qes0.58
Qms1.9
Vas3.6L
Re5.9Ω
Le0.21mH
BL10.7Tm
Sd154cm²
Mms13g
Xmax4.0mm
SPL94dB
Power150W
Impedance8Ω
Voice Coil44mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£110.00
inc VAT
Out of stock
Best current price
Updated 17 May 2026
leanbusiness
£110.00
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter189.0mm
Overall Depth71.0mm
Cutout Diameter150.0mm
Bolt Circle Diameter173.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
NTR06-1705B
6.5"
Best current price
£110.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
44%
Similarity
66% cheaper£37.20
FaitalPRO
6FE400
6"
Lower price
Xmax4.8mm+19%
Qts0.36-19%
BL10.5Tm-2%
Vas5L+38%
Qes0.4-31%
57%
Similarity
63% cheaper£40.47
CIARE
CME160
6.5"
Lower price
Xmax3.5mm-12%
Qts0.4-10%
BL7.6Tm-29%
Vas4.5L+24%
Qes0.45-22%
68%
Similarity
61% cheaper£42.73
Lavoce
MAF061.50
6.5"
Lower price
Xmax3.6mm-10%
Qts0.52+18%
BL10.5Tm-1%
Vas1.9L-48%
Qes0.57-1%
69%
Similarity
59% cheaper£44.66
FaitalPRO
6FE300
6"
Lower price
Xmax3.9mm-3%
Qts0.46+4%
BL10Tm-6%
Vas4.7L+29%
Qes0.48-17%
71%
Similarity
54% cheaper£50.51
CIARE
NDI6
6.5"
Lower price
Xmax3mm-25%
Qts0.46+4%
BL10.5Tm-2%
Vas2.5L-31%
Qes0.54-6%
39%
Similarity
48% cheaper£57.54
Eminence
ALPHA-6A
6"
Lower price
Xmax3.5mm-12%
Qts0.54+22%
BL8Tm-25%
Vas5.8L+60%
Qes0.6+4%
67%
Similarity
9% more£120.06
Beyma
6G40ND
6.5"
Higher price
Xmax3mm-25%
Qts0.38-14%
BL10.6Tm-1%
Vas3.7L+2%
Qes0.45-22%
69%
Similarity
FaitalPRO
6PR130
6"
Xmax4.6mm+15%
Qts0.48+9%
BL11.4Tm+7%
Vas4.2L+16%
Qes0.57-1%
69%
Similarity
Beyma
106MI108
6.5"
Xmax3mm-25%
Qts0.51+15%
BL10.8Tm+1%
Vas3.1L-15%
Qes0.55-5%
57%
Similarity
PRV Audio
6MR500-NDY
6"
Xmax4.2mm+5%
Qts0.53+20%
BL9.8Tm-8%
Vas5.1L+41%
Qes0.54-6%
56%
Similarity
PRV Audio
6MR500-NDY-4
6"
Xmax4.4mm+10%
Qts0.43-3%
BL8.8Tm-18%
Vas5.1L+42%
Qes0.47-18%
48%
Similarity

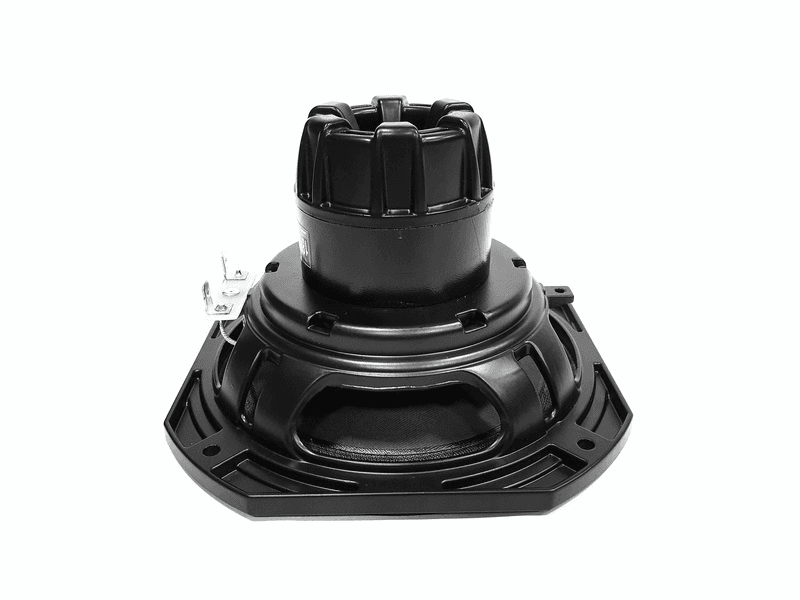

Eighteen Sound
6NTLW2000
6.5"
Xmax4.9mm+23%
Qts0.35-21%
BL11.6Tm+9%
Vas4.6L+27%
Qes0.38-34%
