Name: B&C 6MD38 8 Ohm
Brand: B&C
SKU: 6MD38
Availability: InStock

Media

B&C 6MD38 6.5 inch 8 ohm loudspeaker driver view 1

B&C 6MD38 6.5 inch 8 ohm loudspeaker driver view 2

B&C 6MD38 6.5 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver6MD series

B&C

B&C 6MD38

B&C 6MD38 is a 6.5" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 130Hz, Qts 0.44, Vas 3L, Xmax 2mm, sensitivity 93.3dB, plus 26cm³ Vd and 265 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £79.00.

Size

6.5"

Impedance

8Ω

RMS Power

120W

Sensitivity

93.3dB

96.0dBmanufacturer; using T/S-derived value (2.7dB delta).

EBP

265

Vented alignment

V_d

26cm³

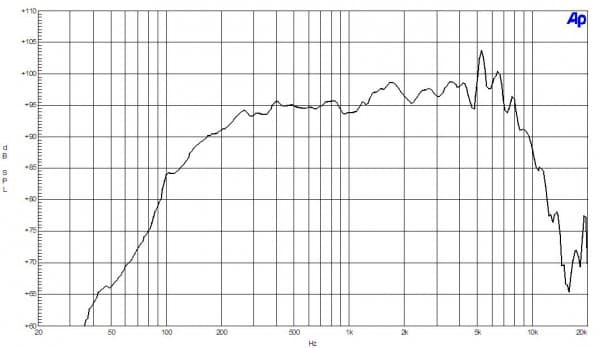

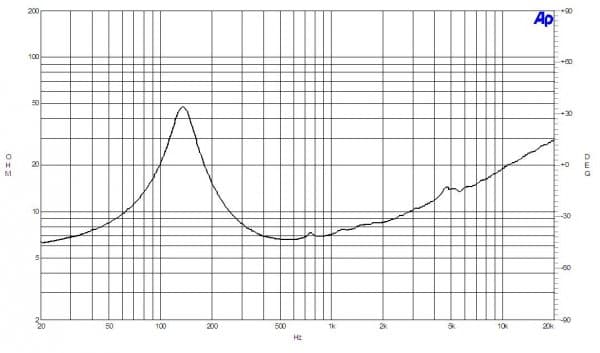

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs130Hz

Qts0.44

Qes0.49

Qms3.7

Vas3.0L

Re5.7Ω

Le0.25mH

BL10.5Tm

Sd132cm²

Mms12g

Xmax2.0mm

SPL93dB

Power120W

Power Nominal120W

Impedance8Ω

Min Impedance6.5Ω

F Low130Hz

F High6000Hz

Voice Coil38mm

Flux Density1.40T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£79.00

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight2.3kg

Diameter187.0mm

Overall Depth82.0mm

Cutout Diameter145.0mm

Bolt Circle Diameter172.0mm

Additional Manufacturer Specs

Bl10.5 Tm

Fs130 Hz

Le0.25 mH

Re5.7 Ω

Sd132 cm² (20.5 in²)

Ebp265 Hz

Mms12 g

Qes0.49

Qms3.7

Qts0.44

Vas3 dm³ (0.1 ft³)

η01.4 %

ConeRCK06MD388

Xmax2 mm

Xvar4.5 mm

SpiderSingle

Cone ShapeExponential

Pole DesignT-Pole

Winding Depth9 mm (0.35 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialFerrite

Nominal Diameter170 mm (6.5 in)

Winding MaterialAluminium

Magnetic Gap Depth6 mm (0.25 in)

Bolt Circle Diameter172 mm (6.7 in)

Woofer Cone TreatmentNone

Baffle Cutout Diameter145 mm (5.7 in)

Flange And Gasket Thickness9 mm (0.35 in)

Air Volume Occupied By Driver0.8 dm³ (0.03 ft³)
