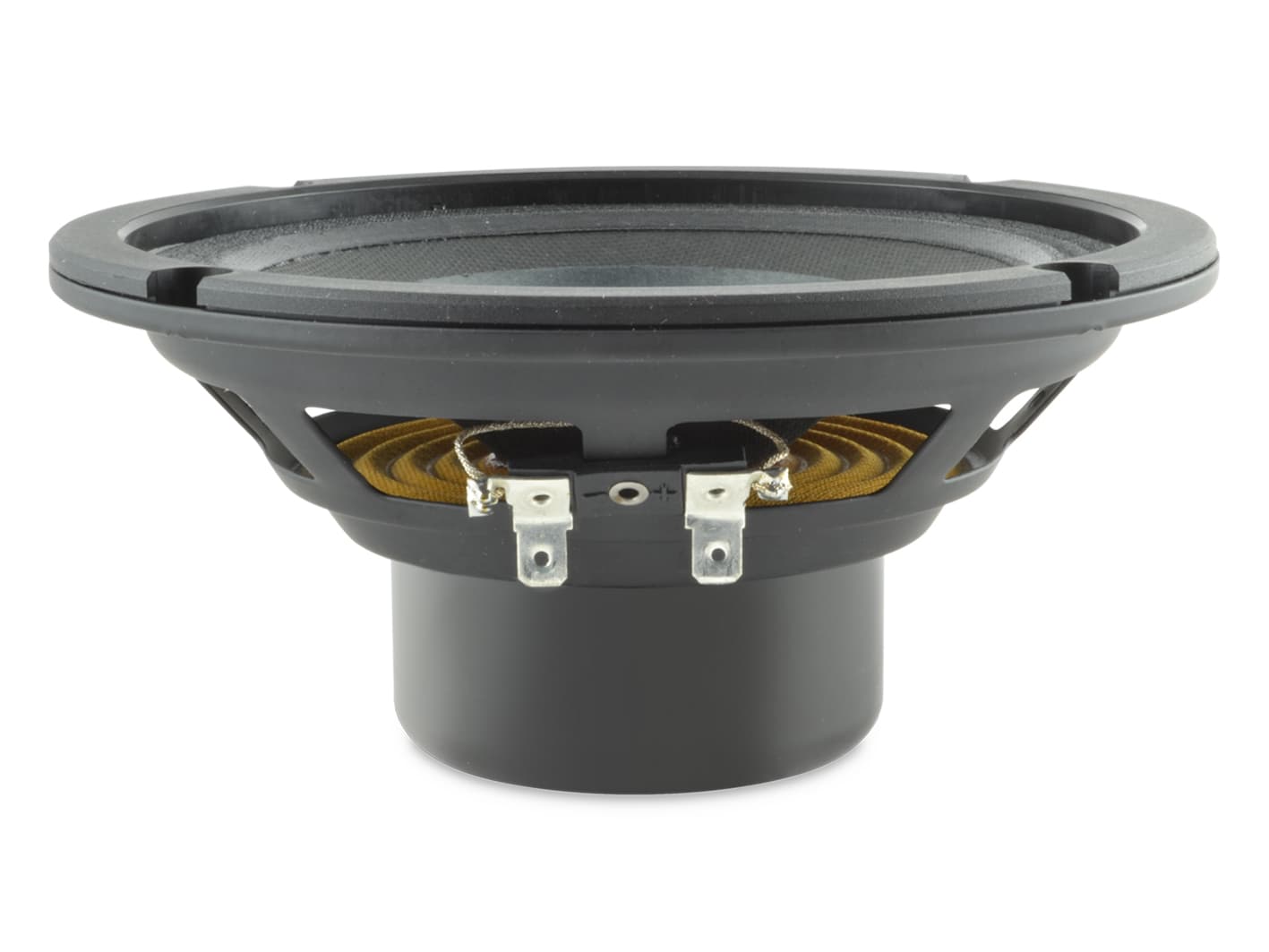

Dayton Audio E150HE-44 8Ω
8 Ω · 25–3000 Hz
£145.05
<0.1%Audiophonics · In stock · All 2 offers
- Fs
- 35Hz
- Xmax
- 14.7mm
- SPL
- 83dB
- Pe
- 200W
- BL
- 9.6T·m
- Vd
- 200cm³
- Qts
- 0.46
- Vas
- 16L
Dayton Audio E150HE-44 is a 5.5-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.46, Vas 16.1 L, Xmax 14.7 mm, sensitivity 83.1 dB, plus 200 cm³ Vd and 65 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £145.05.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.46
- Qes
- 0.54
- Qms
- 2.9
- Vas
- 16.1L
- Re
- 6.8Ω
- Le
- 1.50mH
Motor and cone
- BL
- 9.6T·m
- Sd
- 136cm²
- Mms
- 33g
- Xmax
- 14.7mm
- Vd †
- 200cm³
Power and response
- Sensitivity †
- 83.1dB
- Manufacturer sensitivity
- 83.8dB
- Power
- 200W
- Impedance
- 8Ω
- Range
- 25–3000Hz
- EBP †
- 65 · Sealed or vented
Size and mounting
- Diameter
- 181.5mm
- Cutout
- 122mm
- Depth
- 116mm
- Weight
- 3.9kg
Other published values
- Cms
- 0.61mm/N
- Power Peak
- 400
† Calculated by bits from the published values
What this validation status means
Everything else Dayton Audio lists
LF · Primary · 5.5″
- BL
- 9.6T·m
- Fs
- 35Hz
- Le
- 1.50mH
- Re
- 6.8Ω
- Sd
- 136cm²
- Cms
- 0.61mm/N
- Mms
- 33g
- Qes
- 0.54
- Qms
- 2.9
- Qts
- 0.46
- SPL
- 83.1dB
- Vas
- 16.1L
- Xmax
- 14.7mm
- Power
- 200W
- Impedance
- 8Ω
- Power Peak
- 400
- Sensitivity
- 83.8dB
- Low limit
- 25Hz
- Calculated sensitivity †
- 83.1dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 83.8dB
- Weight
- 3.9kg
- Diameter
- 181.5mm
- Depth
- 116mm
- Cutout
- 122mm
