Peerless HDS-P830874 8Ω
8 Ω
£52.62
SteadyBlue Aran · 11 in stock · All 3 offers
- Fs
- 61Hz
- Xmax
- 7.3mm
- SPL
- 88dB
- Pe
- 75W
- BL
- 8.7T·m
- Vd
- 105cm³
- Qts
- 0.51
- Vas
- 11L

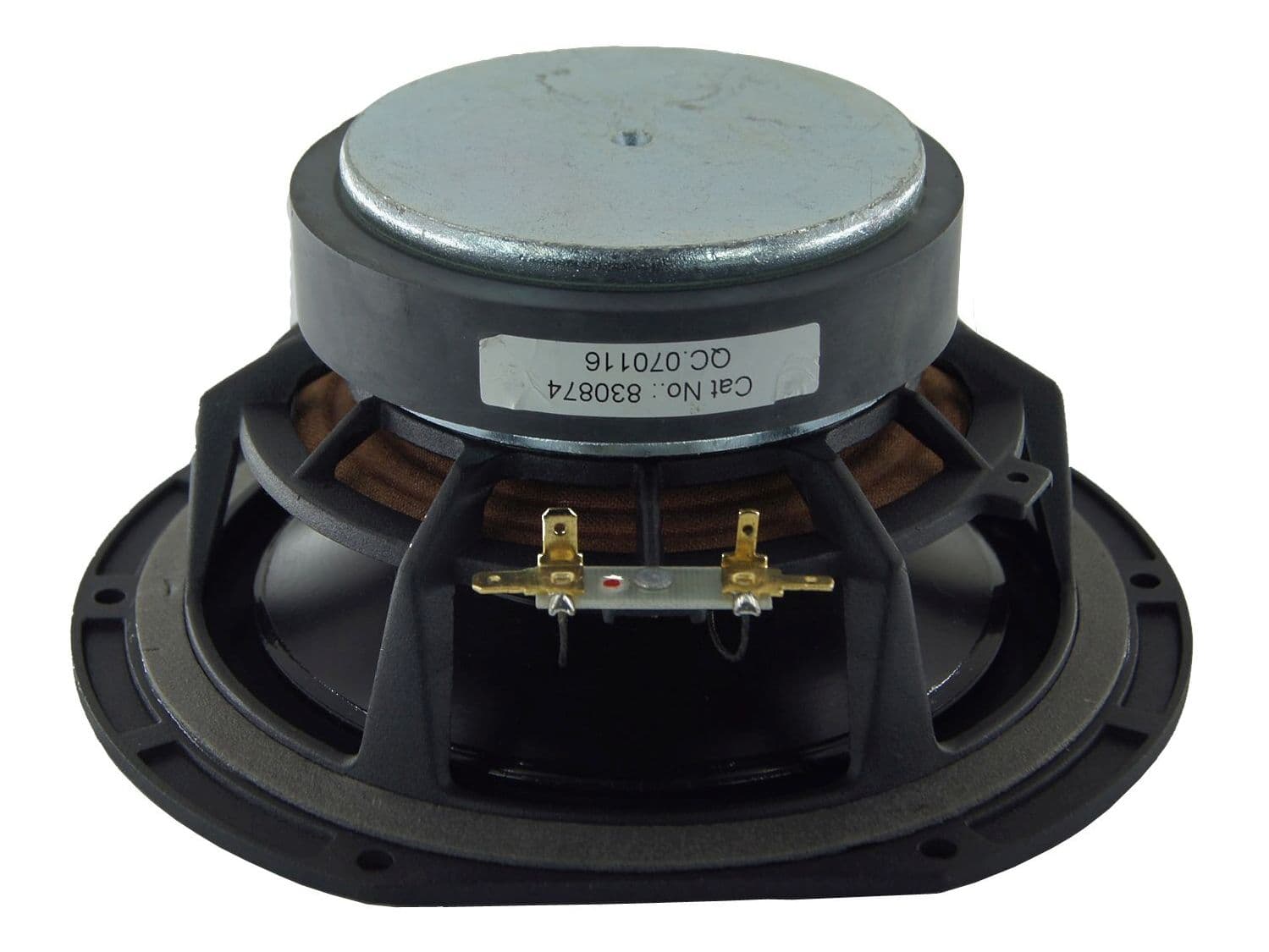

Peerless HDS-P830874 is a 6.5-inch 8 ohm LF driver rated at 75 W RMS. The validated T/S data includes Fs 61 Hz, Qts 0.51, Vas 10.6 L, Xmax 7.3 mm, sensitivity 88.1 dB, plus 105 cm³ Vd and 103 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £34.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 61Hz
- Qts
- 0.51
- Qes
- 0.59
- Qms
- 3.7
- Vas
- 10.6L
- Re
- 6.3Ω
- Le
- 0.42mH
Motor and cone
- BL
- 8.7T·m
- Sd
- 143cm²
- Mms
- 19g
- Xmax
- 7.3mm
- Vd †
- 105cm³
Power and response
- Sensitivity †
- 88.1dB
- Manufacturer sensitivity
- 87.7dB
- Power
- 75W
- Impedance
- 8Ω
- EBP †
- 103 · Leans vented
Size and mounting
- Weight
- 1.6kg
Other published values
- Cms
- 0.37mm/N
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 6.496062992125984″
- BL
- 8.7T·m
- Fs
- 61Hz
- Le
- 0.42mH
- Re
- 6.3Ω
- Sd
- 143cm²
- Cms
- 0.37mm/N
- Mms
- 19g
- Qes
- 0.59
- Qms
- 3.7
- Qts
- 0.51
- SPL
- 88.1dB
- Vas
- 10.6L
- Xmax
- 7.3mm
- Power
- 75W
- Impedance
- 8Ω
- Sensitivity
- 87.7dB
- Calculated sensitivity †
- 88.1dB
- Manufacturer sensitivity
- 87.7dB
- Weight
- 1.6kg
