Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Overview
LF DriverRevelator series
Scanspeak
Scanspeak 15W/8530K01
Scanspeak 15W/8530K01 is a 6" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 38Hz, Qts 0.50, Vas 17L, Xmax 6.5mm, sensitivity 84.3dB, plus 62cm³ Vd and 69 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £191.95.
Size
6"
Impedance
8Ω
RMS Power
60W
Sensitivity
84.3dB
EBP
69
Either alignment
Vd
62cm³
T/S Parameters
Valid
Fs38Hz
Qts0.50
Qes0.55
Qms5.8
Vas17.0L
Re5.9Ω
Le0.30mH
BL5.8Tm
Sd95cm²
Mms13g
Xmax6.5mm
SPL84dB
Power60W
Impedance8Ω
Min Impedance6.7Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£191.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
15W/8530K01
6"
Best current price
£191.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
68%
Similarity
86% cheaper£26.87
FaitalPRO
6FE125
6"
Lower price
Xmax5.3mm-19%
Qts0.55+10%
BL6.8Tm+17%
Vas15.1L-11%
Qes0.6+9%
68%
Similarity
86% cheaper£27.18
FaitalPRO
6FE100
6"
Lower price
Xmax5.3mm-19%
Qts0.55+10%
BL6.8Tm+17%
Vas15.1L-11%
Qes0.6+9%
30%
Similarity
86% cheaper£27.70
Dayton Audio
DS135-8
5"
Lower price
Xmax4.8mm-25%
Qts0.39-22%
BL6.2Tm+7%
Vas7.3L-57%
Qes0.48-13%
29%
Similarity
86% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm-25%
Qts0.38-24%
BL6.2Tm+7%
Vas7.9L-53%
Qes0.47-15%
28%
Similarity
49% cheaper£98.16
B&C
6NDL38
6.5"
Lower price
Xmax6mm-8%
Qts0.39-22%
BL7.8Tm+34%
Vas7.1L-58%
Qes0.4-27%
66%
Similarity
3% cheaper£185.95
Scanspeak
15W/8531K00
6"
Lower price
Xmax6.5mm0%
Qts0.38-24%
BL6.6Tm+14%
Vas16.7L-2%
Qes0.42-24%
67%
Similarity
2% cheaper£188.95
Scanspeak
15W/8530K00
6"
Lower price
Xmax6.5mm0%
Qts0.39-22%
BL6.6Tm+14%
Vas16L-6%
Qes0.43-22%
72%
Similarity
CIARE
HW159
6.5"
Xmax5.8mm-11%
Qts0.49-2%
BL6.3Tm+9%
Vas19.4L+14%
Qes0.61+11%
69%
Similarity
Beyma
206B30P8
6.5"
Xmax5.5mm-15%
Qts0.50%
BL6.8Tm+17%
Vas15.6L-8%
Qes0.6+9%
69%
Similarity
SEAS
E0051-04/06 C16N001/F
6.5"
Xmax7mm+8%
Qts0.49-2%
BL4.4Tm-24%
Vas15L-12%
Qes0.58+5%
66%
Similarity

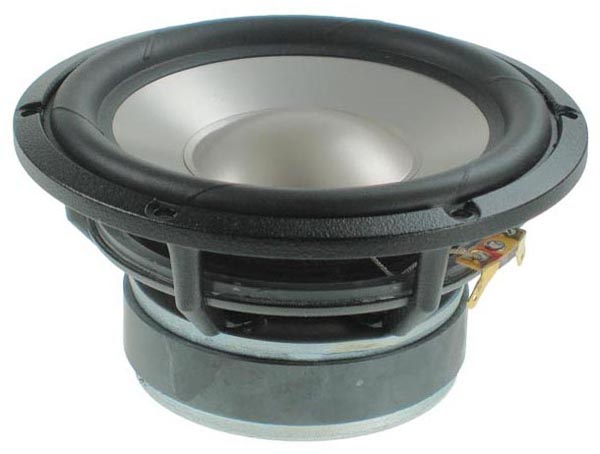

SEAS
H1480 L16RN-SL
5"
Xmax6mm-8%
Qts0.45-10%
BL6.1Tm+5%
Vas19L+12%
Qes0.550%
66%
Similarity
Tang Band
W6-1916
6"
Xmax5mm-23%
Qts0.46-8%
BL5.8Tm0%
Vas23.7L+39%
Qes0.62+13%
