LF Driver
Tang Band

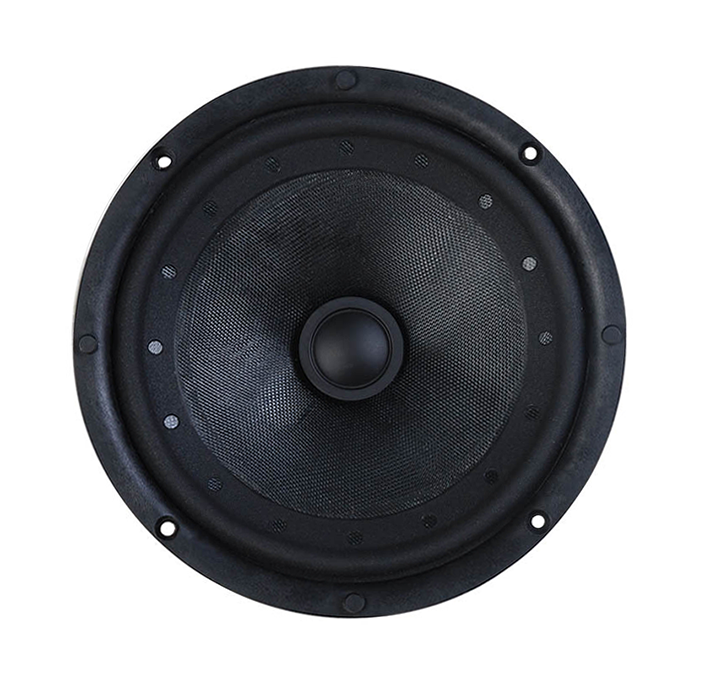

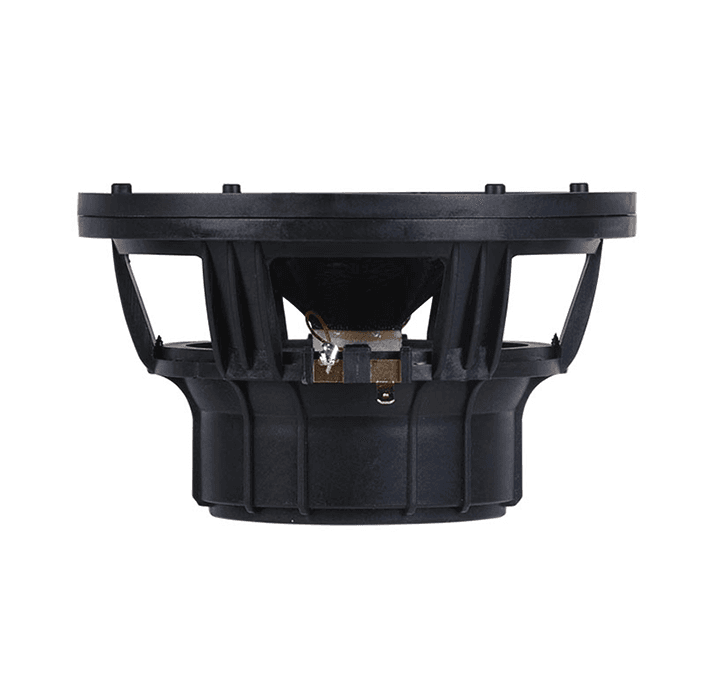

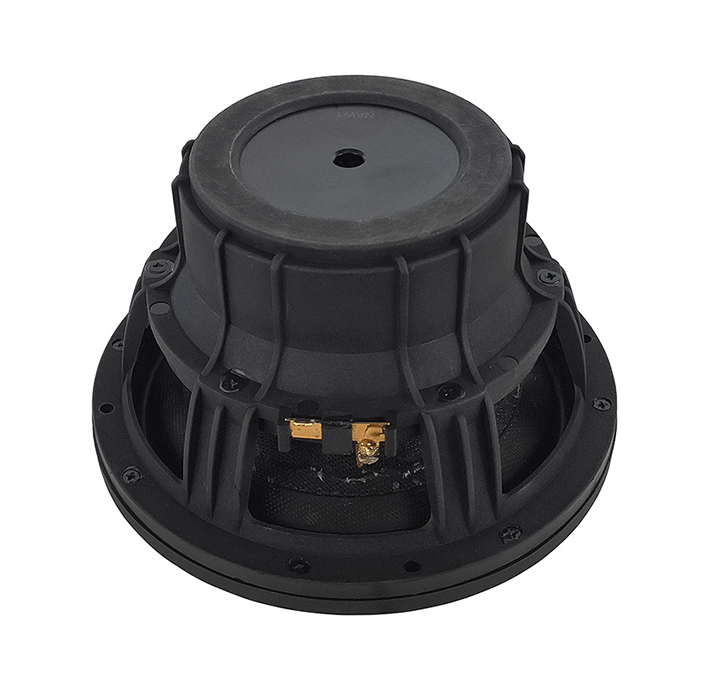

Tang Band W6-2090
Tang Band W6-2090 is a 6" 2 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 50Hz, Qts 0.49, Vas 13.1L, Xmax 4.8mm, sensitivity 86.8dB, plus 67cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
2Ω
RMS Power
30W
Sensitivity
86.8dB
88.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
91
Either alignment
Vd
67cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence2,158 selected pixels of 2,267 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,303 selected pixels of 3,404
T/S Parameters
Valid
Fs50Hz
Qts0.49
Qes0.55
Qms4.1
Vas13.1L
Re1.8Ω
Le0.04mH
BL4.1Tm
Sd140cm²
Mms17g
Xmax4.8mm
SPL87dB
Power30W
Impedance2Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W6-2090
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Tang Band
W6-2090
6"
Xmax4.8mm0%
Qts0.490%
BL4.1Tm0%
Vas13.1L0%
Qes0.550%
68%
Similarity
£32.19
Dayton Audio
SIG150-4
6"
Xmax4mm-17%
Qts0.490%
BL5.2Tm+26%
Vas8.7L-34%
Qes0.53-4%
66%
Similarity
CIARE
CW170
6.5"
Xmax4.3mm-10%
Qts0.47-4%
BL4.6Tm+12%
Vas18L+37%
Qes0.56+2%
56%
Similarity
Tang Band
W5-1685
5"
Xmax6mm+25%
Qts0.46-6%
BL4.7Tm+14%
Vas12.8L-3%
Qes0.53-4%
50%
Similarity
Peerless
SDS-135F25CP05-04
5.25"
Xmax5.5mm+14%
Qts0.54+10%
BL4.6Tm+10%
Vas7.4L-44%
Qes0.63+15%
36%
Similarity
£76.20
Monacor
SPH-145HQ
5"
Xmax3.5mm-27%
Qts0.44-10%
BL5.3Tm+29%
Vas9.4L-28%
Qes0.51-7%
31%
Similarity

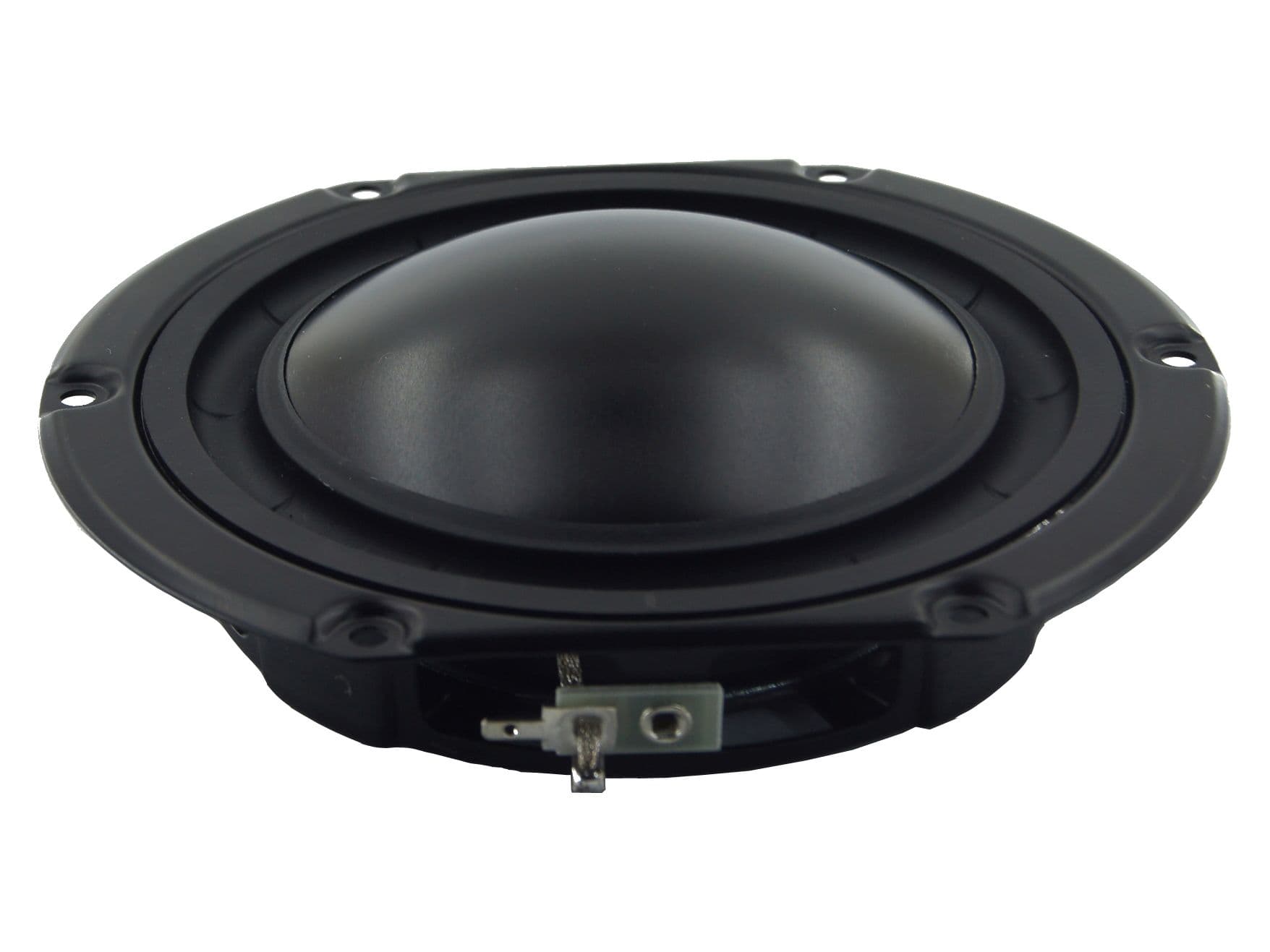

Peerless
GBS-135F25AL02-04
5.25"
Xmax5.4mm+12%
Qts0.59+20%
BL4.9Tm+19%
Vas5.3L-60%
Qes0.68+24%
27%
Similarity
Dayton Audio
RS125-4
5"
Xmax4mm-17%
Qts0.37-24%
BL3.6Tm-12%
Vas5.3L-60%
Qes0.45-18%
21%
Similarity
CIARE
HW129
5"
Xmax3.9mm-19%
Qts0.55+12%
BL5.2Tm+26%
Vas6.1L-53%
Qes0.76+38%
