LF DriverPrestige series
SEAS
SEAS H1217-08 CA18RLY
SEAS H1217-08 CA18RLY is a 6.5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 42Hz, Qts 0.47, Vas 32L, Xmax 5mm, sensitivity 88.3dB, plus 68cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.3dB
90.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
75
Either alignment
Vd
68cm³

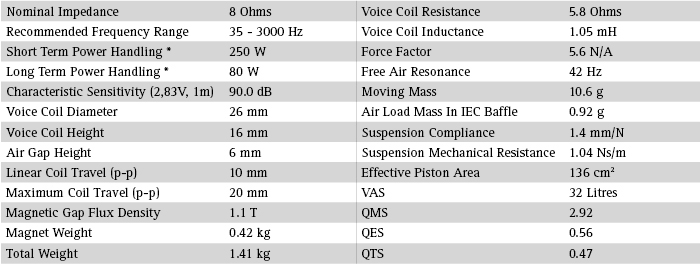

T/S Parameters
Valid
Fs42Hz
Qts0.47
Qes0.56
Qms2.9
Vas32.0L
Re5.8Ω
Le1.05mH
BL5.6Tm
Sd136cm²
Mms11g
Xmax5.0mm
SPL88dB
Power80W
Impedance8Ω
F Low35Hz
F High3000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

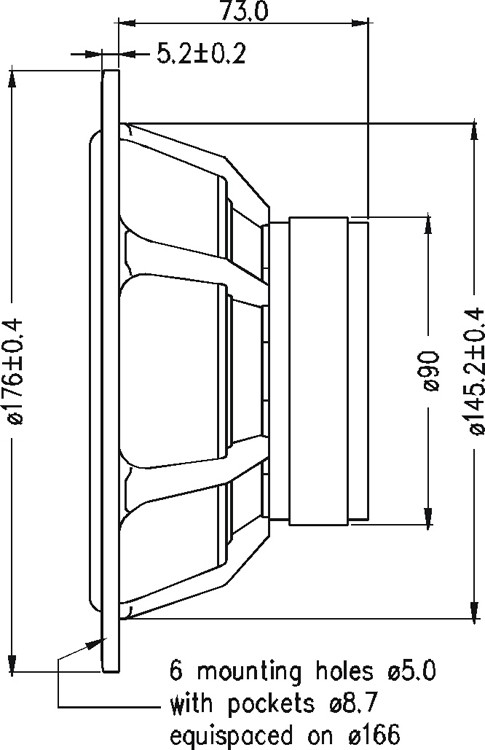

Dimensions & Physical
Weight1.4kg
