Overview
LF Driver
Tang Band

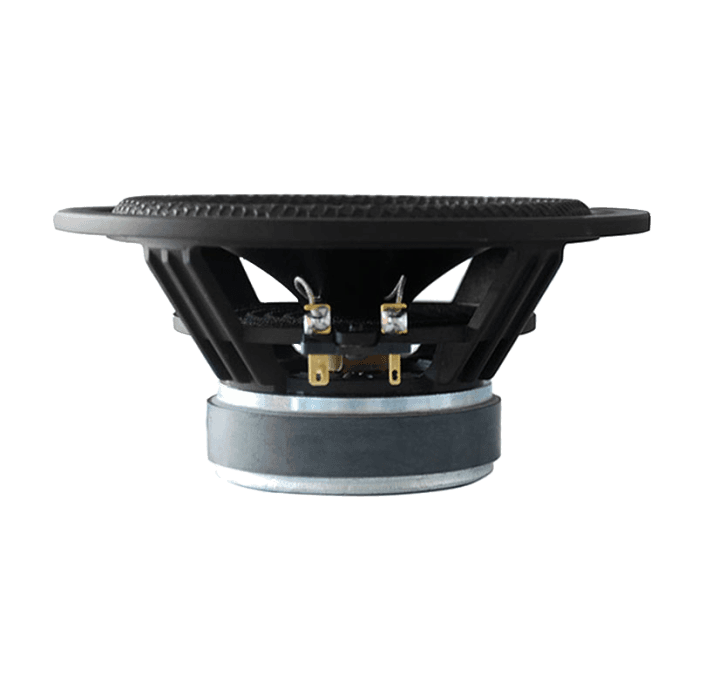

Tang Band W6-789E
Tang Band W6-789E is a 6" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 50Hz, Qts 0.46, Vas 41.5L, Xmax 4.3mm, sensitivity 92.2dB, plus 60cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
15W
Sensitivity
92.2dB
EBP
100
Either alignment
Vd
60cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence768 selected pixels of 2,456
T/S Parameters
Valid
Fs50Hz
Qts0.46
Qes0.50
Qms6.3
Vas41.5L
Re6.0Ω
Le0.13mH
BL5.1Tm
Sd140cm²
Mms7g
Xmax4.3mm
SPL92dB
Power15W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
