MonacorSP-167E
£26.45 · 14% less, betterFs62 Hz +41%, worse
Qts0.41 −11%, better
Vas17.9 L −42%, better
BL5.4 T·m –
Xmax2.5 mm −18%, worse
Sensitivity91.5 dB +2.1, better
6-inch LF driver · SB16 series · 25 mm voice coil · 30 W

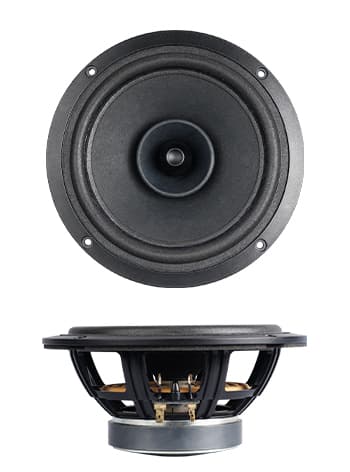

SB Acoustics SB16FRPC25-7 7Ω
7 Ω
£30.90
SteadySoundImports · 25 in stock · Ships from Netherlands · All 2 offers
- Fs
- 44Hz
- Xmax
- 3.0mm
- SPL
- 89dB
- Pe
- 30W
- BL
- 5.4T·m
- Vd
- 39cm³
- Qts
- 0.46
- Vas
- 31L

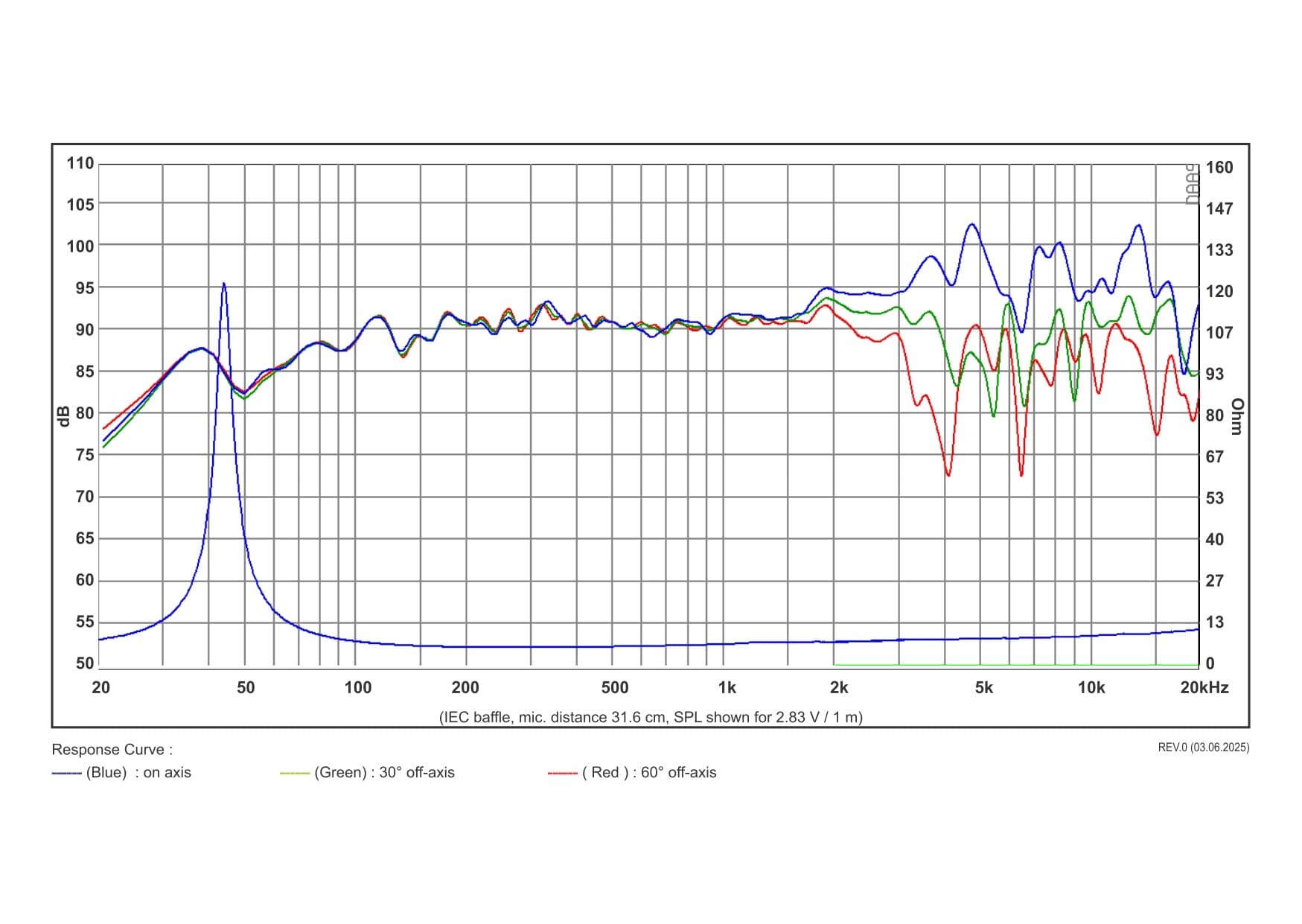

Published graphs
SB Acoustics SB16FRPC25-7 is a 6-inch 7 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.46, Vas 31 L, Xmax 3.0 mm, sensitivity 89.4 dB, plus 39 cm³ Vd and 92 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £30.90.
The published T/S values agree with each other
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.46
- Qes
- 0.48
- Qms
- 9
- Vas
- 31L
- Re
- 5.2Ω
- Le
- 0.22mH
Motor and cone
- BL
- 5.4T·m
- Sd
- 128cm²
- Mms
- 10g
- Xmax
- 3.0mm
- Vd †
- 39cm³
- Voice coil
- 25mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 89.4dB
- Manufacturer sensitivity
- 91dB
- Power
- 30W
- Impedance
- 7Ω
- EBP †
- 92 · Sealed or vented
Size and mounting
- Weight
- 1.0kg
Other published values
- Cms
- 1.33mm/N
Sensitivity shows 89.4 dB, calculated from the T/S values. SB Acoustics publishes 91.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 6″
- BL
- 5.4T·m
- Fs
- 44Hz
- Le
- 0.22mH
- Re
- 5.2Ω
- Sd
- 128cm²
- Cms
- 1.33mm/N
- Mms
- 10g
- Qes
- 0.48
- Qms
- 9
- Qts
- 0.46
- SPL
- 89.4dB
- Vas
- 31L
- Xmax
- 3.0mm
- Power
- 30W
- Impedance
- 7Ω
- Flux density
- 1.05T
- Sensitivity
- 91dB
- Calculated sensitivity †
- 89.4dB
- Manufacturer sensitivity
- 91dB
- Voice coil
- 25mm
- Weight
- 1.0kg
02
Compare
Same-size drivers, compared with the SB16FRPC25-7. Clear differences are green when better and red when worse.
This driverSB16FRPC25-7
Best price
£30.90
Fs
44 Hz
Qts
0.46
Vas
31 L
BL
5.4 T·m
Xmax
3.0 mm
Sensitivity
89.4 dB
Power
30 W
MonacorSPH-174KE
£29.67 · 4% lessFs42 Hz −5%
Qts0.51 +11%, worse
Vas26 L −16%, better
BL5.9 T·m +9%
Xmax3 mm –
Sensitivity86.8 dB −2.6, worse
Scanspeak18W/8424G00
£54.39 · 76% more, worseFs54 Hz +23%, worse
Qts0.45 –
Vas20.3 L −35%, better
BL6.6 T·m +22%, better
Xmax2.6 mm −15%, worse
Sensitivity90 dB +0.6
WavecorWF168WA06
£58.25 · 89% more, worseFs41 Hz −7%
Qts0.50 +9%
Vas27.7 L −11%, better
BL6.4 T·m +19%, better
Xmax3 mm –
Sensitivity87.5 dB −1.9
WavecorWF146WA01
£58.25 · 89% more, worseFs56 Hz +27%, worse
Qts0.42 −9%
Vas10 L −68%, better
BL5.1 T·m −6%
Xmax3 mm –
Sensitivity87.9 dB −1.5
Scanspeak18W/4424G00
£59.33 · 92% more, worseFs49 Hz +11%, worse
Qts0.38 −17%, better
Vas24.1 L −22%, better
BL5.2 T·m −4%
Xmax2.8 mm −8%
Sensitivity90.3 dB +0.9
WavecorWF168WA02
£61.27 · 98% more, worseFs49 Hz +11%, worse
Qts0.52 +13%, worse
Vas24.6 L −21%, better
BL6.4 T·m +19%, better
Xmax3 mm –
Sensitivity89.2 dB –
SB AcousticsSB17NAC35-8
£71.62 · 132% more, worseFs32 Hz −28%, better
Qts0.42 −9%
Vas33 L +6%
BL6.2 T·m +15%, better
Xmax5.5 mm +80%, better
Sensitivity85.6 dB −3.8, worse
MonacorSPH-145HQ
£72.22 · 134% more, worseFs52 Hz +18%, worse
Qts0.44 −4%
Vas9.4 L −70%, better
BL5.3 T·m –
Xmax3.5 mm +15%, better
Sensitivity86.2 dB −3.2, worse
WavecorWF132TU02
£79.43 · 157% more, worseFs62 Hz +41%, worse
Qts0.44 −4%
Vas9 L −71%, better
BL5.2 T·m −4%
Xmax3 mm –
Sensitivity88.7 dB −0.7
MonacorSPH-170
£81.37 · 163% more, worseFs38 Hz −14%, better
Qts0.44 −4%
Vas37 L +19%, worse
BL5.9 T·m +9%
Xmax3 mm –
Sensitivity87.7 dB −1.7
SEASH1217-08 CA18RLY
£91.74 · 197% more, worseFs42 Hz −5%
Qts0.47 –
Vas32 L +3%
BL5.6 T·m +4%
Xmax5 mm +64%, better
Sensitivity88.3 dB −1.1
WavecorWF166TU02
£97.58 · 216% more, worseFs50 Hz +14%, worse
Qts0.48 +4%
Vas22.3 L −28%, better
BL5 T·m −7%
Xmax3 mm –
Sensitivity89.5 dB –
WavecorWF168WA01
£97.90 · 217% more, worseFs48 Hz +8%
Qts0.43 −7%
Vas24.6 L −21%, better
BL5.1 T·m −6%
Xmax3 mm –
Sensitivity89.6 dB –
WavecorWF168WA05
£103.49 · 235% more, worseFs40 Hz −9%
Qts0.42 −9%
Vas27.7 L −11%, better
BL5 T·m −7%
Xmax3 mm –
Sensitivity88 dB −1.4
Tang BandW5-1611SAF
£122.65 · 297% more, worseFs60 Hz +36%, worse
Qts0.44 −4%
Vas11.7 L −62%, better
BL5.5 T·m –
Xmax3 mm –
Sensitivity88.9 dB −0.5
Tang BandW6-2144
£135.53 · 339% more, worseFs45 Hz –
Qts0.45 –
Vas34.6 L +12%, worse
BL5.5 T·m –
Xmax3 mm –
Sensitivity89.1 dB –
£154.26 · 399% more, worse
Fs42 Hz −5%
Qts0.39 −15%, better
Vas31 L –
BL6.6 T·m +22%, better
Xmax3 mm –
Sensitivity89.4 dB –
Scanspeak15W/8534T00
£156.76 · 407% more, worseFs32 Hz −27%, better
Qts0.39 −15%, better
Vas30 L −3%
BL5.5 T·m –
Xmax5 mm +64%, better
Sensitivity85.6 dB −3.8, worse
£279.67 · 805% more, worse
Fs67 Hz +52%, worse
Qts0.40 −13%, better
Vas6 L −81%, better
BL5.3 T·m –
Xmax3 mm –
Sensitivity87.4 dB −2, worse
WavecorWF166TU01
No current priceFs50 Hz +14%, worse
Qts0.45 –
Vas23.2 L −25%, better
BL5.2 T·m −4%
Xmax3.5 mm +15%, better
Sensitivity89.9 dB +0.5
WavecorWF168OM01
No current priceFs39 Hz −11%, better
Qts0.45 –
Vas29.5 L −5%
BL4.8 T·m −11%, worse
Xmax4.2 mm +38%, better
Sensitivity87.7 dB −1.7
Tang BandW6-1721
No current priceFs40 Hz −9%
Qts0.43 −7%
Vas29.4 L −5%
BL5.1 T·m −5%
Xmax8 mm +162%, better
Sensitivity87.9 dB −1.5
Tang BandW6-789E
No current priceFs50 Hz +14%, worse
Qts0.46 –
Vas41.5 L +34%, worse
BL5.1 T·m −5%
Xmax4.3 mm +39%, better
Sensitivity92.2 dB +2.8, better
CelestionTFX0512
No current priceFs69 Hz +57%, worse
Qts0.46 –
Vas5.4 L −83%, better
BL6.4 T·m +19%, better
Xmax3.3 mm +7%
Sensitivity87.6 dB −1.8
Tang BandW6-658I
No current priceFs45 Hz –
Qts0.44 −4%
Vas28.3 L −9%
BL6.3 T·m +17%, better
Xmax4.1 mm +34%, better
Sensitivity89.2 dB –
Tang BandW5-1611SA
No current priceFs60 Hz +36%, worse
Qts0.44 −4%
Vas13.0 L −58%, better
BL5.2 T·m −4%
Xmax3 mm –
Sensitivity88.7 dB −0.7
SB AcousticsSB17BAC35-8-COAX
No current priceFs35 Hz −20%, better
Qts0.33 −28%, better
Vas33.1 L +7%
BL5.7 T·m +6%
Xmax3.1 mm –
Sensitivity88.1 dB −1.3
Tang BandW5-1611SDF
No current priceFs60 Hz +36%, worse
Qts0.41 −11%, better
Vas15.2 L −51%, better
BL4.3 T·m −20%, worse
Xmax3 mm –
Sensitivity90.5 dB +1.1
WavecorWF146OM02
No current priceFs50 Hz +14%, worse
Qts0.51 +11%, worse
Vas13.6 L −56%, better
BL5.4 T·m –
Xmax3.3 mm +8%
Sensitivity86.9 dB −2.5, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £30.90, the lowest price | 25 in stock | Visit shop at SoundImports | |
Lean Audio | £28.78 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
