Overview
LF Driver
Tang Band

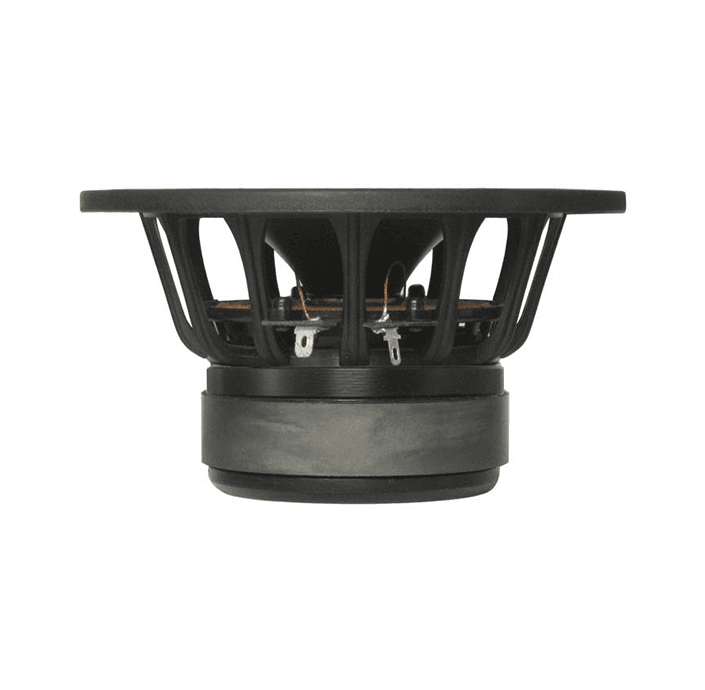

Tang Band W5-1611SDF
Tang Band W5-1611SDF is a 5" 4 ohm LF driver rated at 28W RMS. The validated T/S data includes Fs 60Hz, Qts 0.41, Vas 15.2L, Xmax 3mm, sensitivity 90.5dB, plus 28cm³ Vd and 128 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
28W
Sensitivity
90.5dB
89.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
128
Vented alignment
Vd
28cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,522 selected pixels of 1,759 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,703 selected pixels of 2,775
T/S Parameters
Valid
Fs60Hz
Qts0.41
Qes0.47
Qms3.2
Vas15.2L
Re3.6Ω
Le0.02mH
BL4.3Tm
Sd94cm²
Mms7g
Xmax3.0mm
SPL91dB
Power28W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
