LF DriverSB15 series
SB Acoustics
SB Acoustics SB15CRC30-8
SB Acoustics SB15CRC30-8 is a 5" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 40Hz, Qts 0.41, Vas 14.9L, Xmax 11mm, sensitivity 85.2dB, plus 90cm³ Vd and 87 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £81.08.
Size
5"
Impedance
8Ω
RMS Power
50W
Sensitivity
85.2dB
EBP
87
Either alignment
Vd
90cm³

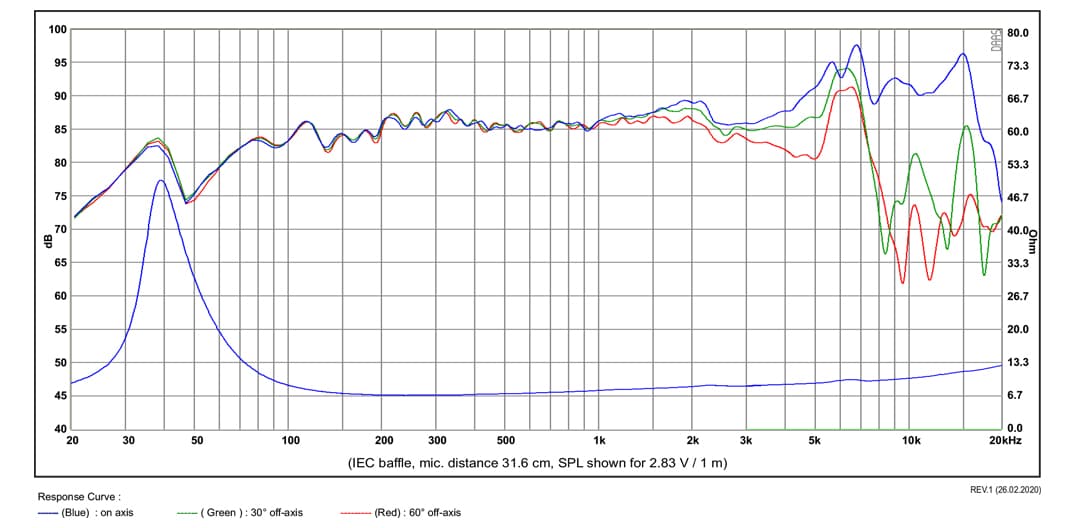

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence772 selected pixels of 2,369 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,050 selected pixels of 4,582
T/S Parameters
Valid
Fs40Hz
Qts0.41
Qes0.46
Qms3.5
Vas14.9L
Re5.9Ω
Le0.14mH
BL5.6Tm
Sd82cm²
Mms10g
Xmax11.0mm
SPL85dB
Power50W
Impedance8Ω
Voice Coil31mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£81.08
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB15CRC30-8
5"
Best current price
£81.08
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
69% cheaper£24.81
SB Acoustics
SB13PFCR25-8
5"
Lower price
Xmax9mm-18%
Qts0.33-20%
BL6.2Tm+11%
Vas13.4L-10%
Qes0.39-15%
77%
Similarity
40% cheaper£48.66
SB Acoustics
SB15MFC30-8
5"
Lower price
Xmax10mm-9%
Qts0.37-10%
BL5.6Tm0%
Vas17.7L+19%
Qes0.4-13%
64%
Similarity
39% cheaper£49.12
SB Acoustics
SB15NRX2C30-8
5"
Lower price
Xmax10mm-9%
Qts0.34-17%
BL5.8Tm+3%
Vas20L+34%
Qes0.37-20%
47%
Similarity
28% cheaper£58.31
SB Acoustics
SB12CACS25-8
4"
Lower price
Xmax10mm-9%
Qts0.37-10%
BL5.2Tm-7%
Vas6.5L-56%
Qes0.4-13%
79%
Similarity
23% cheaper£62.57
SB Acoustics
SB15NBAC30-8
5"
Lower price
Xmax10mm-9%
Qts0.37-10%
BL5.7Tm+2%
Vas17L+14%
Qes0.41-11%
80%
Similarity
6% cheaper£76.56
SB Acoustics
SB15CAC30-8
5"
Lower price
Xmax10mm-9%
Qts0.38-7%
BL5.7Tm+2%
Vas17.9L+20%
Qes0.42-9%
49%
Similarity
6% cheaper£76.56
SB Acoustics
SB15CAC30-4
5"
Lower price
Xmax10mm-9%
Qts0.31-24%
BL4.6Tm-18%
Vas20.2L+36%
Qes0.34-26%
62%
Similarity
£81.08
SB Acoustics
SB15CRC30-4
5"
Xmax11mm0%
Qts0.32-22%
BL4.5Tm-19%
Vas17.3L+16%
Qes0.36-22%
65%
Similarity
72% more£139.69
SB Acoustics
MW13PNW-8
5"
Higher price
Xmax10mm-9%
Qts0.31-24%
BL5.7Tm+2%
Vas15L+1%
Qes0.33-28%
68%
Similarity
188% more£233.59
SB Acoustics
MW13TX-8
5"
Higher price
Xmax10mm-9%
Qts0.32-22%
BL5.7Tm+2%
Vas14.8L-1%
Qes0.34-26%
75%
Similarity
Visaton
AL 130 - 8 Ohm
5"
Xmax8.5mm-23%
Qts0.38-7%
BL5.6Tm0%
Vas13L-13%
Qes0.42-9%
49%
Similarity

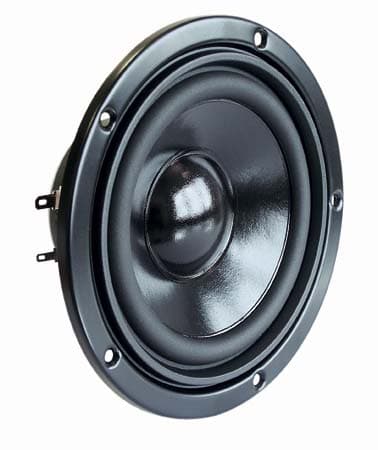

Visaton
W 130 S - 8 Ohm
5"
Xmax8mm-27%
Qts0.47+15%
BL4.6Tm-18%
Vas12L-19%
Qes0.59+28%
