LF DriverPrestige series
SEAS
SEAS H1455-08 ER15RLY
SEAS H1455-08 ER15RLY is a 15" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 44Hz, Qts 0.32, Vas 15L, Xmax 5mm, sensitivity 87dB, plus 40cm³ Vd and 107 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
60W
Sensitivity
87.0dB
EBP
107
Vented alignment
Vd
40cm³

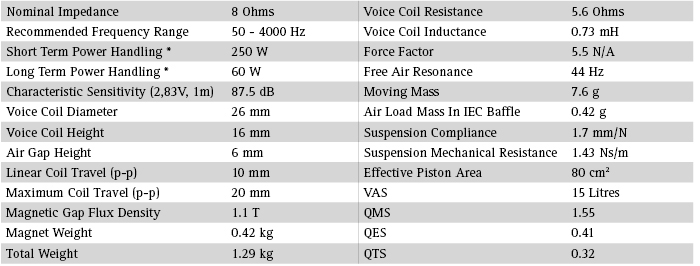

T/S Parameters
Valid
Fs44Hz
Qts0.32
Qes0.41
Qms1.6
Vas15.0L
Re5.6Ω
Le0.73mH
BL5.5Tm
Sd80cm²
Mms8g
Xmax5.0mm
SPL87dB
Power60W
Impedance8Ω
F Low50Hz
F High4000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

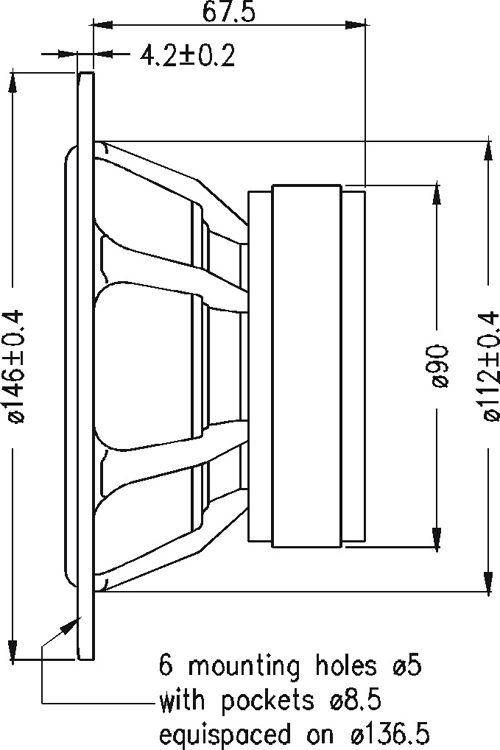

Dimensions & Physical
Weight1.3kg
