4-inch LF driver · Eikona series · 50 W

E J Jordan EIKONA 8Ω

Name: E J Jordan EIKONA 8 Ohm
Brand: E J Jordan
SKU: EIKONA

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 43Hz
Xmax: 5mm
SPL: 85dB
Pe: 50W
BL: 6.5T·m
Vd: 39cm³
Qts: 0.35
Vas: 11L

See all 21 specs

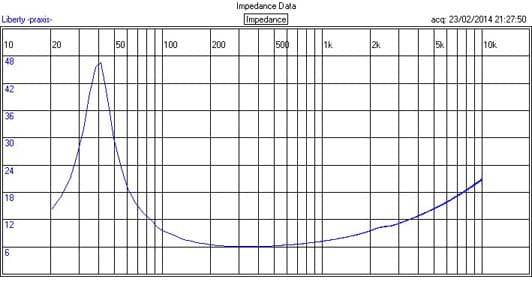

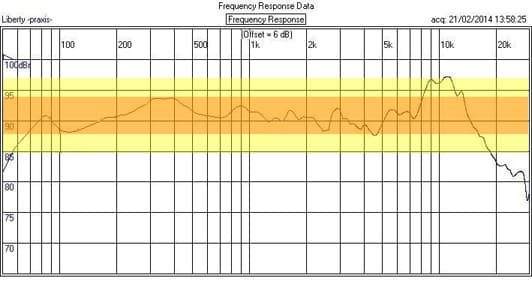

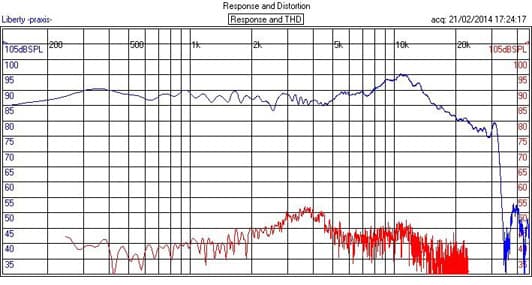

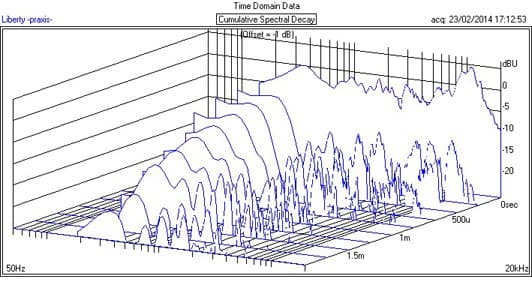

Published graphs

Specifications

Published by E J Jordan

Manufacturer page

E J Jordan EIKONA is a 4-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.35, Vas 11.0 L, Xmax 5 mm, sensitivity 85.3 dB, plus 39 cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 43Hz
Qts: 0.35
Qes: 0.41
Qms: 2.8
Vas: 11.0L
Re: 6Ω
Le: 0.29mH

Motor and cone

BL: 6.5T·m
Sd: 79cm²
Mms: 11g
Xmax: 5mm
Vd †: 39cm³

Power and response

Sensitivity †: 85.3dB
Manufacturer sensitivity: 85.2dB
Power: 50W
Nominal power: 50W
Impedance: 8Ω
EBP †: 106 · Leans vented

Other published values

Cms: 1.27mm/N
Xmech: 10
Power Peak: 100

† Calculated by bits from the published values

What this validation status means

Everything else E J Jordan lists

LF · Primary · 4″

BL: 6.5T·m
Fs: 43Hz
Le: 0.29mH
Re: 6Ω
Sd: 79cm²
Cms: 1.27mm/N
Mms: 11g
Qes: 0.41
Qms: 2.8
Qts: 0.35
SPL: 85.3dB
Vas: 11.0L
Xmax: 5mm
Xmech: 10
Power: 50W
Impedance: 8Ω
Power Peak: 100
Sensitivity: 85.2dB
Nominal power: 50W
Calculated sensitivity †: 85.3dB
Manufacturer sensitivity: 85.2dB

Compare

Same-size drivers, compared with the EIKONA. Clear differences are green when better and red when worse.

This driverEIKONA

Best price

–

43 Hz

Qts

0.35

Vas

11.0 L

6.5 T·m

Xmax

5 mm

Sensitivity

85.3 dB

Power

50 W

REDCATT5FHW

£16.00

Fs50 Hz +16%

Qts0.35 –

Vas6.5 L −40%

BL6.5 T·m –

Xmax3.2 mm −36%

Sensitivity85.4 dB –

HiViM5N

£18.87

Fs47 Hz +9%

Qts0.35 –

Vas11.3 L –

BL7.5 T·m +15%

Xmax2.7 mm −46%

Sensitivity87 dB +1.7

SB AcousticsSB13PFC25-8

£23.19

Fs45 Hz +5%

Qts0.33 −7%

Vas13.4 L +22%

BL6.2 T·m −5%

Xmax4.5 mm −10%

Sensitivity87 dB +1.7

SB AcousticsSB13PFCR25-8

£23.19

Fs45 Hz +5%

Qts0.33 −7%

Vas13.4 L +22%

BL6.2 T·m −5%

Xmax9 mm +80%

Sensitivity87 dB +1.7

FaitalPRO5FE120

£24.31

Fs65 Hz +51%

Qts0.38 +7%

Vas5 L −55%

BL5.9 T·m −10%

Xmax5.2 mm +4%

Sensitivity87.4 dB +2.1

Dayton AudioDSA135-8

£30.21

Fs52 Hz +20%

Qts0.38 +7%

Vas7.9 L −28%

BL6.2 T·m −5%

Xmax4.9 mm –

Sensitivity85.7 dB –

Dayton AudioDS135-8

£30.21

Fs53 Hz +22%

Qts0.39 +10%

Vas7.3 L −34%

BL6.2 T·m −5%

Xmax4.8 mm −3%

Sensitivity85.4 dB –

Eighteen Sound5W430

£44.95

Fs52 Hz +21%

Qts0.32 −10%

Vas15 L +36%

BL6.3 T·m −4%

Xmax6 mm +20%

Sensitivity89.7 dB +4.4

SB AcousticsSB15NRXC30-8

£54.62

Fs38 Hz −12%

Qts0.33 −7%

Vas20.7 L +88%

BL5.6 T·m −14%

Xmax5 mm –

Sensitivity87.1 dB +1.8

CIAREHWB130

£60.83

Fs48 Hz +12%

Qts0.30 −15%

Vas12.5 L +14%

BL7.2 T·m +10%

Xmax4.5 mm −10%

Sensitivity88.4 dB +3.1

Sica5 NR 1.5 PL

£64.37

Fs61 Hz +42%

Qts0.35 –

Vas7.4 L −33%

BL6.7 T·m –

Xmax3.5 mm −30%

Sensitivity88.4 dB +3.1

SB AcousticsSB15NAC30-8

£70.08

Fs36 Hz −17%

Qts0.37 +4%

Vas17.7 L +61%

BL5.9 T·m −10%

Xmax5 mm –

Sensitivity85.1 dB –

ETON5-612/C8/25 RP

£75.99

Fs55 Hz +28%

Qts0.36 –

Vas9.8 L −11%

BL5.9 T·m −10%

Xmax2 mm −60%

Sensitivity88.4 dB +3.1

SEASH1455-08 ER15RLY

£80.99

Fs44 Hz –

Qts0.32 −10%

Vas15 L +36%

BL5.5 T·m −16%

Xmax5 mm –

Sensitivity87 dB +1.7

ETON5-512/C8/25 RP

£84.44

Fs59 Hz +37%

Qts0.34 −4%

Vas10 L −9%

BL5.9 T·m −10%

Xmax2.5 mm −50%

Sensitivity89.7 dB +4.4

SEASH1216-08 CA15RLY

£90.21

Fs44 Hz –

Qts0.34 −4%

Vas14 L +27%

BL5.5 T·m −16%

Xmax5 mm –

Sensitivity86.6 dB +1.3

MorelTIW 638ND

£167.27

Fs43 Hz –

Qts0.40 +13%

Vas15.5 L +41%

BL7.7 T·m +18%

Xmax5.3 mm +5%

Sensitivity86.5 dB +1.2

MorelTIW 634ND

£206.98

Fs40 Hz −7%

Qts0.36 –

Vas16.5 L +50%

BL6.5 T·m –

Xmax5.5 mm +10%

Sensitivity86.4 dB +1.1

Tang BandW5-1880

£211.20

Fs48 Hz +12%

Qts0.32 −10%

Vas26.5 L +141%

BL5.5 T·m −17%

Xmax5 mm –

Sensitivity90.9 dB +5.6

MorelECW 536

£238.24

Fs45 Hz +5%

Qts0.31 −13%

Vas11 L –

BL6.8 T·m +4%

Xmax5.5 mm +10%

Sensitivity86.1 dB +0.8

MorelTICW 634ND

£274.14

Fs40 Hz −7%

Qts0.35 –

Vas17.3 L +57%

BL6.6 T·m –

Xmax5.5 mm +10%

Sensitivity86.8 dB +1.5

SEASE0015-08S W15CY001

£295.64

Fs38 Hz −12%

Qts0.36 –

Vas14 L +27%

BL5.5 T·m −16%

Xmax4 mm −20%

Sensitivity84.5 dB −0.8

MorelTSCW 636

£435.08

Fs43 Hz –

Qts0.36 –

Vas13.3 L +21%

BL7.9 T·m +21%

Xmax5 mm –

Sensitivity86.4 dB +1.1

FaneSTUDIO 5FRK

No current price

Fs58 Hz +35%

Qts0.36 –

Vas10.9 L –

BL6.8 T·m +5%

Xmax2.4 mm −52%

Sensitivity89.5 dB +4.2

Tang BandW3-2052S

No current price

Fs50 Hz +16%

Qts0.34 −4%

Vas0.9 L −92%

BL6.8 T·m +3%

Xmax5 mm –

Sensitivity76.7 dB −8.6

Tang BandW5-704D

No current price

Fs55 Hz +28%

Qts0.38 +7%

Vas11.6 L +5%

BL6.2 T·m −6%

Xmax3.3 mm −34%

Sensitivity88.2 dB +2.9

SEASE0049-08S W16NX001

No current price

Fs39 Hz −9%

Qts0.35 –

Vas14 L +27%

BL7.3 T·m +12%

Xmax7 mm +40%

Sensitivity85.1 dB –

Tang BandW3-1750SB

No current price

Fs50 Hz +16%

Qts0.37 +4%

Vas1.7 L −85%

BL8.0 T·m +22%

Xmax5 mm –

Sensitivity79.3 dB −6

Tang BandW4-992SD

No current price

Fs55 Hz +28%

Qts0.35 –

Vas5.7 L −48%

BL6.4 T·m –

Xmax3.5 mm −30%

Sensitivity85.8 dB +0.5

HiViM5A

No current price

Fs48 Hz +12%

Qts0.34 −4%

Vas11.2 L –

BL7.6 T·m +16%

Xmax2.7 mm −46%

Sensitivity87.4 dB +2.1

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax
