Overview
LF DriverExcel series
SEAS
SEAS E0049-08S W16NX001
SEAS E0049-08S W16NX001 is a 15" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 39Hz, Qts 0.35, Vas 14L, Xmax 7mm, sensitivity 85.1dB, plus 66cm³ Vd and 95 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
80W
Sensitivity
85.1dB
EBP
95
Either alignment
Vd
66cm³

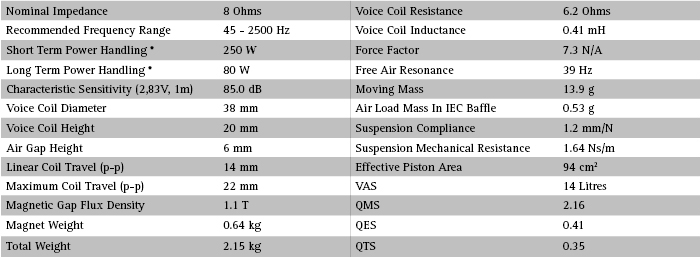

T/S Parameters
Valid
Fs39Hz
Qts0.35
Qes0.41
Qms2.2
Vas14.0L
Re6.2Ω
Le0.41mH
BL7.3Tm
Sd94cm²
Mms14g
Xmax7.0mm
SPL85dB
Power80W
Impedance8Ω
F Low45Hz
F High2500Hz
Voice Coil38mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

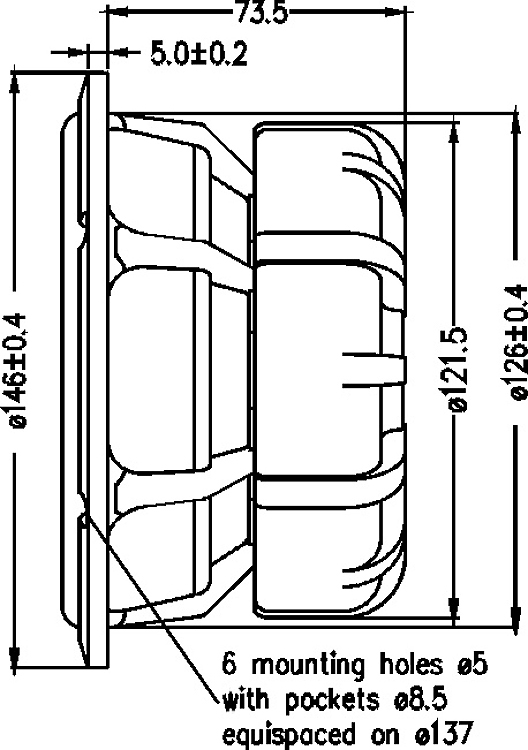

Dimensions & Physical
Weight2.1kg
