Audio Technology 6 H 52 17 06 SD
Audio Technology 6 H 52 17 06 SD is a 6" 4 ohm LF driver rated at 160W RMS. The validated T/S data includes Fs 33Hz, Qts 0.35, Vas 47L, Xmax 6.3mm, sensitivity 88.1dB, plus 108cm³ Vd and 79 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
RMS Power
160W
Sensitivity
88.1dB
EBP
79
Either alignment
Vd
108cm³
T/S Parameters
Valid
Fs33Hz
Qts0.35
Qes0.42
Qms2.1
Vas47.0L
Re4.2Ω
Le0.15mH
BL6.6Tm
Sd172cm²
Mms21g
Xmax6.3mm
SPL88dB
Power160W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
6 H 52 17 06 SD
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
£164.28
SB Acoustics
MR16PNW-8
6"
Xmax6.2mm-2%
Qts0.32-9%
BL6.5Tm-2%
Vas44.8L-5%
Qes0.34-19%
78%
Similarity
£164.28
SB Acoustics
MR16P-8
6"
Xmax6.2mm-2%
Qts0.3-14%
BL6.5Tm-2%
Vas44.3L-6%
Qes0.32-24%
73%
Similarity
£249.00
SB Acoustics
MR16TX-8
6"
Xmax5.7mm-10%
Qts0.31-11%
BL6.6Tm0%
Vas38.9L-17%
Qes0.32-24%
70%
Similarity
£168.82

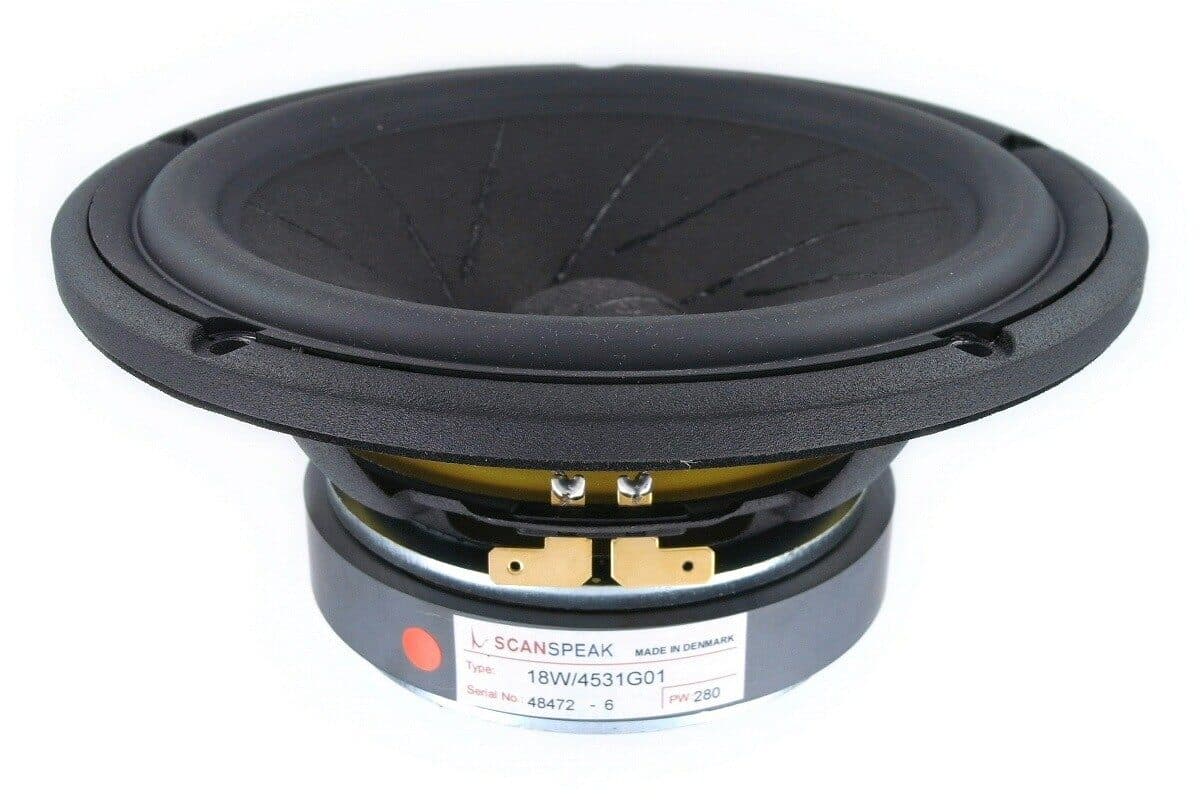

Scanspeak
18W/4531G01
7"
Xmax6.5mm+3%
Qts0.350%
BL5.7Tm-14%
Vas45.6L-3%
Qes0.38-10%
70%
Similarity
Supravox
165 GMF
6.5"
Xmax6mm-5%
Qts0.39+11%
BL5.6Tm-15%
Vas40L-15%
Qes0.420%
69%
Similarity
£168.81

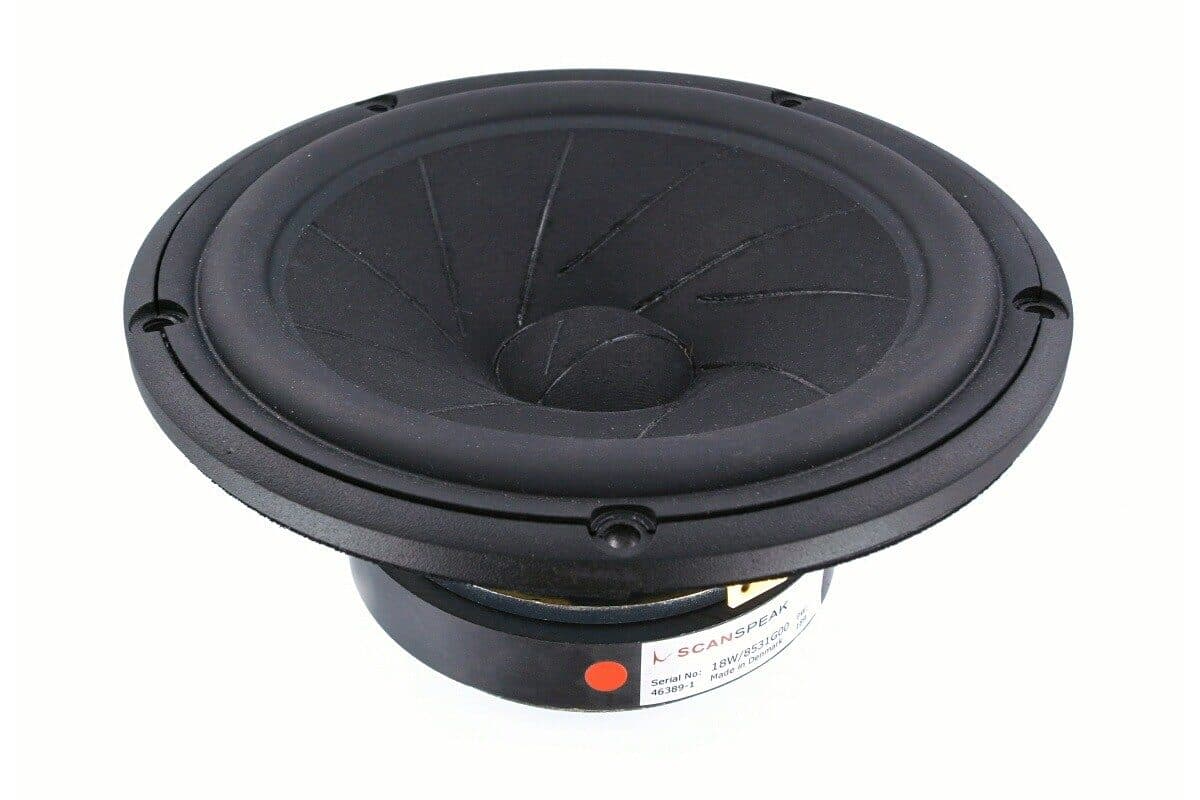

Scanspeak
18W/8531G00
7"
Xmax6.5mm+3%
Qts0.36+3%
BL6.8Tm+3%
Vas58.2L+24%
Qes0.39-7%
68%
Similarity
£212.95

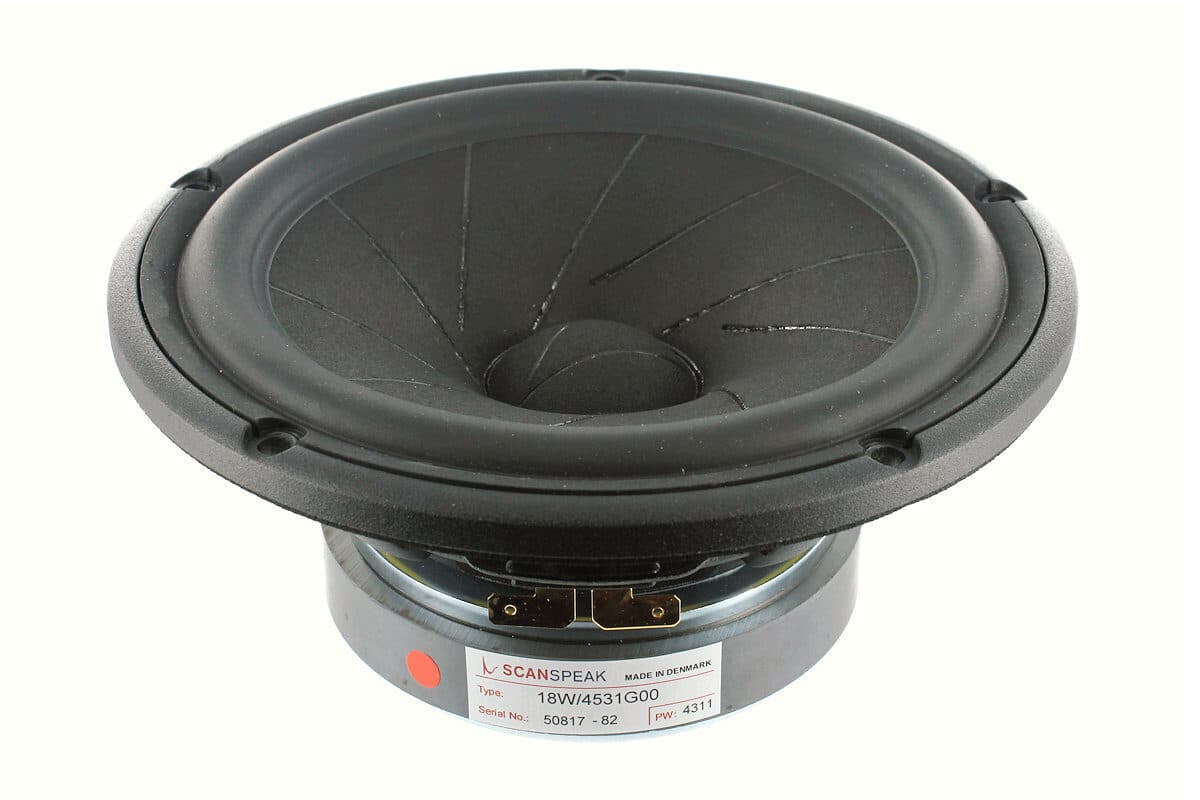

Scanspeak
18W/4531G00
7"
Xmax6.5mm+3%
Qts0.350%
BL5.7Tm-14%
Vas41.9L-11%
Qes0.38-10%
67%
Similarity
HiVi
S6.5R
6.5"
Xmax5.8mm-8%
Qts0.38+9%
BL6.5Tm-2%
Vas23.2L-51%
Qes0.420%
65%
Similarity
£157.04

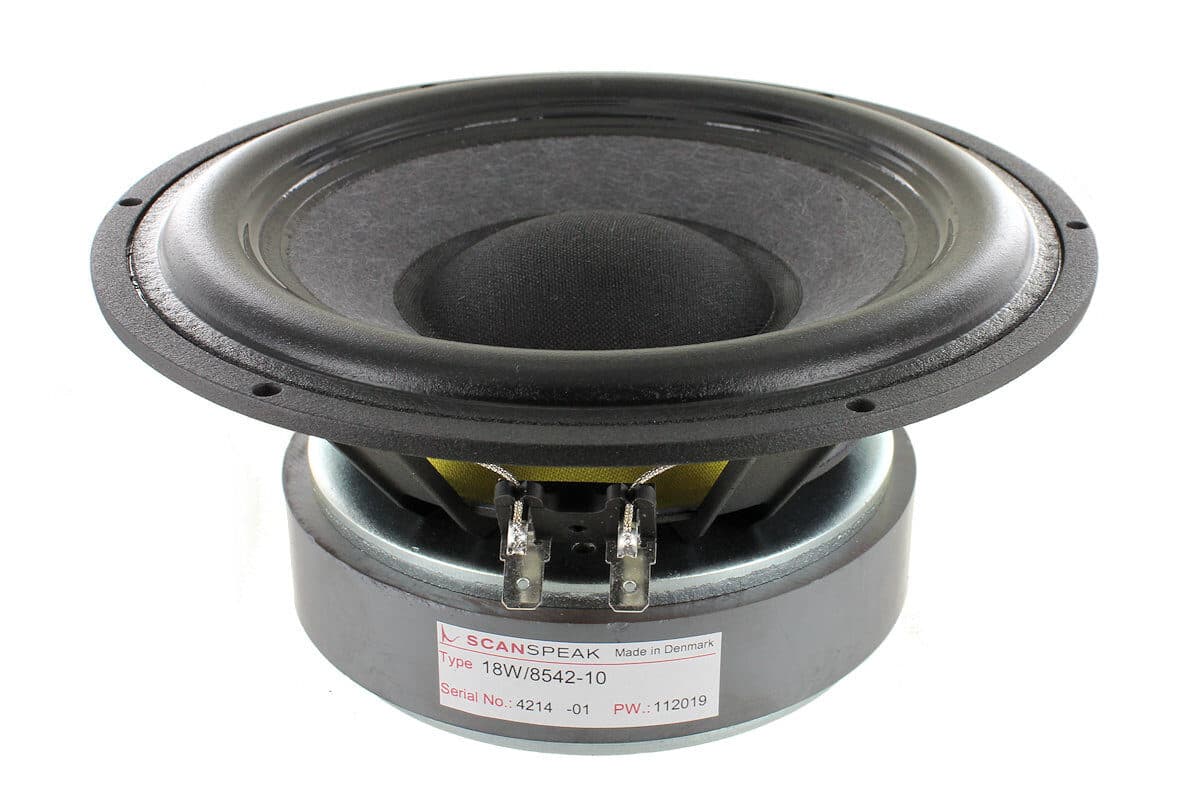

Scanspeak
18W/8542-10
7"
Xmax6.5mm+3%
Qts0.350%
BL6.9Tm+5%
Vas26L-45%
Qes0.44+5%
64%
Similarity
£378.95

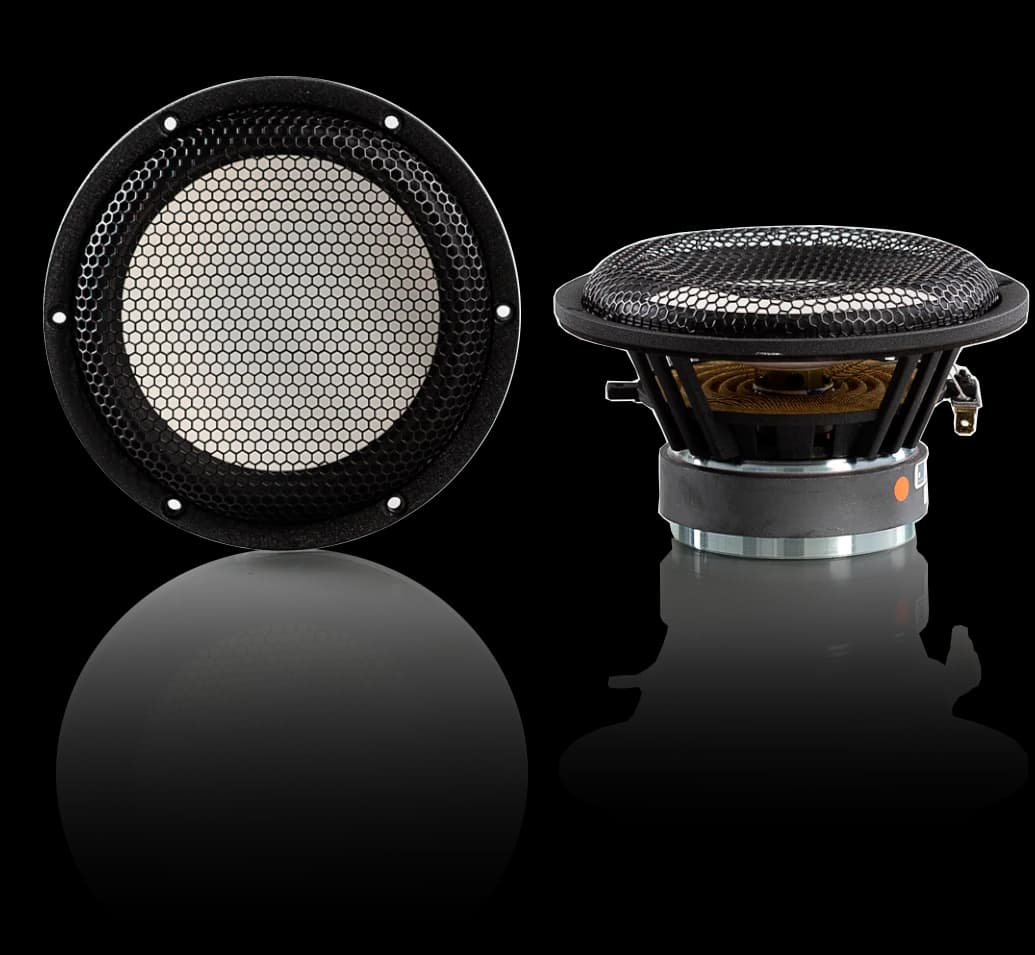

Accuton
