LF DriverSB17 series
SB Acoustics
SB Acoustics SB17MFC35-8
SB Acoustics SB17MFC35-8 is a 6" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 33Hz, Qts 0.37, Vas 39L, Xmax 11mm, sensitivity 87.5dB, plus 130cm³ Vd and 83 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £54.89.
Size
6"
Impedance
8Ω
RMS Power
60W
Sensitivity
87.5dB
EBP
83
Either alignment
Vd
130cm³

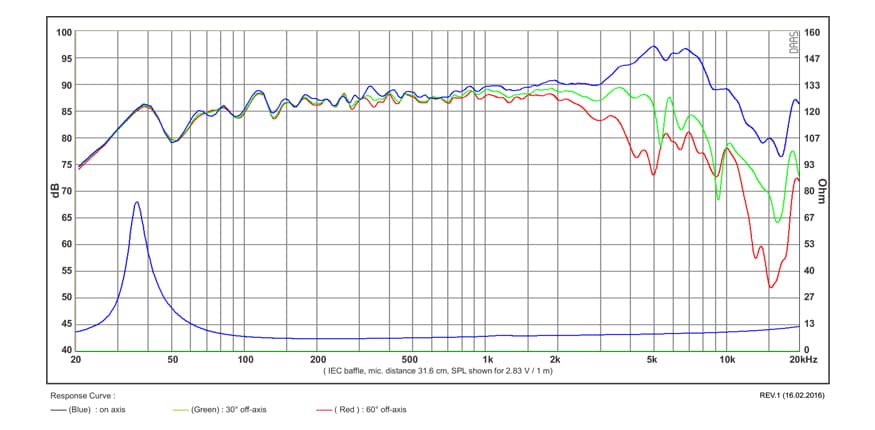

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,902 selected pixels of 3,646 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence752 selected pixels of 2,648 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,145 selected pixels of 4,411
T/S Parameters
Valid
Fs33Hz
Qts0.37
Qes0.40
Qms4.9
Vas39.0L
Re5.7Ω
Le0.15mH
BL5.9Tm
Sd118cm²
Mms12g
Xmax11.0mm
SPL88dB
Power60W
Impedance8Ω
Voice Coil36mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£54.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
