LF DriverMW16 series
SB Acoustics
SB Acoustics MW16P-12
SB Acoustics MW16P-12 is a 6" 12 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 31Hz, Qts 0.37, Vas 47.3L, Xmax 12.4mm, sensitivity 87.3dB, plus 148cm³ Vd and 77 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
12Ω
RMS Power
60W
Sensitivity
87.3dB
85.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
77
Either alignment
Vd
148cm³

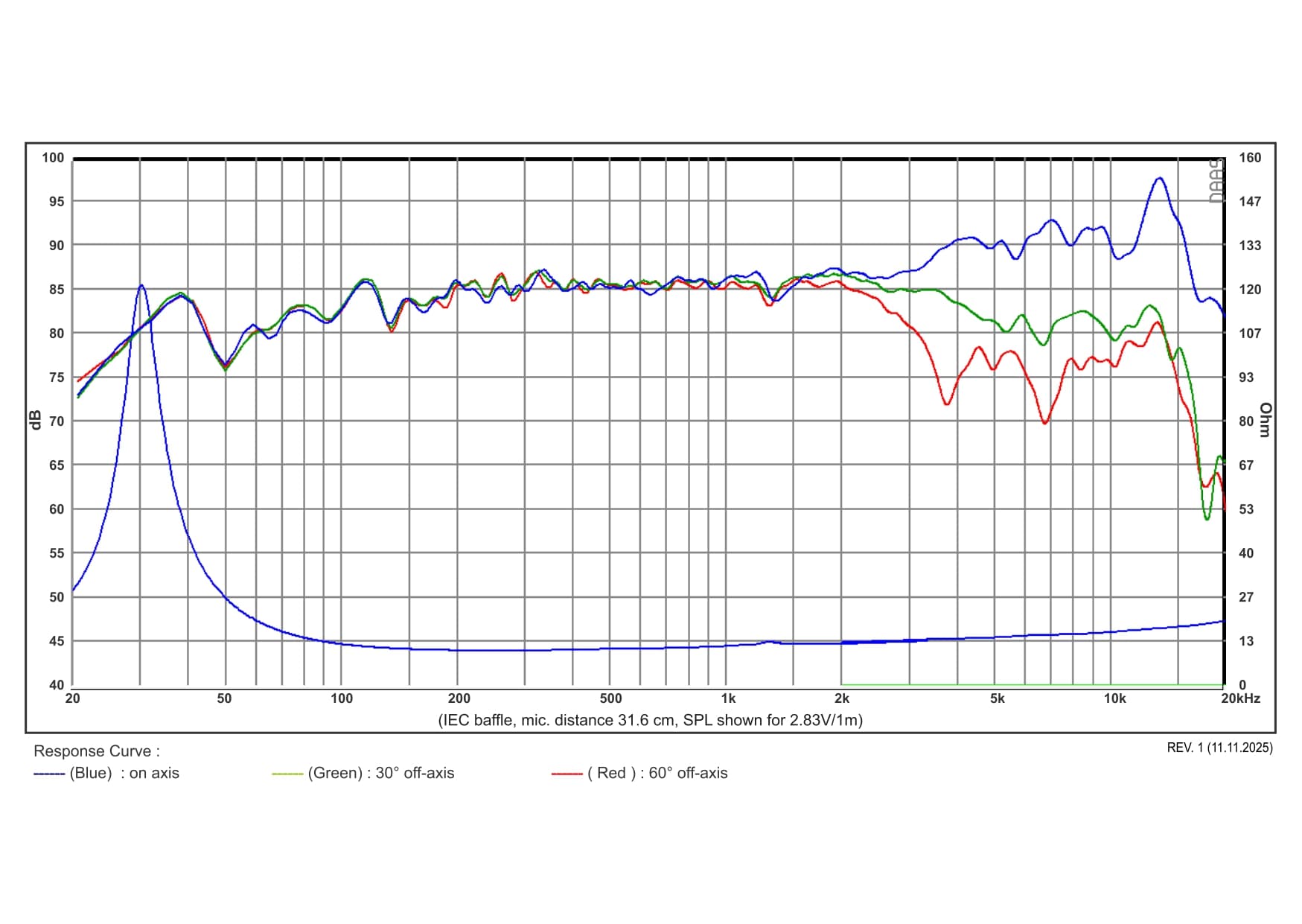

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,330 selected pixels of 2,692 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,187 selected pixels of 2,334
T/S Parameters
Valid
Fs31Hz
Qts0.37
Qes0.40
Qms4.8
Vas47.3L
Re10.0Ω
Le0.19mH
BL7.4Tm
Sd119cm²
Mms12g
Xmax12.4mm
SPL87dB
Power60W
Impedance12Ω
Voice Coil36mm
Flux Density1.17T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
