LF DriverNTR06 series
Celestion

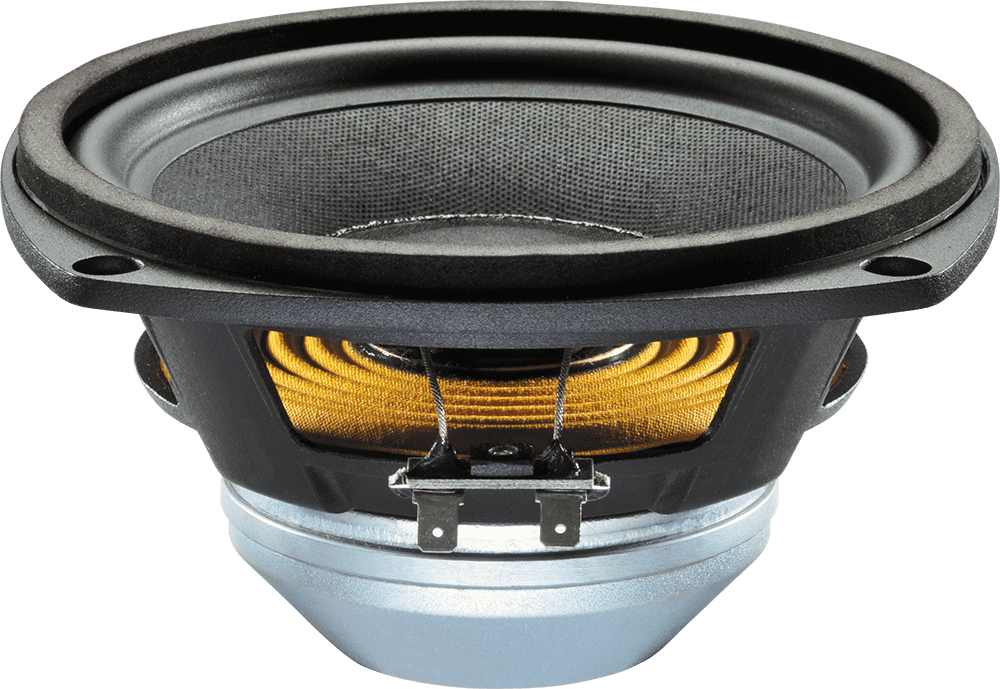

Celestion NTR06-1705D
Celestion NTR06-1705D is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 49Hz, Qts 0.38, Vas 21.4L, Xmax 6mm, sensitivity 90dB, plus 92cm³ Vd and 122 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £109.00.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
90.0dB
EBP
122
Vented alignment
Vd
92cm³

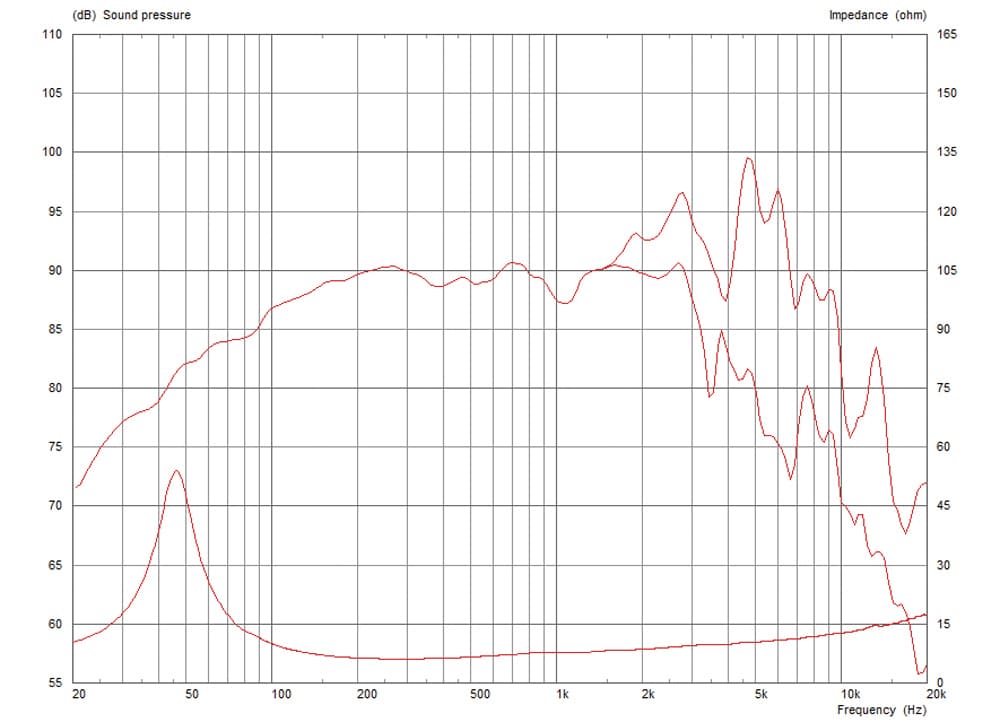

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence164 selected pixels of 321
T/S Parameters
Valid
Fs49Hz
Qts0.38
Qes0.40
Qms6.1
Vas21.4L
Re5.3Ω
Le0.23mH
BL8.2Tm
Sd154cm²
Mms17g
Xmax6.0mm
SPL90dB
Power150W
Impedance8Ω
Voice Coil44mm
Pricing & availability
Price definitionsPrice movement
Best current price
£109.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter189.0mm
Overall Depth87.0mm
Cutout Diameter150.0mm
Bolt Circle Diameter173.5mm
