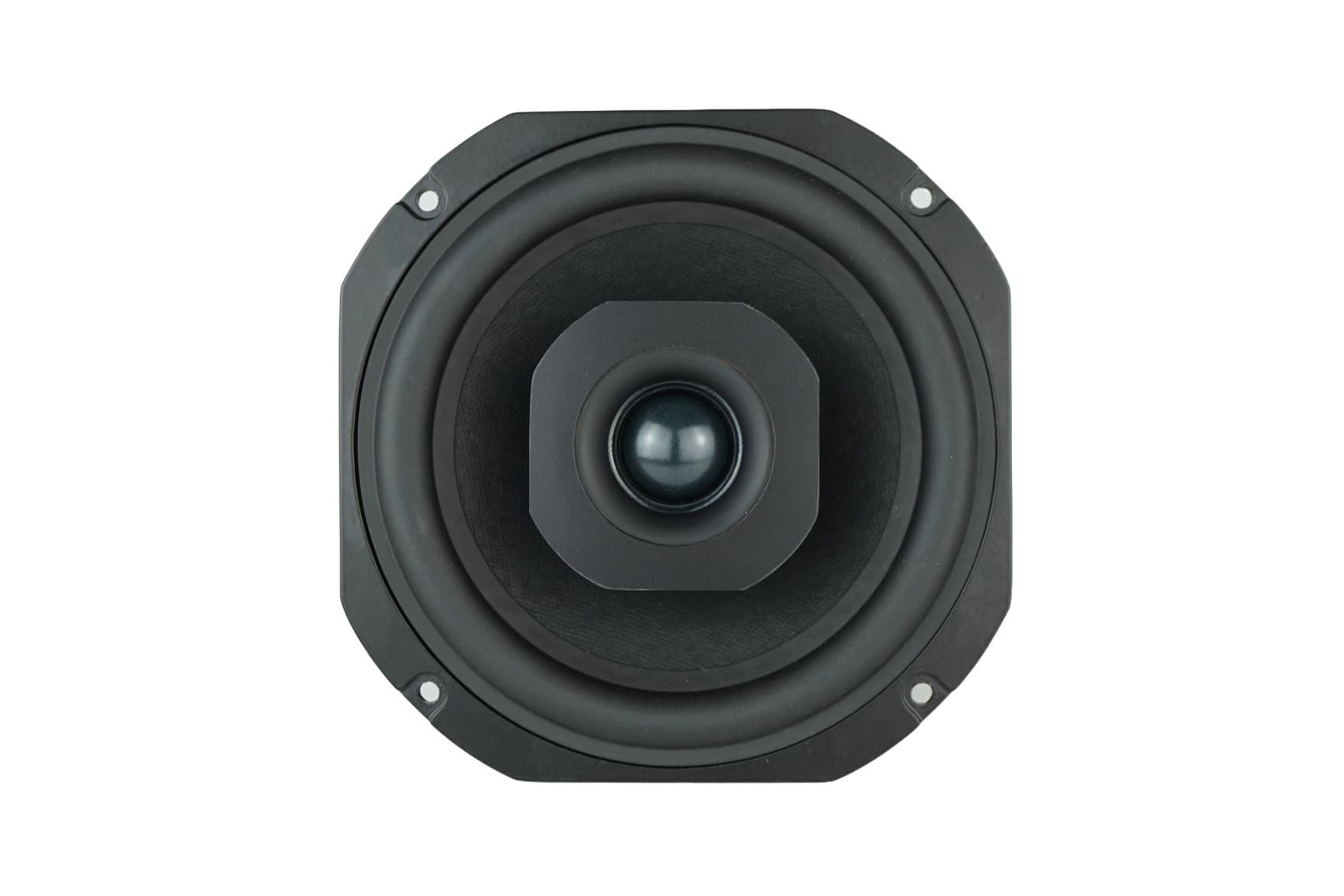

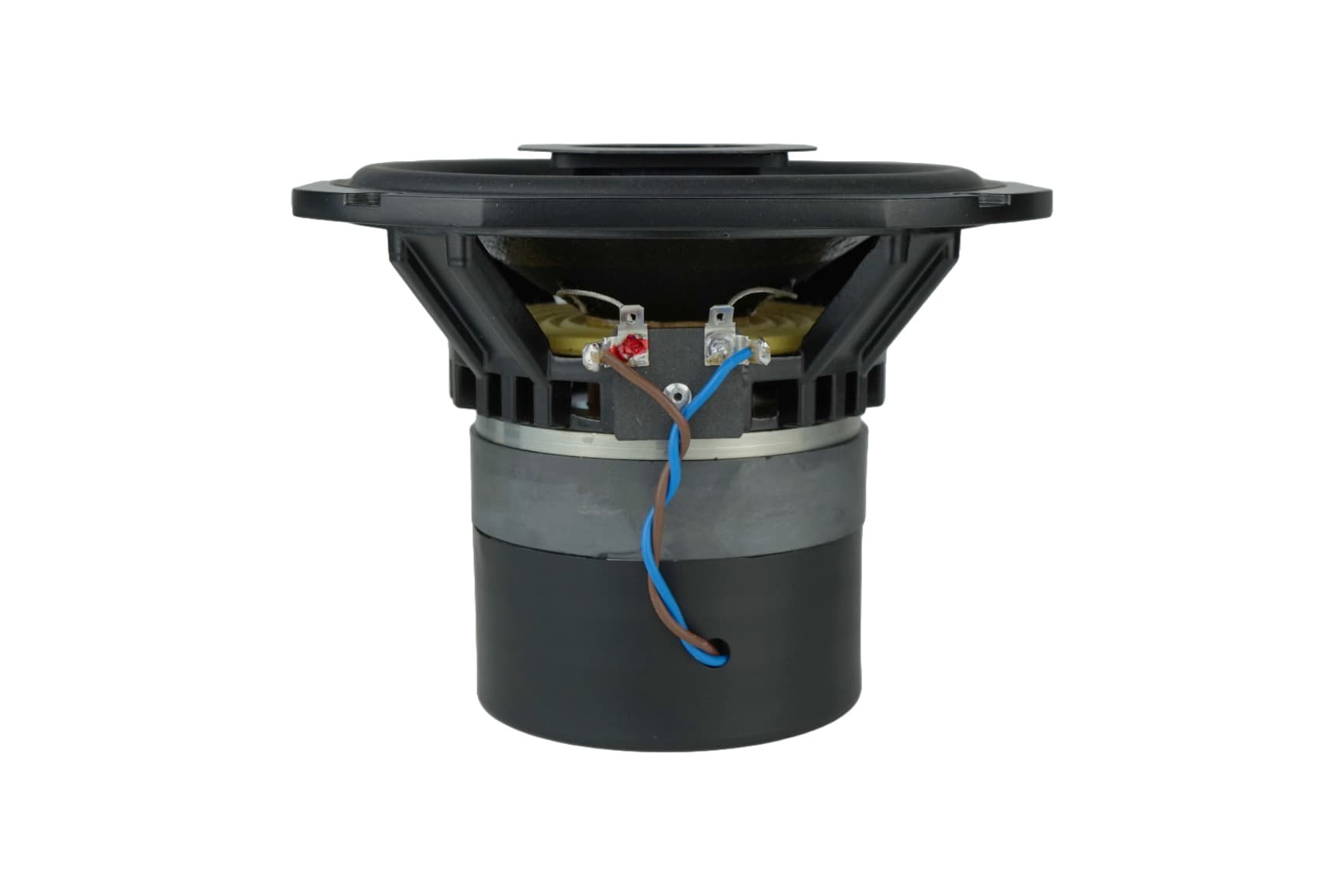

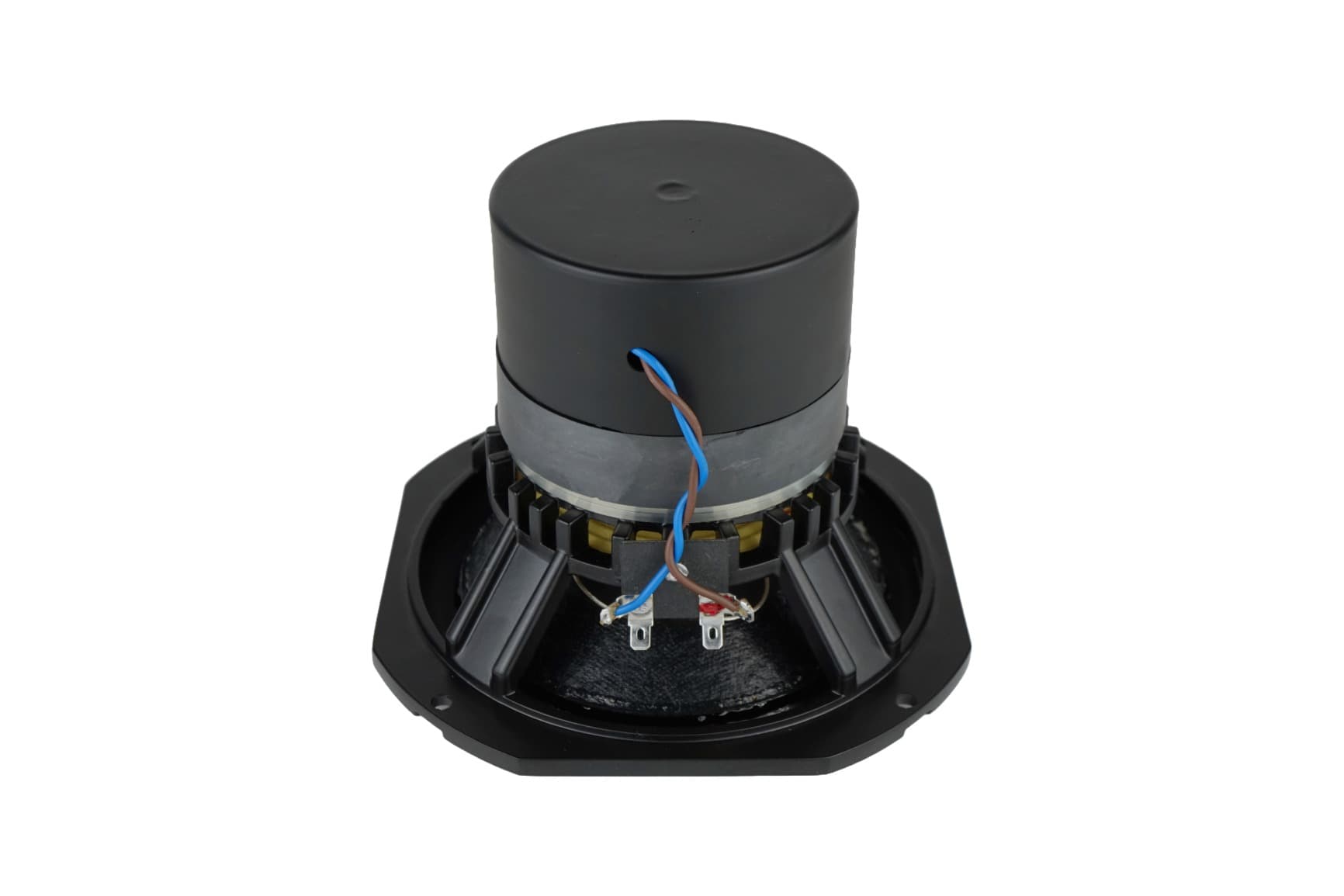

6.5-inch LF driver · CX series · 38 mm voice coil · 100 W

Volt CX160.1 8Ω

Name: Volt CX160.1 8 Ohm
Brand: Volt
SKU: CX160.1

8 Ω · 50–20000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 40Hz
Xmax: 6mm
SPL: 88dB
Pe: 100W
BL: 9.5T·m
Vd: 92cm³
Qts: 0.35
Vas: 23L

See all 28 specs

Specifications

Published by Volt

Manufacturer page

Datasheet PDF

Volt CX160.1 is a 6.5-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.35, Vas 22.6 L, Xmax 6 mm, sensitivity 88.1 dB, plus 92 cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 40Hz
Qts: 0.35
Qes: 0.36
Qms: 9.5
Vas: 22.6L
Re: 5.6Ω
Le: 0.67mH

Motor and cone

BL: 9.5T·m
Sd: 154cm²
Mms: 23g
Xmax: 6mm
Vd †: 92cm³
Voice coil: 38mm

Power and response

Sensitivity †: 88.1dB
Manufacturer sensitivity: 89dB
Power: 100W
Impedance: 8Ω
Range: 50–20000Hz
EBP †: 111 · Leans vented

Size and mounting

Diameter: 189mm
Cutout: 160mm
Bolt circle: 178.5mm
Depth: 125mm
Weight: 2.3kg

Other published values

Cms: 0.67mm/N
Rms: 0.61kg/s
Xmech: 24

Other dimensions

Mounting Depth: 119

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 6.5″

BL: 9.5T·m
Fs: 40Hz
Le: 0.67mH
Re: 5.6Ω
Sd: 154cm²
Cms: 0.67mm/N
Mms: 23g
Qes: 0.36
Qms: 9.5
Qts: 0.35
Rms: 0.61kg/s
SPL: 88.1dB
Vas: 22.6L
Xmax: 6mm
Xmech: 24
Power: 100W
Impedance: 8Ω
Sensitivity: 89dB
Low limit: 50Hz
Calculated sensitivity †: 88.1dB
High limit: 20000Hz
Manufacturer sensitivity: 89dB
Voice coil: 38mm
Weight: 2.3kg
Diameter: 189mm
Depth: 125mm
Mounting Depth: 119
Cutout: 160mm
Bolt circle: 178.5mm

Compare

Same-size drivers, compared with the CX160.1. Clear differences are green when better and red when worse.

This driverCX160.1

Best price

–

40 Hz

Qts

0.35

Vas

22.6 L

9.5 T·m

Xmax

6 mm

Sensitivity

88.1 dB

Power

100 W

Dayton AudioDSA175-8

£41.13

Fs38 Hz −4%

Qts0.29 −17%

Vas18.7 L −17%

BL9.8 T·m –

Xmax5.3 mm −12%

Sensitivity86.8 dB −1.3

HiViF6

£41.82

Fs45 Hz +13%

Qts0.35 –

Vas16.4 L −27%

BL9 T·m −5%

Xmax4.3 mm −28%

Sensitivity88 dB –

Dayton AudioDCS165-4

£48.61

Fs36 Hz −11%

Qts0.34 –

Vas12.1 L −46%

BL9.2 T·m −4%

Xmax6 mm –

Sensitivity83.9 dB −4.2

Sica6 H 1.5 CP

£55.18

Fs46 Hz +15%

Qts0.35 –

Vas16.6 L −27%

BL8.4 T·m −12%

Xmax6 mm –

Sensitivity88.3 dB –

Dayton AudioRS180P-8

£59.83

Fs46 Hz +14%

Qts0.34 –

Vas22 L –

BL7.2 T·m −25%

Xmax6 mm –

Sensitivity88.8 dB +0.7

Dayton AudioRS180-8

£59.83

Fs36 Hz −11%

Qts0.31 −11%

Vas24.4 L +8%

BL7.8 T·m −18%

Xmax6 mm –

Sensitivity86.3 dB −1.8

HiViE6.5

£63.57

Fs37 Hz −8%

Qts0.32 −9%

Vas31 L +37%

BL8.1 T·m −15%

Xmax5.8 mm −4%

Sensitivity88.3 dB –

PRV Audio6MB550FT

£67.26

Fs85 Hz +112%

Qts0.34 –

Vas8.2 L −64%

BL9.8 T·m –

Xmax5.4 mm −10%

Sensitivity93.3 dB +5.2

Dayton AudioRS180S-8

£78.62

Fs38 Hz −6%

Qts0.36 –

Vas23 L –

BL7.3 T·m −23%

Xmax6 mm –

Sensitivity86 dB −2.1

WavecorWF182BD12

£118.19

Fs30 Hz −26%

Qts0.37 +6%

Vas32.4 L +43%

BL8.2 T·m −14%

Xmax5.5 mm −8%

Sensitivity85.4 dB −2.7

WavecorWF182BD17

£121.93

Fs33 Hz −18%

Qts0.35 –

Vas24.3 L +8%

BL6.5 T·m −32%

Xmax5.5 mm −8%

Sensitivity85.8 dB −2.3

SEASH1571-08 U18RNX/P

£125.61

Fs43 Hz +8%

Qts0.37 +6%

Vas22 L –

BL6.9 T·m −27%

Xmax6 mm –

Sensitivity87.9 dB –

WavecorWF182BD20

£188.39

Fs30 Hz −26%

Qts0.37 +6%

Vas32.4 L +43%

BL8.2 T·m −14%

Xmax5.5 mm −8%

Sensitivity85.4 dB −2.7

WavecorWF182BD16

£191.74

Fs37 Hz −8%

Qts0.30 −14%

Vas23 L –

BL8.5 T·m −11%

Xmax5.5 mm −8%

Sensitivity87.8 dB –

AccutonC173-6-191

£325.80

Fs39 Hz −3%

Qts0.34 –

Vas21.6 L −4%

BL8.8 T·m −7%

Xmax5 mm −17%

Sensitivity87.3 dB −0.8

AccutonC158-8-085

£326.51

Fs37 Hz −8%

Qts0.36 –

Vas27.3 L +21%

BL7.7 T·m −19%

Xmax5 mm −17%

Sensitivity87.5 dB −0.6

PurifiPTT6.5W08-NAA-08

No current price

Fs35 Hz −13%

Qts0.35 –

Vas23.8 L +5%

BL9.4 T·m –

Xmax5.9 mm –

Sensitivity86.4 dB −1.7

PurifiPTT6.5W08-NFA-06

No current price

Fs38 Hz −5%

Qts0.33 −6%

Vas22.5 L –

BL9.5 T·m –

Xmax5.9 mm –

Sensitivity87.4 dB −0.7

WavecorWF182BD07

No current price

Fs40 Hz –

Qts0.34 –

Vas24.4 L +8%

BL8.5 T·m −11%

Xmax5.5 mm −8%

Sensitivity88.5 dB –

CelestionNTR06-1705D

No current price

Fs49 Hz +23%

Qts0.38 +8%

Vas21.4 L −5%

BL8.2 T·m −14%

Xmax6 mm –

Sensitivity90 dB +1.9

RS SpeakersW 174.38 FIBONACCI

No current price

Fs38 Hz −6%

Qts0.38 +9%

Vas22.9 L –

BL7.2 T·m −24%

Xmax6 mm –

Sensitivity87 dB −1.1

WavecorWF182BD15

No current price

Fs39 Hz –

Qts0.32 −9%

Vas20.8 L −8%

BL8.5 T·m −11%

Xmax5.5 mm −8%

Sensitivity87.8 dB –

WavecorWF182BD09

No current price

Fs33 Hz −18%

Qts0.35 –

Vas24.3 L +8%

BL6.5 T·m −32%

Xmax5.5 mm −8%

Sensitivity85.8 dB −2.3

PurifiPTT6.5X08-NFA-06

No current price

Fs31 Hz −23%

Qts0.34 –

Vas26 L +15%

BL8.9 T·m −6%

Xmax9.8 mm +63%

Sensitivity85.4 dB −2.7

PurifiPTT6.5W04-NAA-08

No current price

Fs33 Hz −18%

Qts0.30 −14%

Vas23.3 L +3%

BL7.7 T·m −19%

Xmax5.9 mm –

Sensitivity86.3 dB −1.8

VoltBM165.4

No current price

Fs32 Hz −20%

Qts0.30 −14%

Vas32.3 L +43%

BL9.6 T·m –

Xmax6 mm –

Sensitivity87.2 dB −0.9

KartesianLOM155_VKI

No current price

Fs48 Hz +20%

Qts0.33 −6%

Vas16.6 L −27%

BL6.3 T·m −33%

Xmax6 mm –

Sensitivity89.1 dB +1

PurifiPTT6.5X04-NAA-08

No current price

Fs32 Hz −20%

Qts0.35 –

Vas20.5 L −9%

BL7.8 T·m −18%

Xmax9.8 mm +63%

Sensitivity84.6 dB −3.5

PurifiPTT6.5M08-NAA-08

No current price

Fs38 Hz −5%

Qts0.31 −11%

Vas21.6 L −4%

BL9.6 T·m –

Xmax2.9 mm −52%

Sensitivity87.6 dB −0.5

PRV Audio6MB550FT-4

No current price

Fs86 Hz +116%

Qts0.34 –

Vas6.6 L −71%

BL8.6 T·m −9%

Xmax5.4 mm −10%

Sensitivity92.9 dB +4.8
