Overview
LF DriverPTT series
Purifi

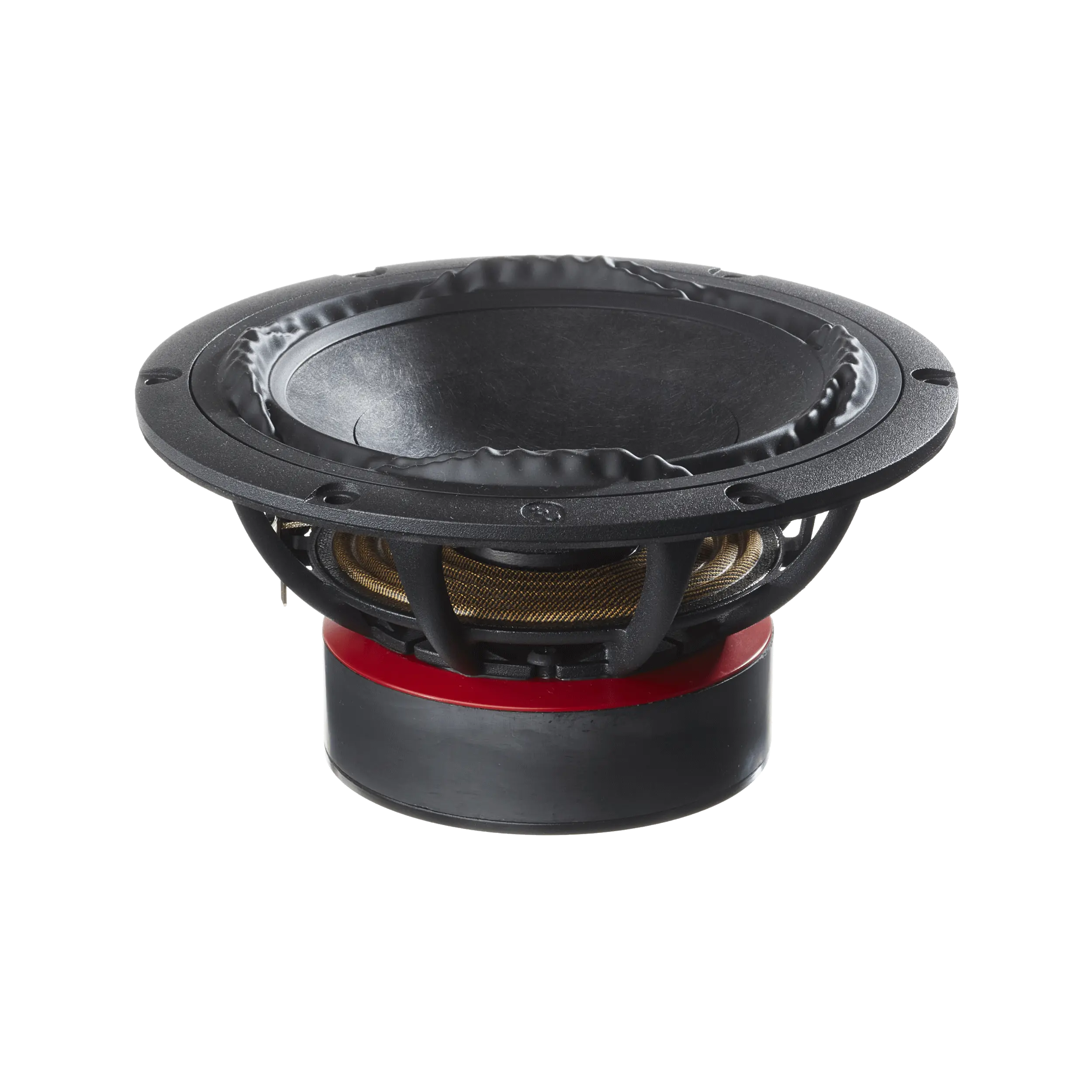

Purifi PTT6.5X08-NFA-06
Purifi PTT6.5X08-NFA-06 is a 6.5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 31Hz, Qts 0.34, Vas 26L, Xmax 9.8mm, sensitivity 85.4dB, plus 130cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
85.4dB
EBP
86
Either alignment
Vd
130cm³
T/S Parameters
Valid
Fs31Hz
Qts0.34
Qes0.36
Qms5.6
Vas26.0L
Re5.9Ω
Le0.52mH
BL8.9Tm
Sd133cm²
Mms25g
Xmax9.8mm
SPL85dB
Power80W
Impedance8Ω
Min Impedance6.6Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter176.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter166.0mm
