7-inch LF driver
Kartesian SUB180_VMS 8Ω
8 Ω · 30–700 Hz
No current price
- Fs
- 31Hz
- Xmax
- 11mm
- SPL
- 89dB
- Pe
- –
- BL
- 8.8T·m
- Vd
- 135cm³
- Qts
- 0.33
- Vas
- 22L

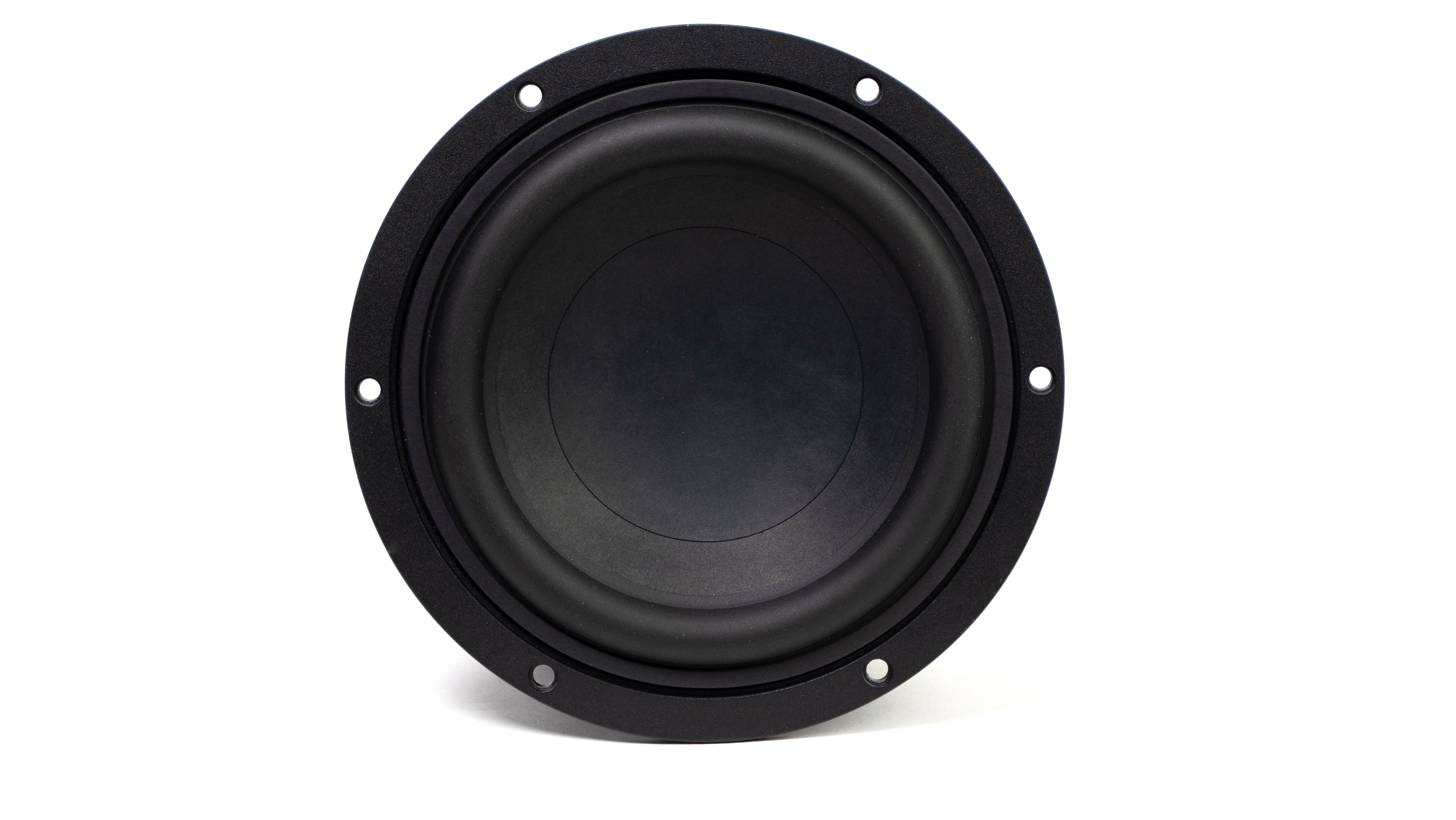

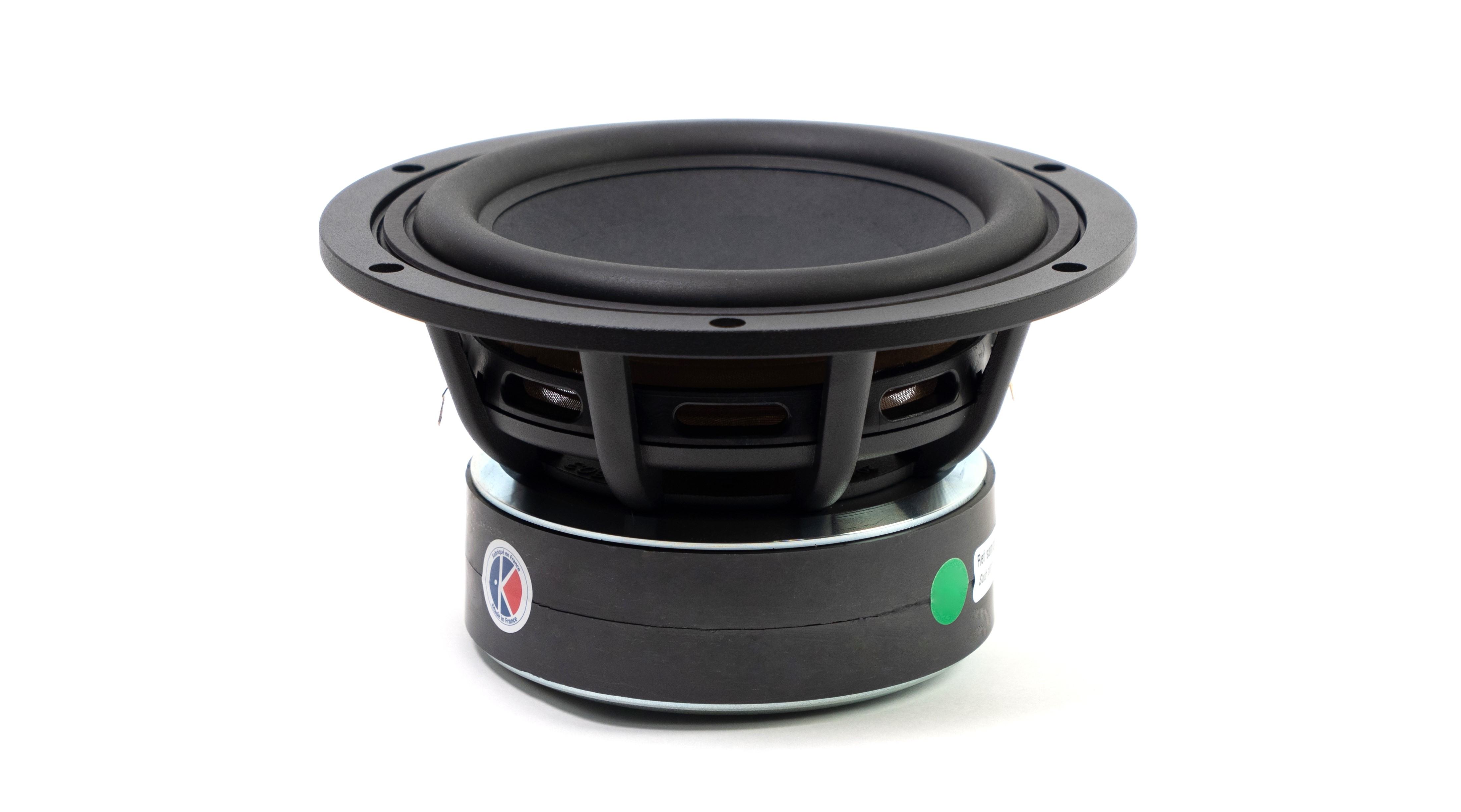

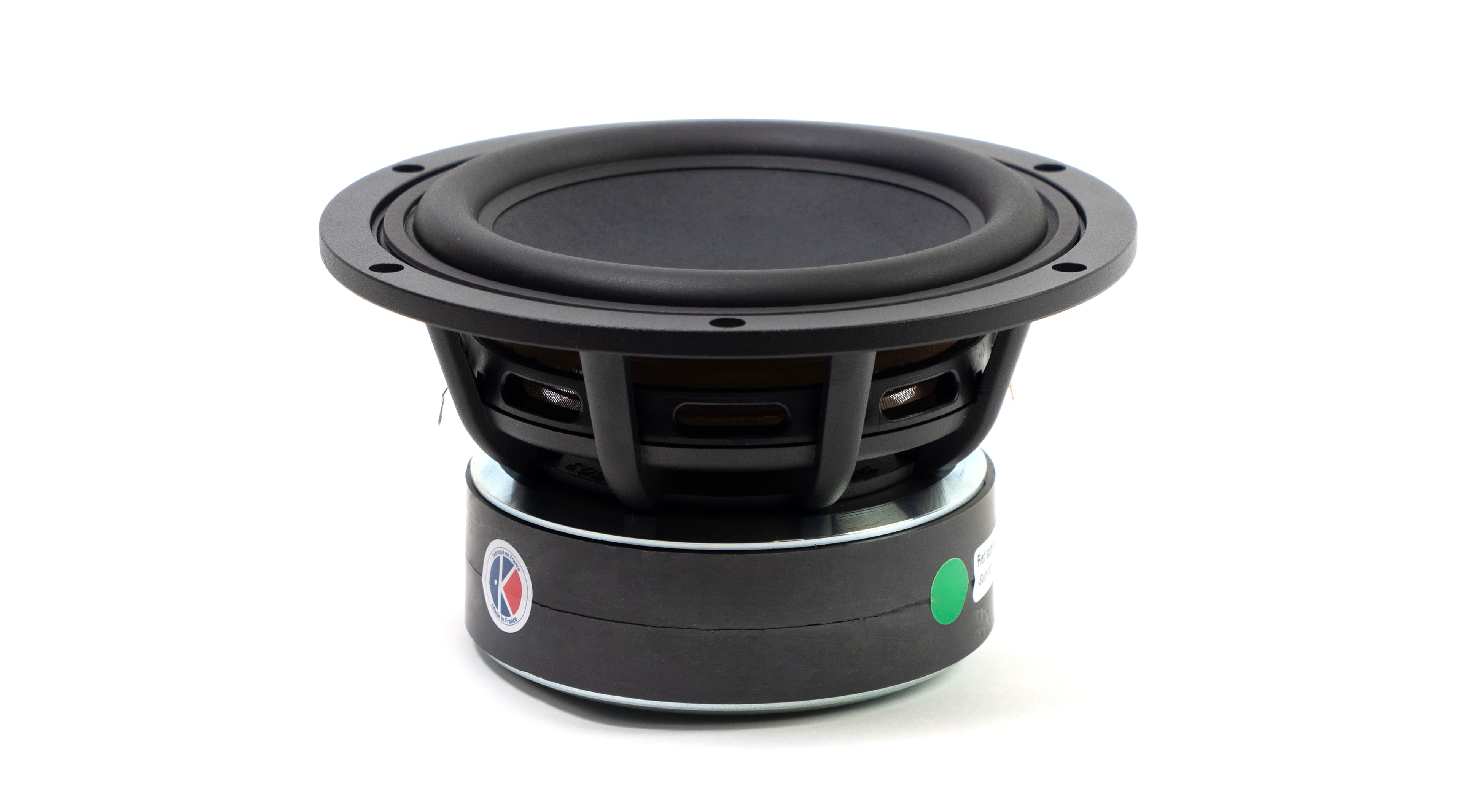

Kartesian SUB180_VMS is a 7-inch 8 ohm LF driver. The validated T/S data includes Fs 31 Hz, Qts 0.33, Vas 22.4 L, Xmax 11 mm, sensitivity 88.5 dB, plus 135 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Thiele/Small
- Fs
- 31Hz
- Qts
- 0.33
- Qms
- 2.2
- Vas
- 22.4L
- Re
- 6.2Ω
Motor and cone
- BL
- 8.8T·m
- Sd
- 123cm²
- Mms
- 25g
- Xmax
- 11mm
- Vd †
- 135cm³
Power and response
- Sensitivity
- 88.5dB
- Impedance
- 8Ω
- Range
- 30–700Hz
Size and mounting
- Diameter
- 180mm
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 7.086614173228347″
- BL
- 8.8T·m
- Fs
- 31Hz
- Re
- 6.2Ω
- Sd
- 123cm²
- Mms
- 25g
- Qms
- 2.2
- Qts
- 0.33
- SPL
- 88.5dB
- Vas
- 22.4L
- Xmax
- 11mm
- Impedance
- 8Ω
- Sensitivity
- 88.5dB
- Low limit
- 30Hz
- High limit
- 700Hz
- Manufacturer sensitivity
- 88.5dB
- Diameter
- 180mm
