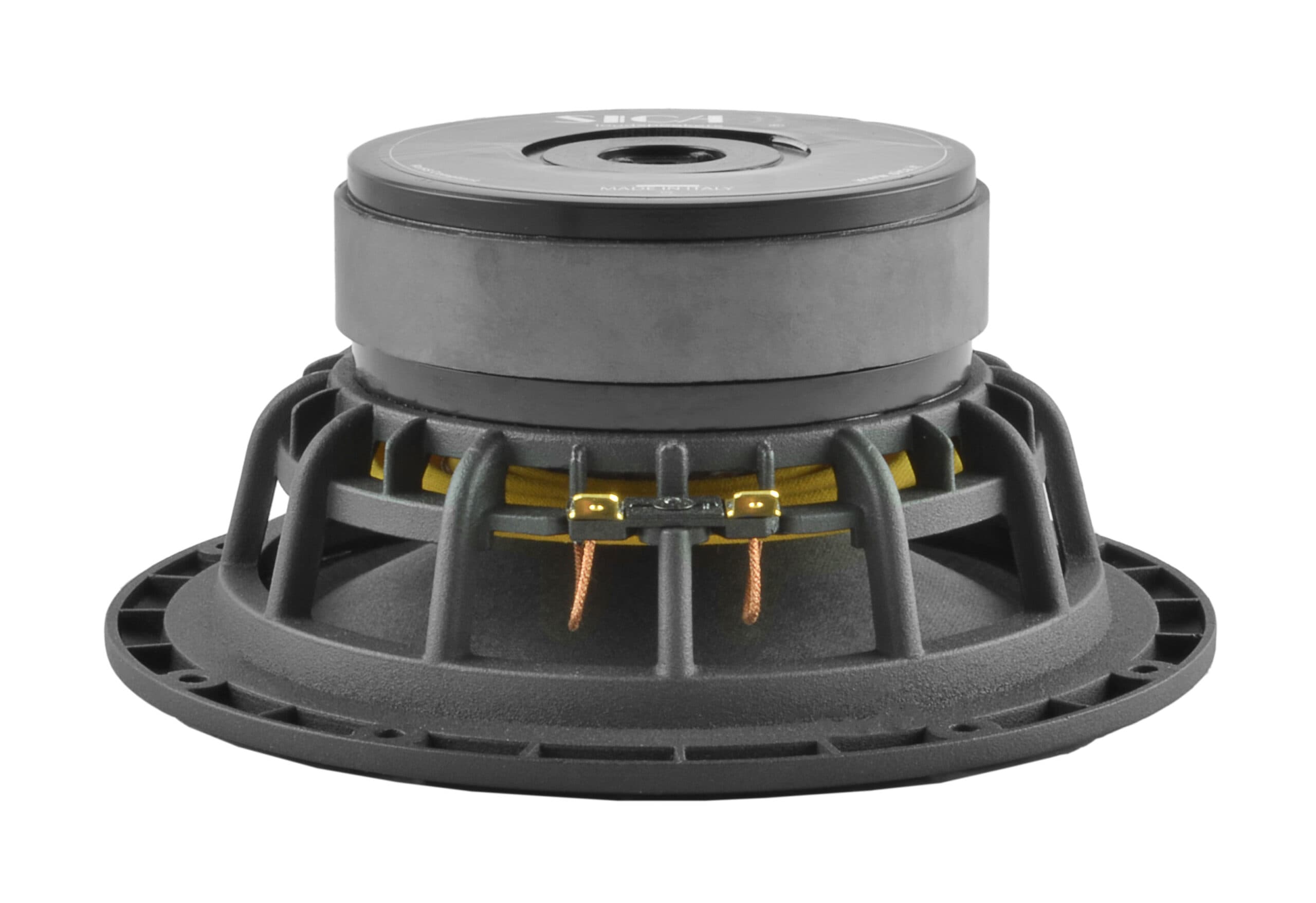

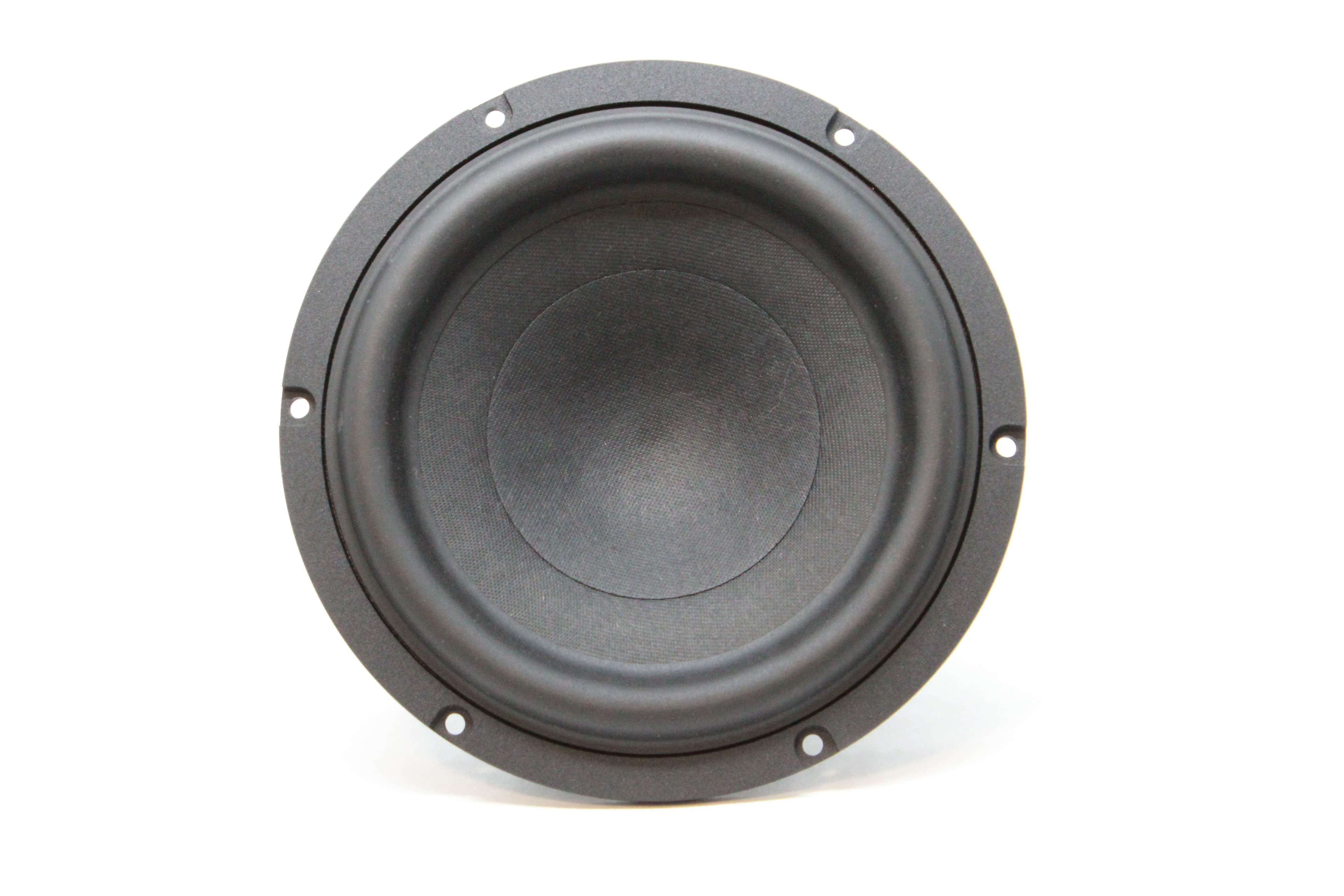

6-inch LF driver · vKi series · 150 W

Kartesian WOM155_VKI-S 8Ω

Name: Kartesian WOM155_VKI-S 8 Ohm
Brand: Kartesian
SKU: WOM155_VKI-S

8 Ω · 35–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 34Hz
Xmax: 12mm
SPL: 85dB
Pe: 150W
BL: 7.2T·m
Vd: 136cm³
Qts: –
Vas: 22L

See all 19 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian WOM155_VKI-S is a 6-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 34 Hz, Vas 22.3 L, Xmax 12 mm, sensitivity 85.2 dB, plus 136 cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qts

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax
EBP can be derived from Fs and Qes

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 34Hz
Qes: 0.42
Qms: 6.1
Vas: 22.3L
Re: 5.8Ω
Le: 0.12mH

Motor and cone

BL: 7.2T·m
Sd: 113cm²
Mms: 18g
Xmax: 12mm
Vd †: 136cm³

Power and response

Sensitivity †: 85.2dB
Manufacturer sensitivity: 86.5dB
Power: 150W
Impedance: 8Ω
Range: 35–3000Hz
EBP †: 80 · Sealed or vented

Size and mounting

Diameter: 155mm

Other published values

Rms: 0.62kg/s

Sensitivity shows 85.2 dB, calculated from the T/S values. Kartesian publishes 86.5 dB, 1.3 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 6.10236220472441″

BL: 7.2T·m
Fs: 34Hz
Le: 0.12mH
Re: 5.8Ω
Sd: 113cm²
Mms: 18g
Qes: 0.42
Qms: 6.1
Rms: 0.62kg/s
SPL: 85.2dB
Vas: 22.3L
Xmax: 12mm
Power: 150W
Impedance: 8Ω
Sensitivity: 86.5dB
Low limit: 35Hz
Calculated sensitivity †: 85.2dB
High limit: 3000Hz
Manufacturer sensitivity: 86.5dB
Diameter: 155mm
