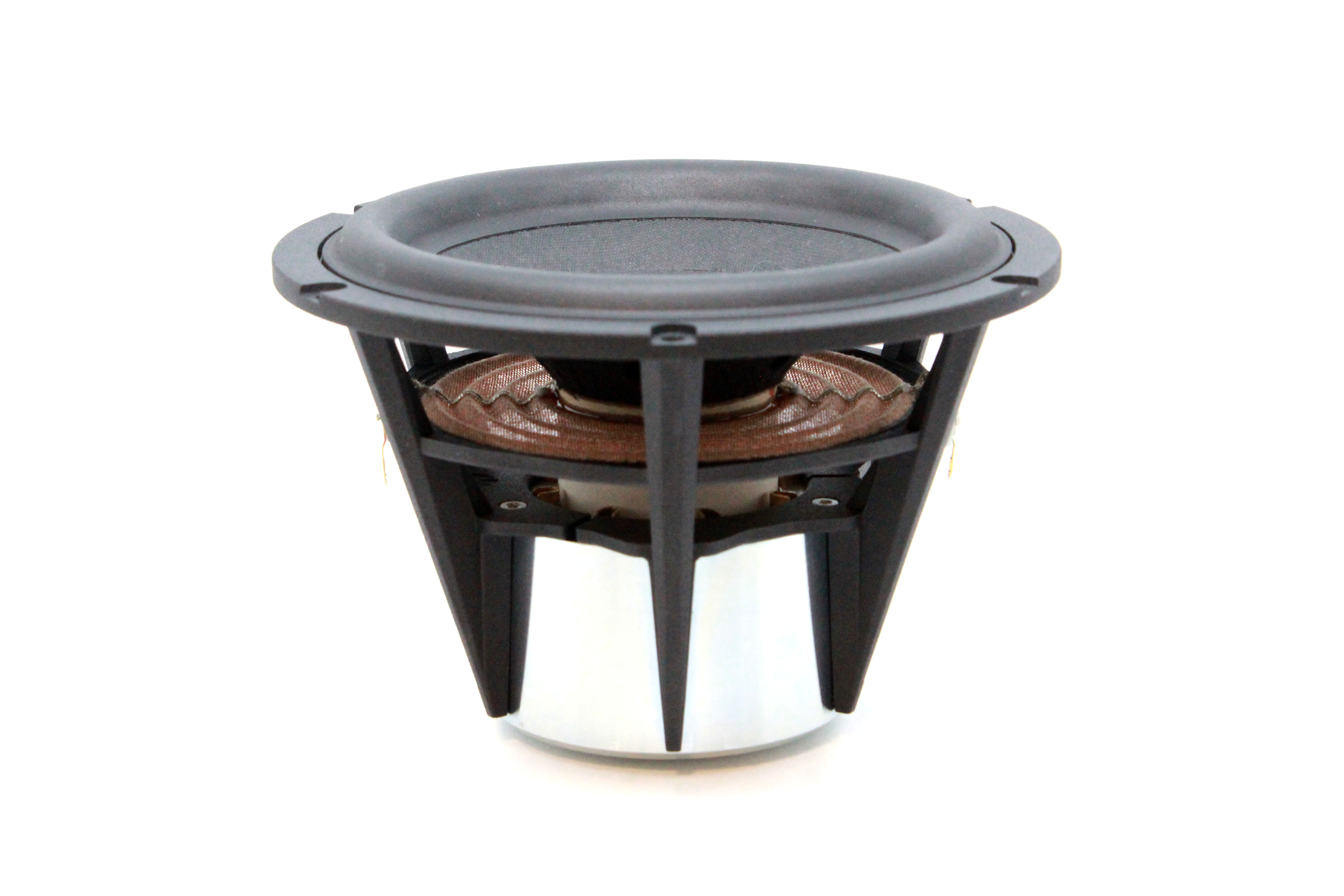

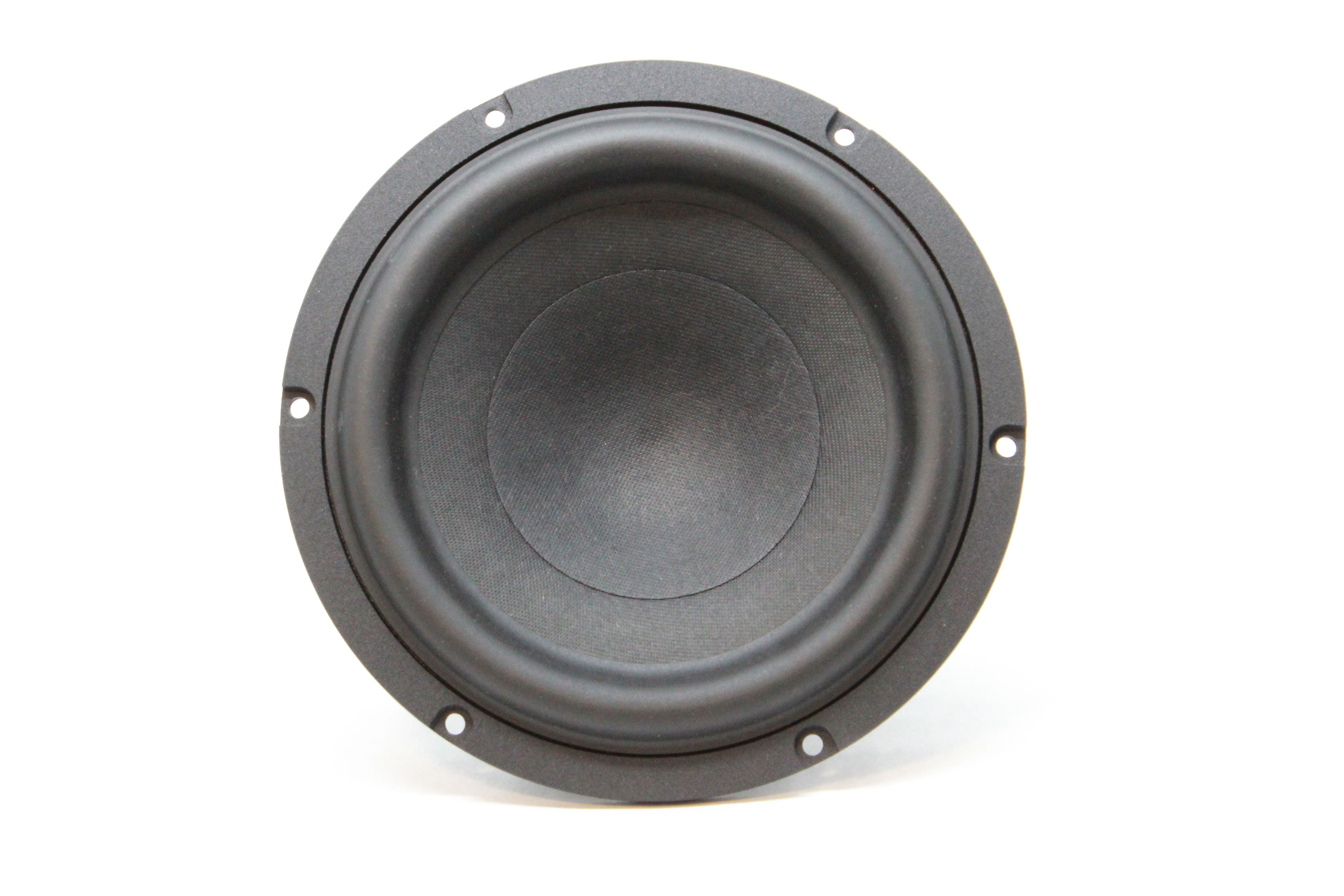

6-inch LF driver · vKi series · 150 W

Kartesian WOM155_VKI-C 6Ω

Name: Kartesian WOM155_VKI-C 6 Ohm
Brand: Kartesian
SKU: WOM155_VKI-C

6 Ω · 50–5000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 38Hz
Xmax: 10mm
SPL: 86dB
Pe: 150W
BL: 7.1T·m
Vd: 113cm³
Qts: 0.37
Vas: 18L

See all 20 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian WOM155_VKI-C is a 6-inch 6 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.37, Vas 17.9 L, Xmax 10 mm, sensitivity 86 dB, plus 113 cm³ Vd and 97 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 38Hz
Qts: 0.37
Qes: 0.39
Qms: 7.3
Vas: 17.9L
Re: 4.6Ω
Le: 0.08mH

Motor and cone

BL: 7.1T·m
Sd: 113cm²
Mms: 18g
Xmax: 10mm
Vd †: 113cm³

Power and response

Sensitivity †: 86dB
Manufacturer sensitivity: 88.5dB
Power: 150W
Impedance: 6Ω
Range: 50–5000Hz
EBP †: 97 · Sealed or vented

Size and mounting

Diameter: 155mm

Other published values

Rms: 0.85kg/s

Sensitivity shows 86.0 dB, calculated from the T/S values. Kartesian publishes 88.5 dB, 2.5 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 6.10236220472441″

BL: 7.1T·m
Fs: 38Hz
Le: 0.08mH
Re: 4.6Ω
Sd: 113cm²
Mms: 18g
Qes: 0.39
Qms: 7.3
Qts: 0.37
Rms: 0.85kg/s
SPL: 86dB
Vas: 17.9L
Xmax: 10mm
Power: 150W
Impedance: 6Ω
Sensitivity: 88.5dB
Low limit: 50Hz
Calculated sensitivity †: 86dB
High limit: 5000Hz
Manufacturer sensitivity: 88.5dB
Diameter: 155mm

Compare

Same-size drivers, compared with the WOM155_VKI-C. Clear differences are green when better and red when worse.

This driverWOM155_VKI-C

Best price

–

38 Hz

Qts

0.37

Vas

17.9 L

7.1 T·m

Xmax

10 mm

Sensitivity

86 dB

Power

150 W

Dayton AudioSIG180-4

£41.13

Fs41 Hz +7%

Qts0.38 –

Vas23.2 L +30%

BL6.6 T·m −7%

Xmax5 mm −50%

Sensitivity87.8 dB +1.8

CIAREHW161N

£43.54

Fs47 Hz +24%

Qts0.37 –

Vas19.9 L +11%

BL7.4 T·m +5%

Xmax5 mm −50%

Sensitivity88.6 dB +2.6

WavecorWF146WA06

£53.11

Fs40 Hz +5%

Qts0.36 –

Vas16.6 L −7%

BL6.3 T·m −11%

Xmax3 mm −70%

Sensitivity86.5 dB +0.5

Sica6 H 1.5 CP

£55.18

Fs46 Hz +21%

Qts0.35 −5%

Vas16.6 L −7%

BL8.4 T·m +18%

Xmax6 mm −40%

Sensitivity88.3 dB +2.3

Dayton AudioRS180P-8

£59.83

Fs46 Hz +21%

Qts0.34 −8%

Vas22 L +23%

BL7.2 T·m –

Xmax6 mm −40%

Sensitivity88.8 dB +2.8

CIAREHW172

£62.80

Fs46 Hz +21%

Qts0.37 –

Vas20 L +12%

BL7.6 T·m +7%

Xmax4.5 mm −55%

Sensitivity88.4 dB +2.4

CIAREHWB160

£66.98

Fs46 Hz +21%

Qts0.36 –

Vas19.5 L +9%

BL6.5 T·m −8%

Xmax4.5 mm −55%

Sensitivity89 dB +3

Scanspeak18W/4434G00

£72.01

Fs47 Hz +24%

Qts0.35 −5%

Vas20.7 L +16%

BL6 T·m −15%

Xmax4.3 mm −57%

Sensitivity89.7 dB +3.7

SEASH1571-08 U18RNX/P

£125.61

Fs43 Hz +13%

Qts0.37 –

Vas22 L +23%

BL6.9 T·m –

Xmax6 mm −40%

Sensitivity87.9 dB +1.9

RS SpeakersMW 174.38 FIBONACCI

£145.69

Fs46 Hz +20%

Qts0.39 +5%

Vas18.7 L +4%

BL7.0 T·m –

Xmax4.5 mm −55%

Sensitivity88.3 dB +2.3

WavecorWF152BD12

£149.88

Fs46 Hz +21%

Qts0.38 –

Vas9.6 L −46%

BL7.2 T·m –

Xmax4.5 mm −55%

Sensitivity85.7 dB –

Scanspeak15W/8531K00

£150.70

Fs39 Hz –

Qts0.38 –

Vas16.7 L −7%

BL6.6 T·m −7%

Xmax6.5 mm −35%

Sensitivity85.8 dB –

Scanspeak15W/8530K00

£157.03

Fs39 Hz –

Qts0.39 +5%

Vas16 L −11%

BL6.6 T·m −7%

Xmax6.5 mm −35%

Sensitivity85.5 dB −0.5

Scanspeak15M/8631G00

£167.42

Fs42 Hz +11%

Qts0.35 −5%

Vas16.2 L −9%

BL6.8 T·m −4%

Xmax3 mm −70%

Sensitivity87.1 dB +1.1

Scanspeak18WU/8747T00

£284.64

Fs36 Hz −5%

Qts0.38 –

Vas36.2 L +102%

BL7.4 T·m +4%

Xmax9 mm −10%

Sensitivity88 dB +2

Scanspeak18WU/4747T00

£288.83

Fs36 Hz −5%

Qts0.35 −5%

Vas36 L +101%

BL5.9 T·m −17%

Xmax9 mm −10%

Sensitivity88.4 dB +2.4

Scanspeak18WU/8741T00

£300.68

Fs35 Hz −8%

Qts0.39 +5%

Vas37.1 L +107%

BL7.3 T·m –

Xmax9 mm −10%

Sensitivity87.6 dB +1.6

Scanspeak18WU/4741T00

£304.20

Fs34 Hz −11%

Qts0.36 –

Vas38.4 L +115%

BL5.9 T·m −17%

Xmax9 mm −10%

Sensitivity87.9 dB +1.9

PurifiPTT6.5X08-NAA-08

£393.49

Fs34 Hz −11%

Qts0.40 +8%

Vas20.4 L +14%

BL9 T·m +27%

Xmax9.8 mm –

Sensitivity84.8 dB −1.2

PurifiPTT6.5X04-NAA-08

No current price

Fs32 Hz −16%

Qts0.35 −5%

Vas20.5 L +15%

BL7.8 T·m +10%

Xmax9.8 mm –

Sensitivity84.6 dB −1.4

RS SpeakersW 174.38 FIBONACCI

No current price

Fs38 Hz –

Qts0.38 –

Vas22.9 L +28%

BL7.2 T·m –

Xmax6 mm −40%

Sensitivity87 dB +1

Sica6.5 C 1.5 CP

No current price

Fs51 Hz +34%

Qts0.39 +5%

Vas15.9 L −11%

BL7.2 T·m –

Xmax4.5 mm −55%

Sensitivity89 dB +3

CIARECW161N

No current price

Fs52 Hz +37%

Qts0.35 −5%

Vas17.4 L –

BL6.1 T·m −15%

Xmax4 mm −60%

Sensitivity89.7 dB +3.7

HiViD6.4+

No current price

Fs44 Hz +16%

Qts0.36 –

Vas13.9 L −22%

BL6.6 T·m −7%

Xmax4 mm −60%

Sensitivity86.5 dB +0.5

CelestionNTR06-1705D

No current price

Fs49 Hz +29%

Qts0.38 –

Vas21.4 L +20%

BL8.2 T·m +15%

Xmax6 mm −40%

Sensitivity90 dB +4

HiViS6N

No current price

Fs45 Hz +18%

Qts0.35 −5%

Vas23.4 L +31%

BL7.6 T·m +7%

Xmax4.3 mm −57%

Sensitivity89.4 dB +3.4

HiViSS6N

No current price

Fs44 Hz +16%

Qts0.36 –

Vas23.9 L +34%

BL7.6 T·m +7%

Xmax4.3 mm −57%

Sensitivity89.1 dB +3.1

Sica5.5 H 1.5 CP

No current price

Fs48 Hz +26%

Qts0.37 –

Vas8.4 L −53%

BL7.2 T·m –

Xmax4.5 mm −55%

Sensitivity85.7 dB –

HiViS6.5R

No current price

Fs41 Hz +8%

Qts0.38 –

Vas23.2 L +30%

BL6.5 T·m −8%

Xmax5.8 mm −42%

Sensitivity87.8 dB +1.8

KartesianLOM155_VKI

No current price

Fs48 Hz +26%

Qts0.33 −11%

Vas16.6 L −7%

BL6.3 T·m −11%

Xmax6 mm −40%

Sensitivity89.1 dB +3.1
