LF DriverIlluminator series
Scanspeak

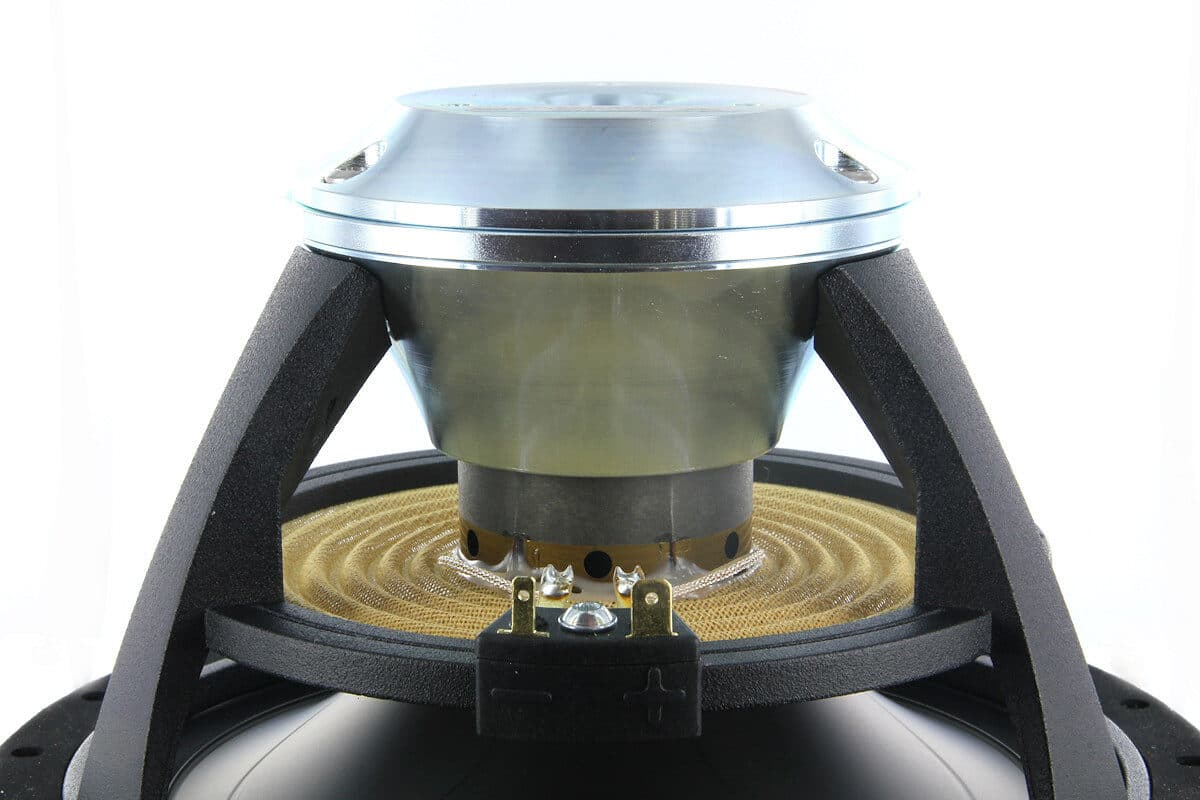

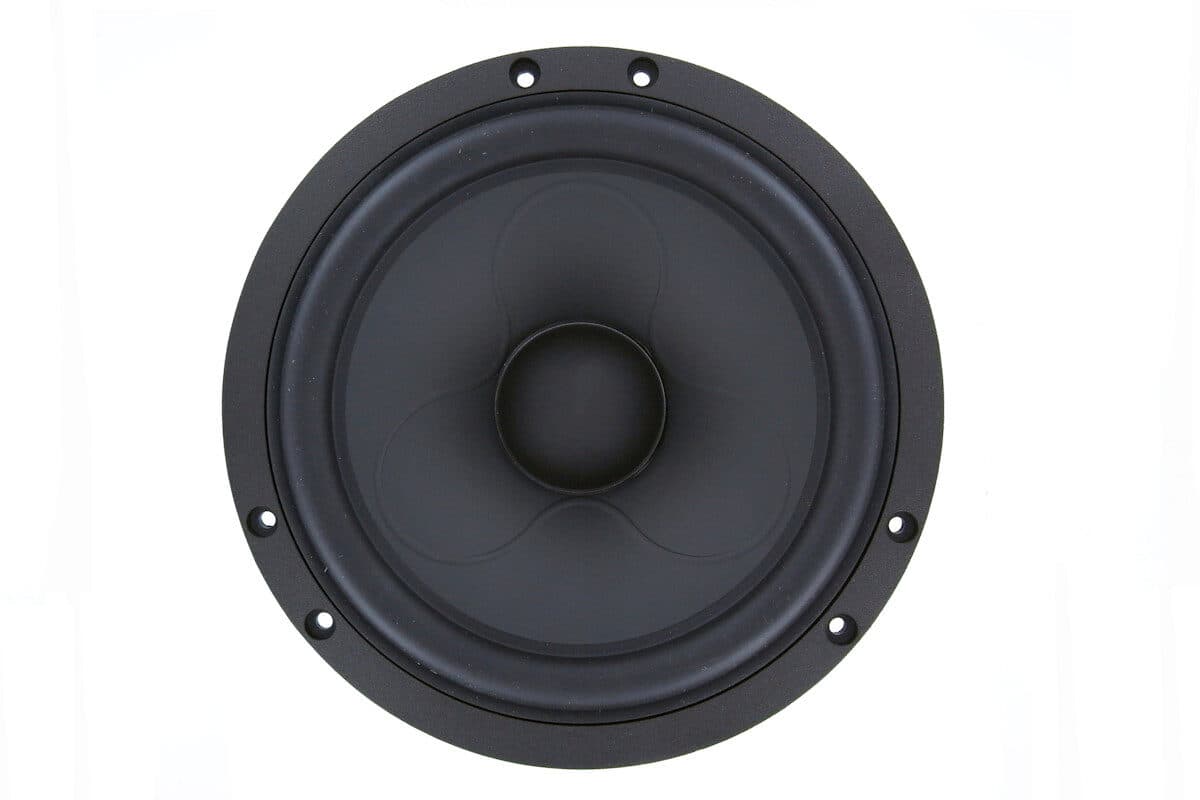

Scanspeak 18WU/8747T00
Scanspeak 18WU/8747T00 is a 7" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 36Hz, Qts 0.38, Vas 36.2L, Xmax 9mm, sensitivity 88dB, plus 139cm³ Vd and 84 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £313.95.
Size
7"
Impedance
8Ω
RMS Power
70W
Sensitivity
88.0dB
85.5dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
84
Either alignment
Vd
139cm³
T/S Parameters
Valid
Fs36Hz
Qts0.38
Qes0.43
Qms3.7
Vas36.2L
Re5.8Ω
Le0.60mH
BL7.4Tm
Sd154cm²
Mms18g
Xmax9.0mm
SPL88dB
Power70W
Impedance8Ω
Min Impedance7.3Ω
Voice Coil42mm
Pricing & availability
Price definitionsPrice movement
Best current price
£313.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter180.0mm
