LF DriverPrestige series
SEAS
SEAS H1794-08 FEA18RCZ
SEAS H1794-08 FEA18RCZ is a 6.5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 42Hz, Qts 0.39, Vas 31L, Xmax 3mm, sensitivity 89.4dB, plus 41cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
40W
Sensitivity
89.4dB
EBP
100
Either alignment
Vd
41cm³

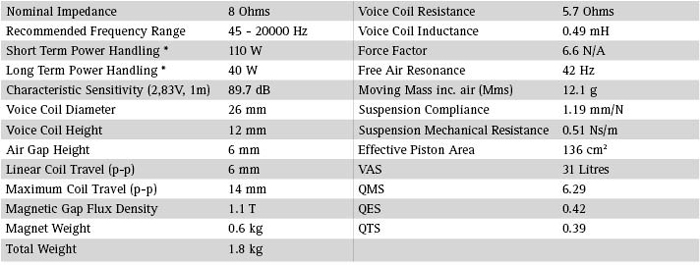

T/S Parameters
Valid
Fs42Hz
Qts0.39
Qes0.42
Qms6.3
Vas31.0L
Re5.7Ω
Le0.49mH
BL6.6Tm
Sd136cm²
Xmax3.0mm
SPL89dB
Power40W
Impedance8Ω
F Low45Hz
F High20000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

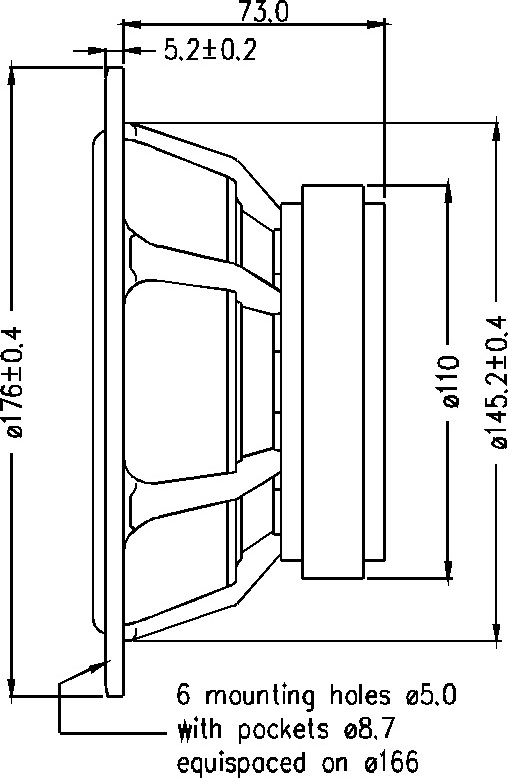

Dimensions & Physical
Weight1.8kg
