Overview
LF DriverExcel series
SEAS

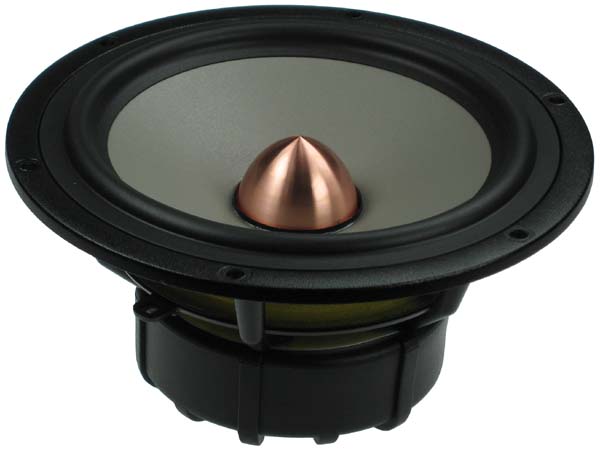

SEAS E0018-08S W18E001
SEAS E0018-08S W18E001 is a 15" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 34Hz, Qts 0.42, Vas 30L, Xmax 5mm, sensitivity 85.8dB, plus 63cm³ Vd and 69 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
100W
Sensitivity
85.8dB
EBP
69
Either alignment
Vd
63cm³

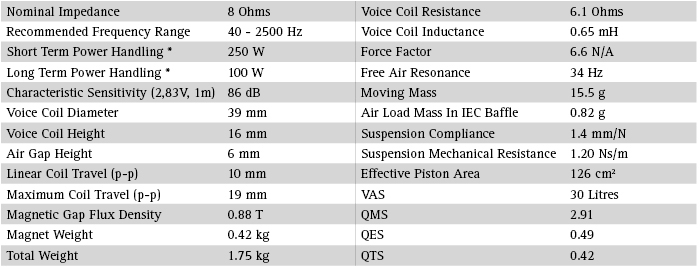

T/S Parameters
Valid
Fs34Hz
Qts0.42
Qes0.49
Qms2.9
Vas30.0L
Re6.1Ω
Le0.65mH
BL6.6Tm
Sd126cm²
Mms16g
Xmax5.0mm
SPL86dB
Power100W
Impedance8Ω
F Low40Hz
F High2500Hz
Voice Coil39mm
Flux Density0.88T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

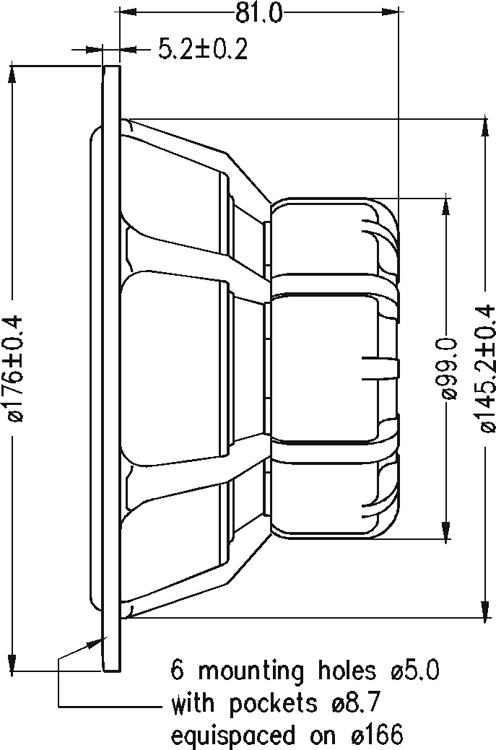

Dimensions & Physical
Weight1.8kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SEAS
E0018-08S W18E001
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
SEAS
E0037-08S W15CH001
15"
Xmax4mm-20%
Qts0.420%
BL5.1Tm-23%
Vas14L-53%
Qes0.5+2%
58%
Similarity
SEAS

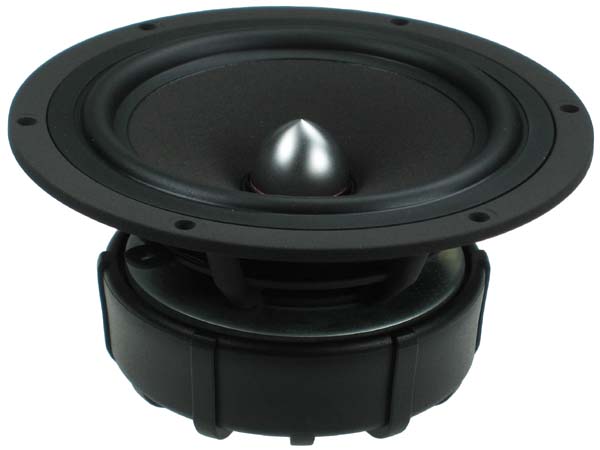

E0041-08S W15LY001
