Wavecor WF168OM01 4Ω
LF DriverMedia
Wavecor
WF168OM01
Image unavailable
Overview
LF DriverWF168OM series
Wavecor
Wavecor WF168OM01
Wavecor WF168OM01 is a 6.5" 4 ohm LF driver. The validated T/S data includes Fs 39Hz, Qts 0.45, Vas 29.5L, Xmax 4.2mm, sensitivity 87.7dB, plus 55cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
Sensitivity
87.7dB
EBP
83
Either alignment
Vd
55cm³

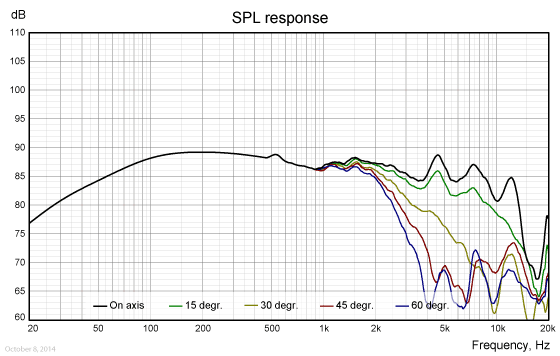

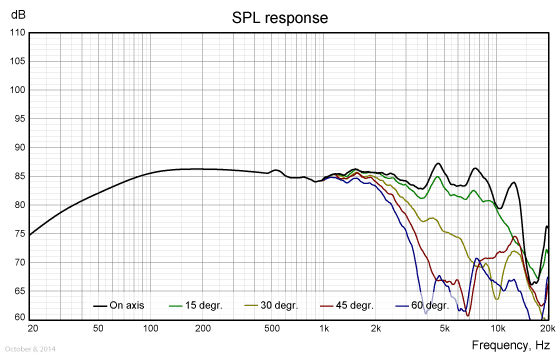

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence561 selected pixels of 561 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence548 selected pixels of 548
T/S Parameters
Valid
Fs39Hz
Qts0.45
Qes0.47
Qms8.7
Vas29.5L
Re3.2Ω
BL4.8Tm
Sd131cm²
Mms14g
Xmax4.2mm
SPL88dB
Impedance4Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
WF168OM01
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
Wavecor
WF166TU01
6.5"
Xmax3.5mm-17%
Qts0.450%
BL5.2Tm+8%
Vas23.2L-21%
Qes0.470%
75%
Similarity
CIARE
CW170
6.5"
Xmax4.3mm+2%
Qts0.47+4%
BL4.6Tm-4%
Vas18L-39%
Qes0.56+19%
Image unavailable
75%
Similarity
Wavecor
WF168WA05
6.5"
Xmax3mm-29%
Qts0.42-7%
BL5Tm+4%
Vas27.7L-6%
Qes0.45-4%
73%
Similarity
Wavecor
WF168WA01
6.5"
Xmax3mm-29%
Qts0.43-4%
BL5.1Tm+6%
Vas24.6L-17%
Qes0.46-2%
72%
Similarity

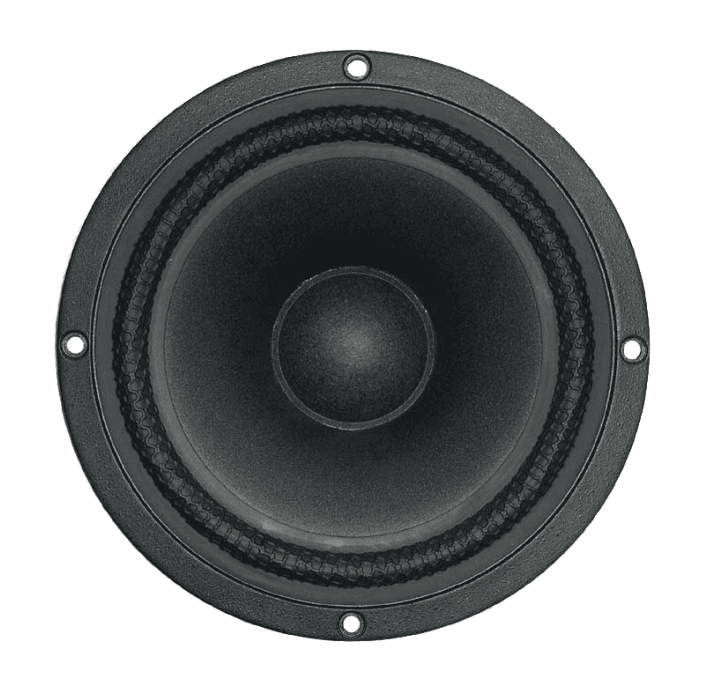

Tang Band
W6-789E
6"
Xmax4.3mm+1%
Qts0.46+2%
BL5.1Tm+7%
Vas41.5L+41%
Qes0.5+6%
71%
Similarity

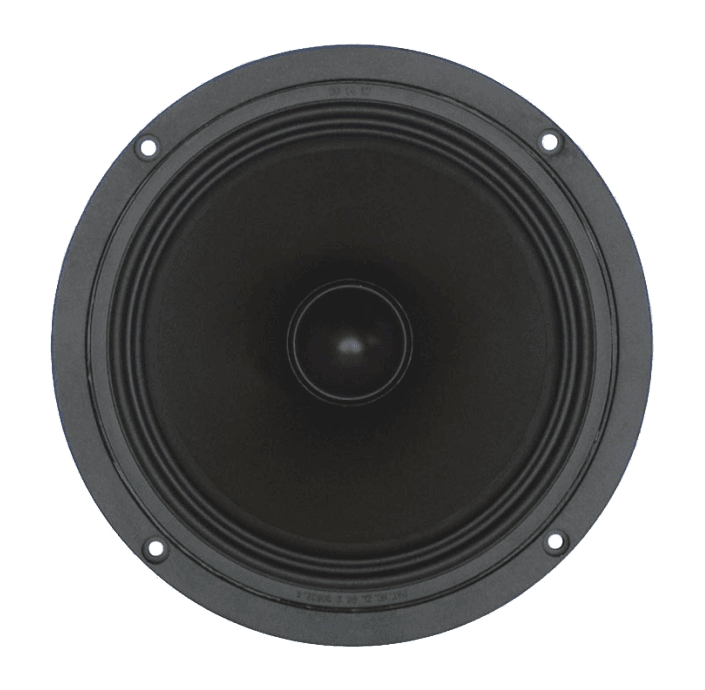

Tang Band
W6-658I
6"
Xmax4.1mm-2%
Qts0.44-2%
BL6.3Tm+32%
Vas28.3L-4%
Qes0.49+4%
69%
Similarity
Wavecor
WF166TU02
6.5"
Xmax3mm-29%
Qts0.48+7%
BL5Tm+4%
Vas22.3L-24%
Qes0.5+6%
69%
Similarity

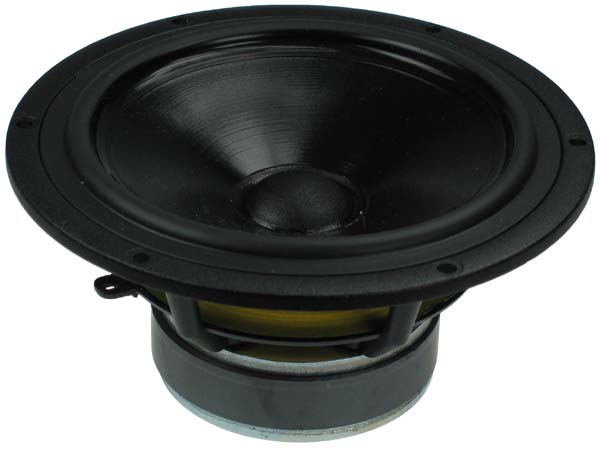

SEAS
H1217-08 CA18RLY
6.5"
Xmax5mm+19%
Qts0.47+4%
BL5.6Tm+17%
Vas32L+8%
Qes0.56+19%
Image unavailable
66%
Similarity
Wavecor
WF168OM02
6.5"
Xmax4.2mm0%
Qts0.54+20%
BL6Tm+25%
Vas29.5L0%
Qes0.57+21%
61%
Similarity
£175.95
Scanspeak
15W/8534T00
6"
Xmax5mm+19%
Qts0.39-13%
BL5.5Tm+15%
Vas30L+2%
Qes0.43-9%
58%
Similarity
£91.95
Monacor
SPH-170
6.5"
Xmax3mm-29%
Qts0.44-2%
BL5.9Tm+23%
Vas37L+25%
Qes0.55+17%
54%
Similarity
CIARE
CW161N
6.5"
Xmax4mm-5%
Qts0.35-22%
BL6.1Tm+26%
Vas17.4L-41%
Qes0.42-11%
