LF DriverSB16 series
SB Acoustics
SB Acoustics SB16PFCR25-8
SB Acoustics SB16PFCR25-8 is a 6" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 38Hz, Qts 0.40, Vas 27L, Xmax 9mm, sensitivity 86.9dB, plus 112cm³ Vd and 79 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £26.00.
Size
6"
Impedance
8Ω
RMS Power
40W
Sensitivity
86.9dB
EBP
79
Either alignment
Vd
112cm³

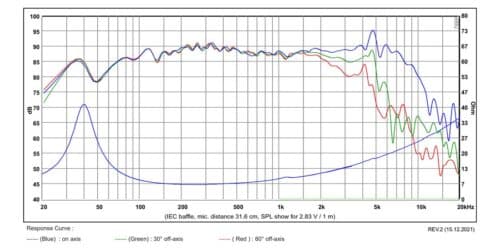

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees218 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,921 selected pixels of 3,382 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
218 plotted pointsMedium confidence694 selected pixels of 2,508 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,943 selected pixels of 4,961
T/S Parameters
Valid
Fs38Hz
Qts0.40
Qes0.48
Qms2.5
Vas27.0L
Re5.6Ω
Le0.77mH
BL6.2Tm
Sd124cm²
Mms14g
Xmax9.0mm
SPL87dB
Power40W
Impedance8Ω
Voice Coil25mm
Flux Density1.07T
Pricing & availability
Price definitionsPrice movement
Best current price
£26.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
