Overview
LF DriverSB17 series
SB Acoustics
SB Acoustics SB17NRX2C35-8
SB Acoustics SB17NRX2C35-8 is a 6" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 37Hz, Qts 0.42, Vas 27L, Xmax 11mm, sensitivity 86.5dB, plus 130cm³ Vd and 78 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £55.41.
Size
6"
Impedance
8Ω
RMS Power
50W
Sensitivity
86.5dB
EBP
78
Either alignment
Vd
130cm³

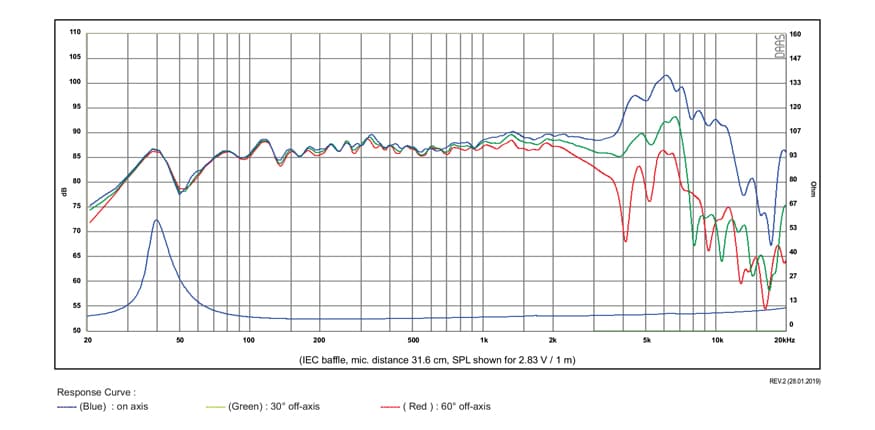

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence2,038 selected pixels of 3,192 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,304 selected pixels of 3,219 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,020 selected pixels of 5,162
T/S Parameters
Valid
Fs37Hz
Qts0.42
Qes0.47
Qms4.5
Vas27.0L
Re5.7Ω
Le0.15mH
BL6.3Tm
Sd118cm²
Mms14g
Xmax11.0mm
SPL87dB
Power50W
Impedance8Ω
Voice Coil36mm
Flux Density0.93T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£55.41
inc VAT
Back order
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£65.25
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£73.95
inc VAT
Best current price
Updated 17 May 2026
leanbusiness
£55.41
Avg £64.68£9.27 below avg (-14.3%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
