- Fs
- 46Hz
- Xmax
- 4mm
- SPL
- 90dB
- Pe
- 30W
- BL
- 6.7T·m
- Vd
- 56cm³
- Qts
- 0.41
- Vas
- 30L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,272 selected pixels of 1,614

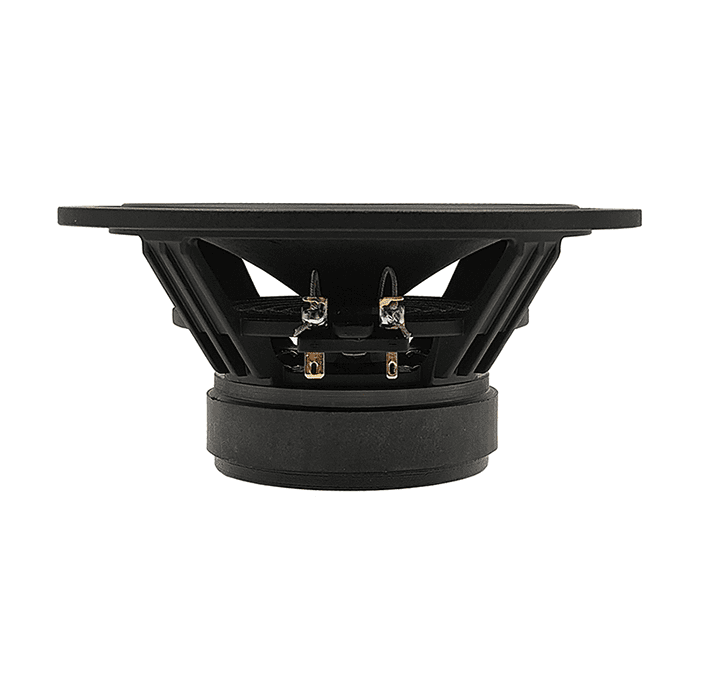

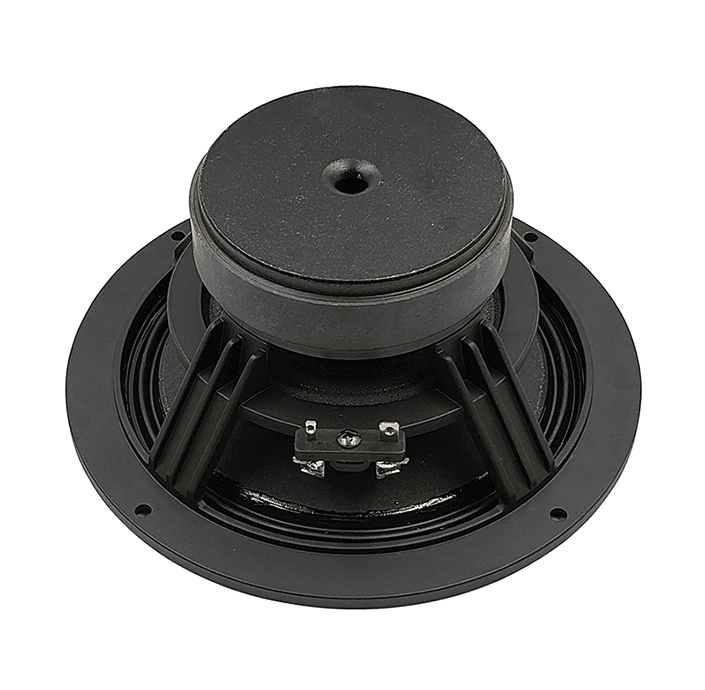

Tang Band W6-623I is a 6-inch 8 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.41, Vas 29.8 L, Xmax 4 mm, sensitivity 90.1 dB, plus 56 cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.41
- Qes
- 0.45
- Qms
- 5.2
- Vas
- 29.8L
- Re
- 6Ω
- Le
- 0.17mH
Motor and cone
- BL
- 6.7T·m
- Sd
- 140cm²
- Mms
- 12g
- Xmax
- 4mm
- Vd †
- 56cm³
Power and response
- Sensitivity †
- 90.1dB
- Manufacturer sensitivity
- 89dB
- Power
- 30W
- Impedance
- 8Ω
- EBP †
- 102 · Leans vented
Other published values
- Power Peak
- 60
Sensitivity shows 90.1 dB, calculated from the T/S values. Tang Band publishes 89.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 6″
- BL
- 6.7T·m
- Fs
- 46Hz
- Le
- 0.17mH
- Re
- 6Ω
- Sd
- 140cm²
- Mms
- 12g
- Qes
- 0.45
- Qms
- 5.2
- Qts
- 0.41
- SPL
- 90.1dB
- Vas
- 29.8L
- Xmax
- 4mm
- Power
- 30W
- Impedance
- 8Ω
- Power Peak
- 60
- Sensitivity
- 89dB
- Calculated sensitivity †
- 90.1dB
- Manufacturer sensitivity
- 89dB
