Tang Band validated drivers

Canonical public records sorted by model, with direct links to full driver pages.

  1. Tang Band W1-1070SH 8 Ohm loudspeaker driver

    Tang Band W1-1070SH 8 Ohm

    1" | 4W RMS | Fs 180Hz | Qts 0.42 | Xmax 2.0mm

    View specs
  2. Tang Band W1-1815SA 4 Ohm loudspeaker driver

    Tang Band W1-1815SA 4 Ohm

    1" | 2W RMS | Fs 170Hz | Qts 0.53 | Xmax 1.3mm

    View specs
  3. Tang Band W1-1828SA 4 Ohm loudspeaker driver

    Tang Band W1-1828SA 4 Ohm

    1" | 4W RMS | Fs 120Hz | Qts 0.33 | Xmax 1.3mm

    View specs
  4. Tang Band W1-1925SB 3.5 Ohm loudspeaker driver

    Tang Band W1-1925SB 3.5 Ohm

    1" | 1W RMS | Fs 220Hz | Qts 0.54 | Xmax 0.8mm

    View specs
  5. Tang Band W1-1925SB 4 Ohm loudspeaker driver

    Tang Band W1-1925SB 4 Ohm

    1" | 1W RMS | Fs 220Hz | Qts 0.54 | Xmax 0.8mm

    View specs
  6. Tang Band W1-1931S 3.6 Ohm loudspeaker driver

    Tang Band W1-1931S 3.6 Ohm

    1" | 2W RMS | Fs 170Hz | Qts 0.46 | Xmax 1.2mm

    View specs
  7. Tang Band W1-1931S 4 Ohm loudspeaker driver

    Tang Band W1-1931S 4 Ohm

    1" | 2W RMS | Fs 170Hz | Qts 0.46 | Xmax 1.2mm

    View specs
  8. Tang Band W1-1942S 4 Ohm loudspeaker driver

    Tang Band W1-1942S 4 Ohm

    1" | 4W RMS | Fs 120Hz | Qts 0.24 | Xmax 1.3mm

    View specs
  9. Tang Band W1-2025SA 3.6 Ohm loudspeaker driver

    Tang Band W1-2025SA 3.6 Ohm

    1" | 2W RMS | Fs 200Hz | Qts 0.46 | Xmax 0.8mm

    View specs
  10. Tang Band W1-2025SA 4 Ohm loudspeaker driver

    Tang Band W1-2025SA 4 Ohm

    1" | 2W RMS | Fs 200Hz | Qts 0.46 | Xmax 0.8mm

    View specs
  11. Tang Band W1-2121S 4 Ohm loudspeaker driver

    Tang Band W1-2121S 4 Ohm

    1" | 6W RMS | Fs 120Hz | Qts 0.35 | Xmax 2.3mm

    View specs
  12. Tang Band W1-2361S 3.6 Ohm loudspeaker driver

    Tang Band W1-2361S 3.6 Ohm

    1" | 1W RMS | Fs 220Hz | Qts 0.42 | Xmax 0.3mm

    View specs
  13. Tang Band W1-2361S 4 Ohm loudspeaker driver

    Tang Band W1-2361S 4 Ohm

    1" | 1W RMS | Fs 220Hz | Qts 0.42 | Xmax 0.3mm

    View specs
  14. Tang Band W1-2370S 4 Ohm loudspeaker driver

    Tang Band W1-2370S 4 Ohm

    1" | 2W RMS | Fs 170Hz | Qts 0.47 | Xmax 1.0mm

    View specs
  15. Tang Band W1-2396S 4 Ohm loudspeaker driver

    Tang Band W1-2396S 4 Ohm

    1" | 3W RMS | Fs 180Hz | Qts 0.59 | Xmax 1.1mm | from GBP 20.90

    View specs
  16. Tang Band W2-1625SA 6.6 Ohm loudspeaker driver

    Tang Band W2-1625SA 6.6 Ohm

    2" | 20W RMS | Fs 90Hz | Qts 0.31 | Xmax 2.0mm

    View specs
  17. Tang Band W2-1625SA 8 Ohm loudspeaker driver

    Tang Band W2-1625SA 8 Ohm

    2" | 20W RMS | Fs 90Hz | Qts 0.31 | Xmax 2.0mm

    View specs
  18. Tang Band W2-1767S 8 Ohm loudspeaker driver

    Tang Band W2-1767S 8 Ohm

    2" | 20W RMS | Fs 110Hz | Qts 0.36 | Xmax 3.0mm

    View specs
  19. Tang Band W2-1803S 6 Ohm loudspeaker driver

    Tang Band W2-1803S 6 Ohm

    2" | 3W RMS | Fs 155Hz | Qts 0.75 | Xmax 0.7mm

    View specs
  20. Tang Band W2-2040S 4 Ohm loudspeaker driver

    Tang Band W2-2040S 4 Ohm

    2" | 10W RMS | Fs 75Hz | Qts 0.26 | Xmax 5.3mm

    View specs
  21. Tang Band W2-2136S 4 Ohm loudspeaker driver

    Tang Band W2-2136S 4 Ohm

    2" | 10W RMS | Fs 120Hz | Qts 0.31 | Xmax 2.0mm

    View specs
  22. Tang Band W2-2181S 4 Ohm loudspeaker driver

    Tang Band W2-2181S 4 Ohm

    2" | 10W RMS | Fs 120Hz | Qts 0.34 | Xmax 2.0mm

    View specs
  23. Tang Band W2-2243S 4 Ohm loudspeaker driver

    Tang Band W2-2243S 4 Ohm

    2" | 10W RMS | Fs 160Hz | Qts 0.30 | Xmax 1.0mm

    View specs
  24. Tang Band W2-2355S 4 Ohm loudspeaker driver

    Tang Band W2-2355S 4 Ohm

    2" | 10W RMS | Fs 80Hz | Qts 0.56 | Xmax 5.0mm

    View specs

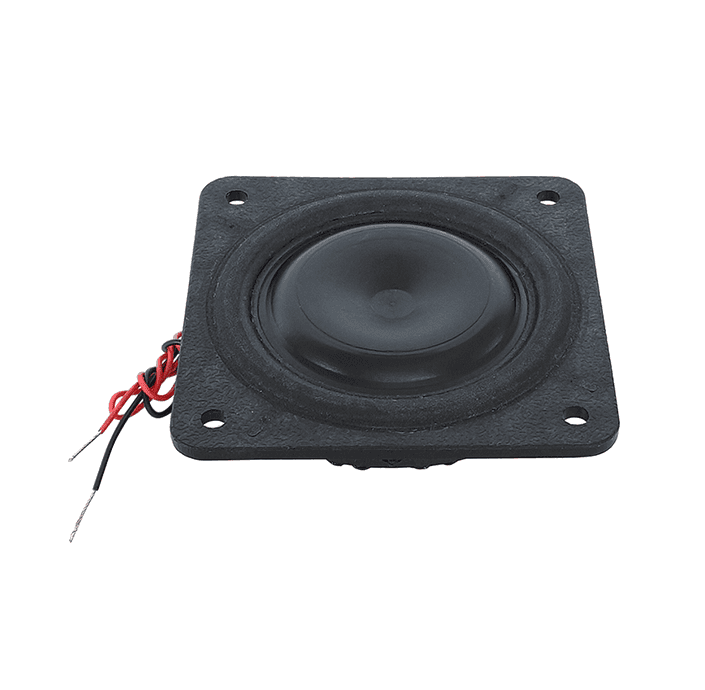

  25. Tang Band W2-2360S 4 Ohm loudspeaker driver

    Tang Band W2-2360S 4 Ohm

    2" | 6W RMS | Fs 170Hz | Qts 0.32 | Xmax 1.0mm

    View specs
  26. Tang Band W2-780SD 8 Ohm loudspeaker driver

    Tang Band W2-780SD 8 Ohm

    2" | 8W RMS | Fs 155Hz | Qts 0.35 | Xmax 1.0mm

    View specs
  27. Tang Band W2-802SE 6 Ohm loudspeaker driver

    Tang Band W2-802SE 6 Ohm

    2" | 8W RMS | Fs 160Hz | Qts 0.36 | Xmax 1.0mm

    View specs
  28. Tang Band W2-802SE 8 Ohm loudspeaker driver

    Tang Band W2-802SE 8 Ohm

    2" | 8W RMS | Fs 160Hz | Qts 0.36 | Xmax 1.0mm

    View specs
  29. Tang Band W2-803SM 4 Ohm loudspeaker driver

    Tang Band W2-803SM 4 Ohm

    2" | 8W RMS | Fs 160Hz | Qts 0.40 | Xmax 0.8mm

    View specs
  30. Tang Band W2-835SL 8 Ohm loudspeaker driver

    Tang Band W2-835SL 8 Ohm

    2" | 10W RMS | Fs 160Hz | Qts 0.30 | Xmax 1.0mm

    View specs

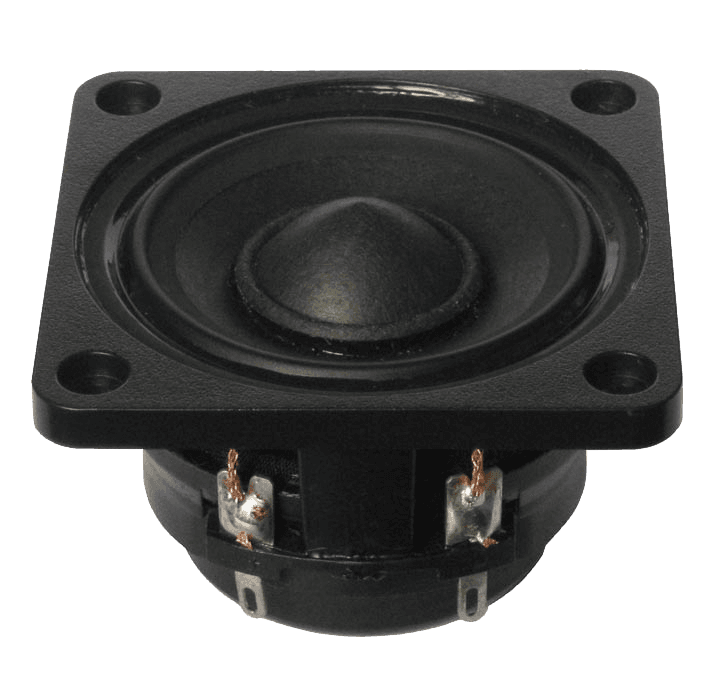

  31. Tang Band W2-852SH 4 Ohm loudspeaker driver

    Tang Band W2-852SH 4 Ohm

    2" | 8W RMS | Fs 160Hz | Qts 0.29 | Xmax 1.0mm

    View specs
  32. Tang Band W23-1286SH 4 Ohm loudspeaker driver

    Tang Band W23-1286SH 4 Ohm

    23" | 12W RMS | Fs 150Hz | Qts 0.68 | Xmax 0.9mm

    View specs
  33. Tang Band W3-1053SC 8 Ohm loudspeaker driver

    Tang Band W3-1053SC 8 Ohm

    3" | 15W RMS | Fs 100Hz | Qts 0.52 | Xmax 0.8mm

    View specs
  34. Tang Band W3-1231SN 6 Ohm loudspeaker driver

    Tang Band W3-1231SN 6 Ohm

    3" | 15W RMS | Fs 100Hz | Qts 0.34 | Xmax 1.3mm

    View specs
  35. Tang Band W3-1318SA 8 Ohm loudspeaker driver

    Tang Band W3-1318SA 8 Ohm

    3" | 15W RMS | Fs 100Hz | Qts 0.31 | Xmax 0.4mm

    View specs
  36. Tang Band W3-1319SA 8 Ohm loudspeaker driver

    Tang Band W3-1319SA 8 Ohm

    3" | 12W RMS | Fs 110Hz | Qts 0.55 | Xmax 0.5mm

    View specs
  37. Tang Band W3-1335SB 8 Ohm loudspeaker driver

    Tang Band W3-1335SB 8 Ohm

    3" | 15W RMS | Fs 100Hz | Qts 0.34 | Xmax 0.5mm

    View specs
  38. Tang Band W3-1364SA 8 Ohm loudspeaker driver

    Tang Band W3-1364SA 8 Ohm

    3" | 12W RMS | Fs 105Hz | Qts 0.59 | Xmax 0.5mm

    View specs
  39. Tang Band W3-1401SD 8 Ohm loudspeaker driver

    Tang Band W3-1401SD 8 Ohm

    3" | 30W RMS | Fs 75Hz | Qts 0.31 | Xmax 3.5mm

    View specs
  40. Tang Band W3-1750SB 8 Ohm loudspeaker driver

    Tang Band W3-1750SB 8 Ohm

    3" | 20W RMS | Fs 50Hz | Qts 0.37 | Xmax 5.0mm

    View specs
  41. Tang Band W3-1797S 4 Ohm loudspeaker driver

    Tang Band W3-1797S 4 Ohm

    3" | 15W RMS | Fs 90Hz | Qts 0.35 | Xmax 1.0mm

    View specs
  42. Tang Band W3-1876S 3.6 Ohm loudspeaker driver

    Tang Band W3-1876S 3.6 Ohm

    3" | 15W RMS | Fs 55Hz | Qts 0.43 | Xmax 4.0mm

    View specs
  43. Tang Band W3-1876S 4 Ohm loudspeaker driver

    Tang Band W3-1876S 4 Ohm

    3" | 15W RMS | Fs 55Hz | Qts 0.43 | Xmax 4.0mm

    View specs
  44. Tang Band W3-1878 8 Ohm loudspeaker driver

    Tang Band W3-1878 8 Ohm

    3" | 12W RMS | Fs 75Hz | Qts 0.28 | Xmax 4.0mm

    View specs
  45. Tang Band W3-2052S 3.9 Ohm loudspeaker driver

    Tang Band W3-2052S 3.9 Ohm

    3" | 15W RMS | Fs 50Hz | Qts 0.34 | Xmax 5.0mm

    View specs
  46. Tang Band W3-2052S 4 Ohm loudspeaker driver

    Tang Band W3-2052S 4 Ohm

    3" | 15W RMS | Fs 50Hz | Qts 0.34 | Xmax 5.0mm

    View specs
  47. Tang Band W3-2088S0F 4 Ohm loudspeaker driver

    Tang Band W3-2088S0F 4 Ohm

    3" | 25W RMS | Fs 45Hz | Qts 0.48 | Xmax 7.0mm

    View specs
  48. Tang Band W3-2108 4 Ohm loudspeaker driver

    Tang Band W3-2108 4 Ohm

    3" | 25W RMS | Fs 45Hz | Qts 0.46 | Xmax 7.0mm

    View specs
